Removal And Installation: Notes

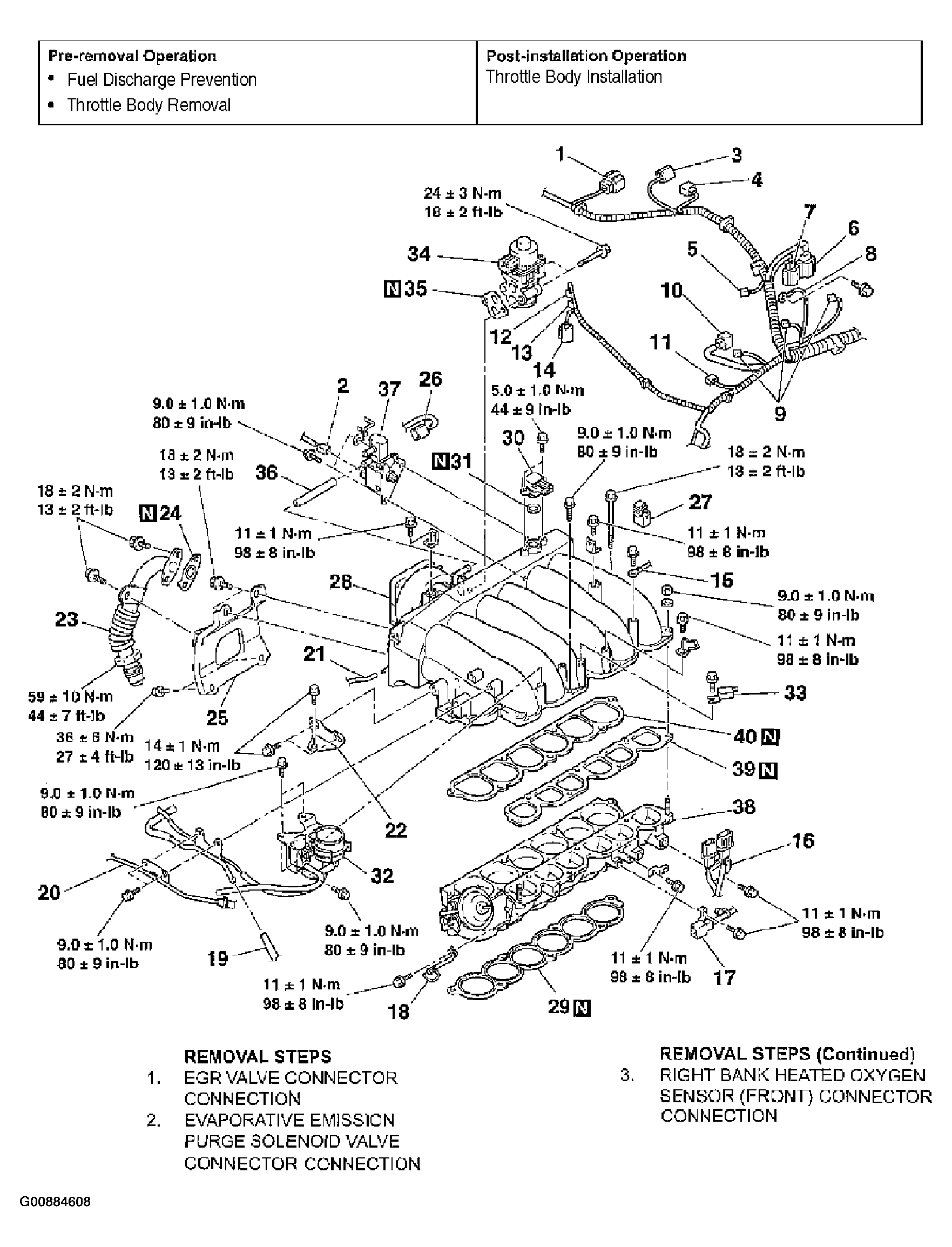

Fig 1: Identifying Intake Manifold Component (1 Of 3)
G00884608Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

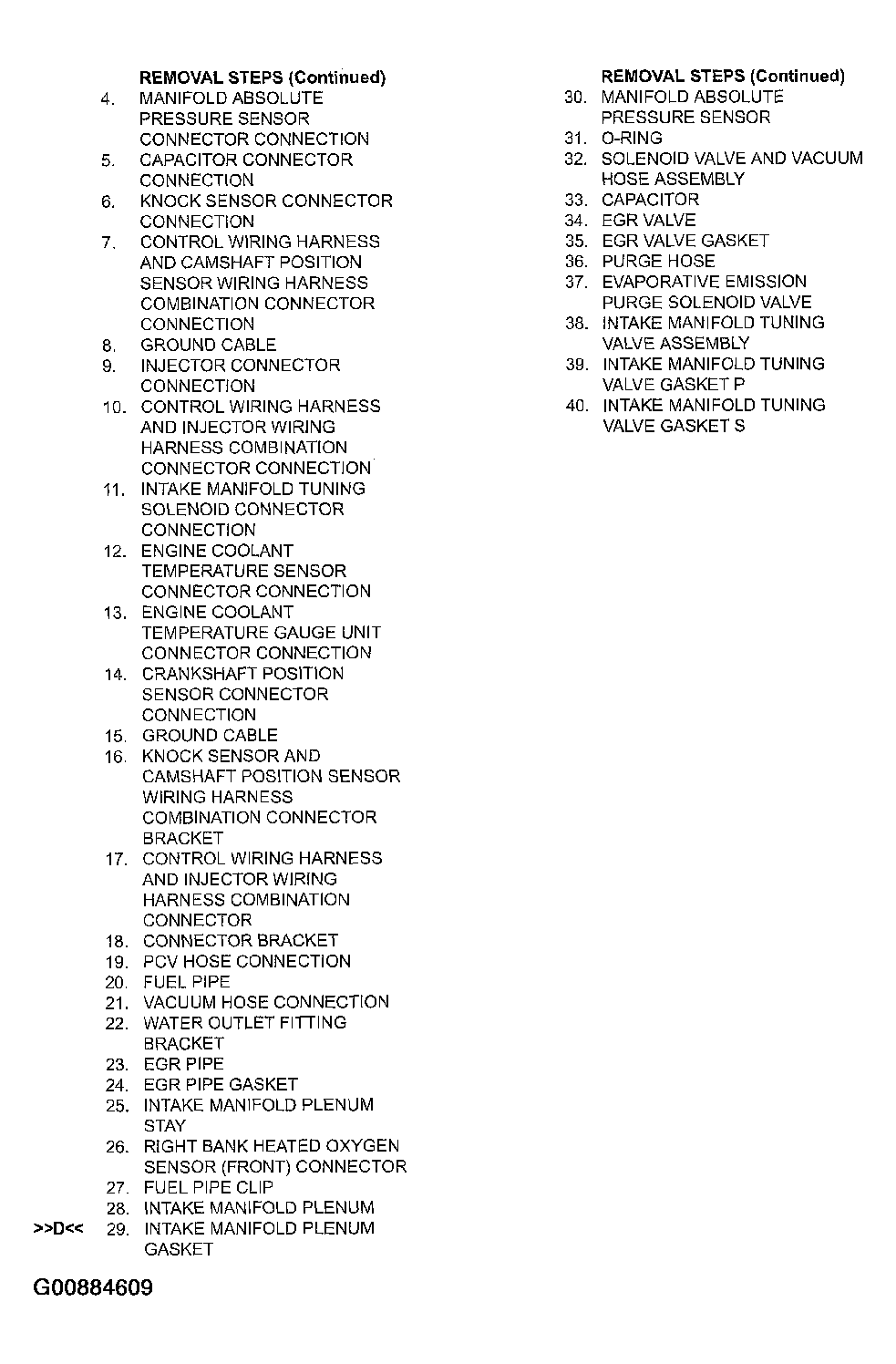

Fig 2: Identifying Intake Manifold Component (2 Of 3)
G00884609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

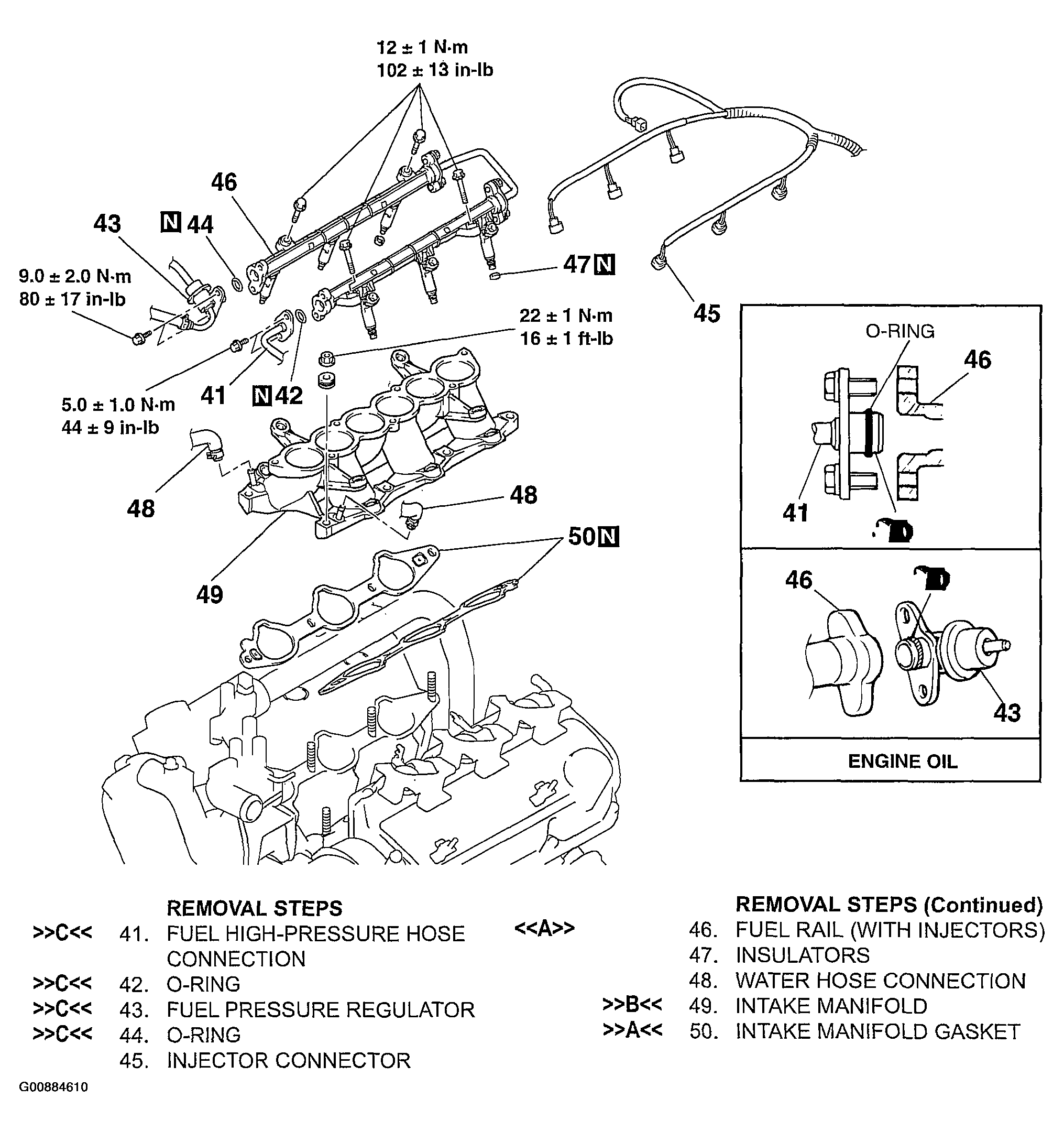

Fig 3: Identifying Intake Manifold Component (3 Of 3)
G00884610Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
