Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel >> Instrument Panel Assembly >> Disassembly And Assembly

Disassembly And Assembly

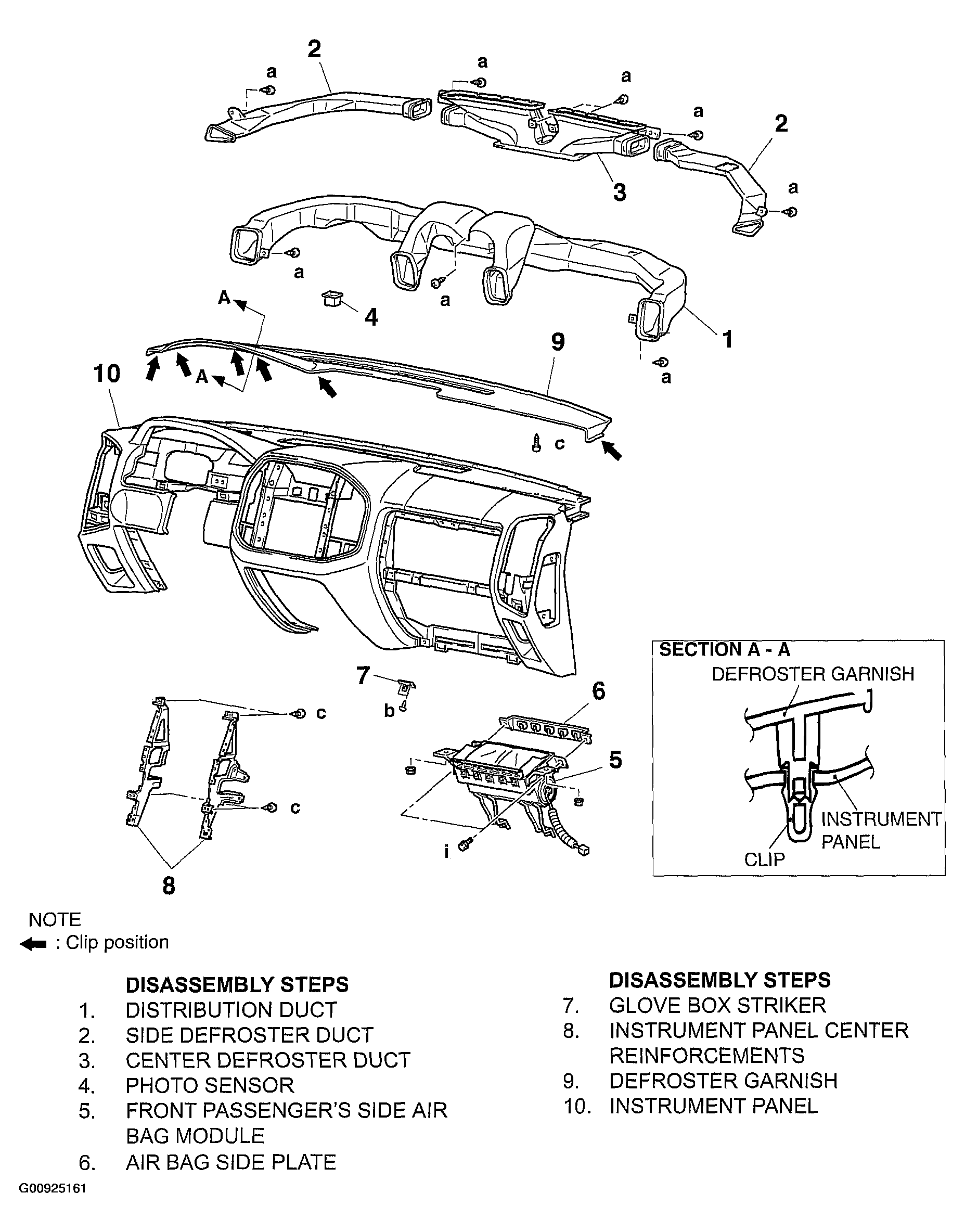

Fig 1: Disassembling And Assembling Instrument Panel

G00925161

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
