Removal And Installation: Notes

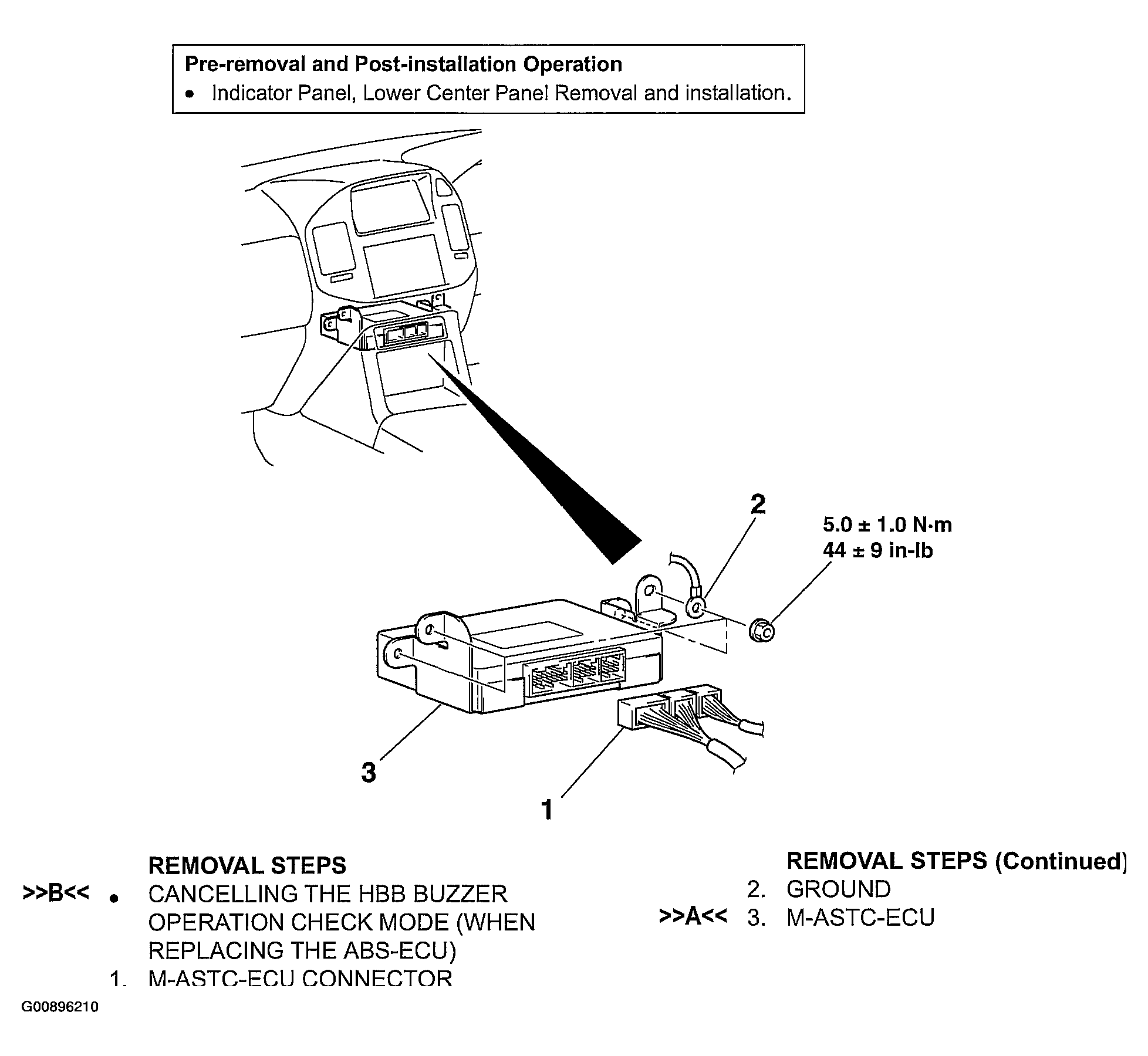

Fig 1: Identifying M-ASTC Control Unit

G00896210

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
