Transfer Switch Circuit

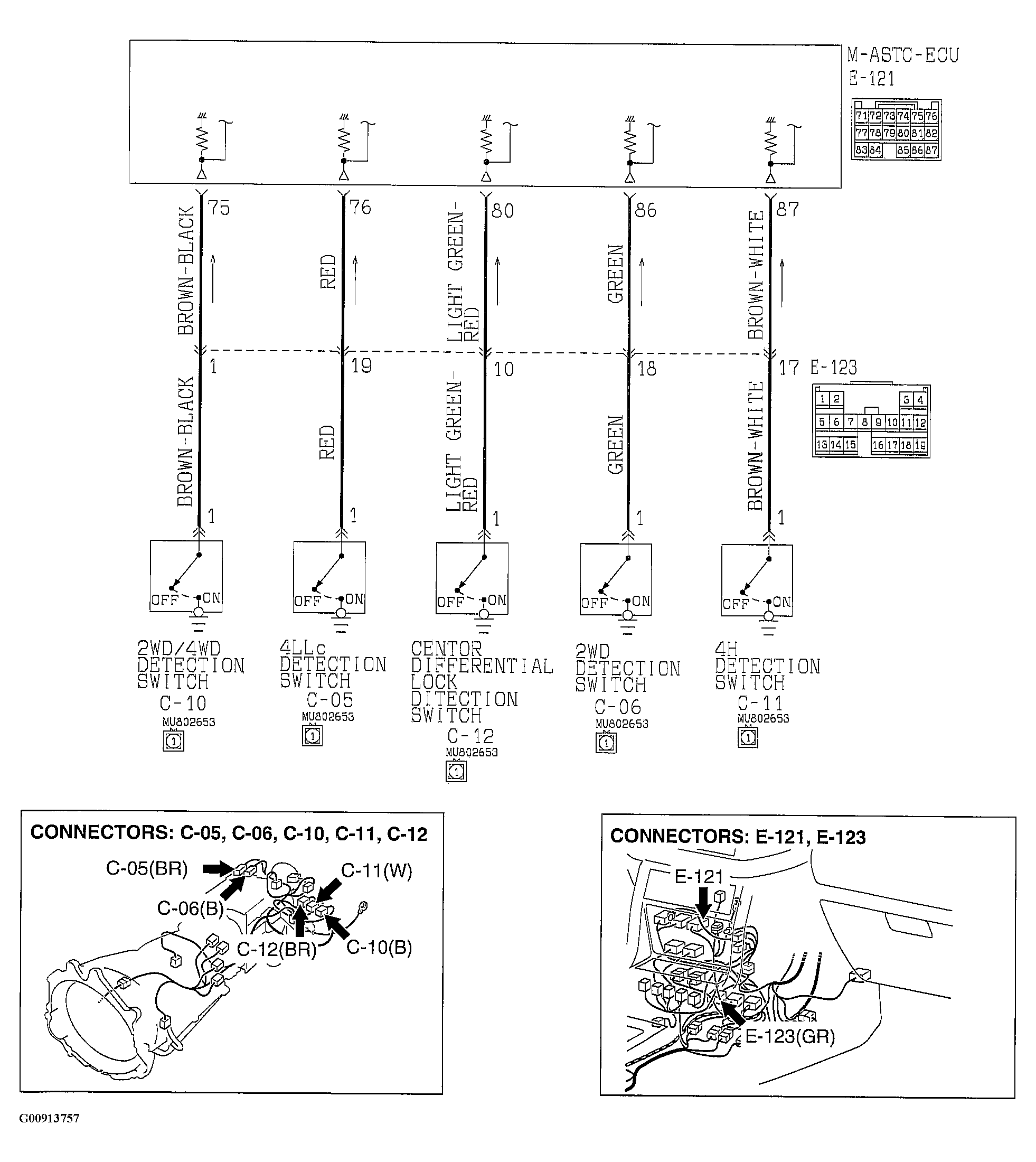

Fig 1: Transfer Switch Circuit
G00913757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
