Removal And Installation: Notes

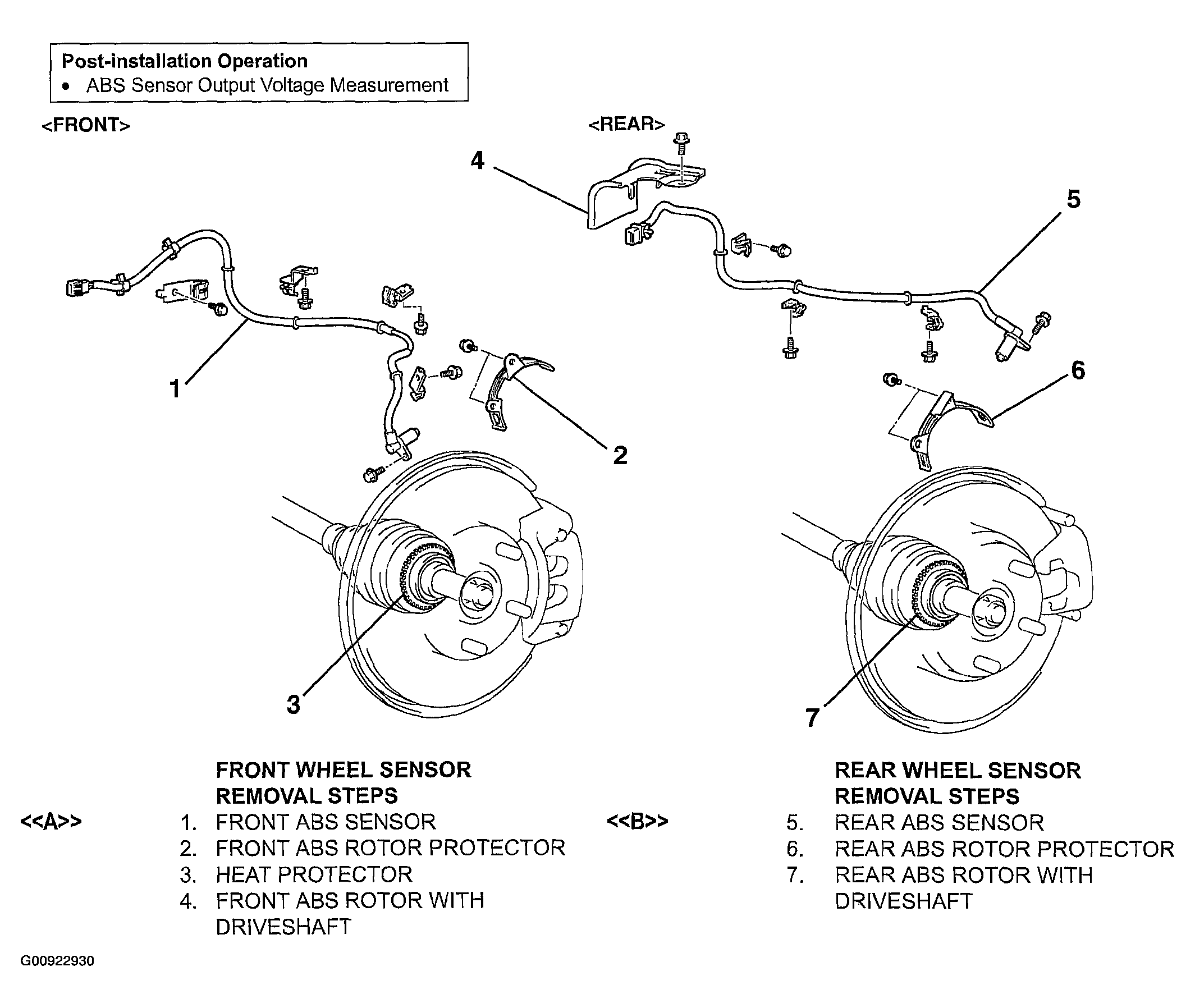

Fig 1: Removal And Installation Of Wheel Speed Sensors
G00922930Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The front and rear ABS rotors are integrated with the drive shaft and cannot be disassembled.
