Stoplight Switch Circuit

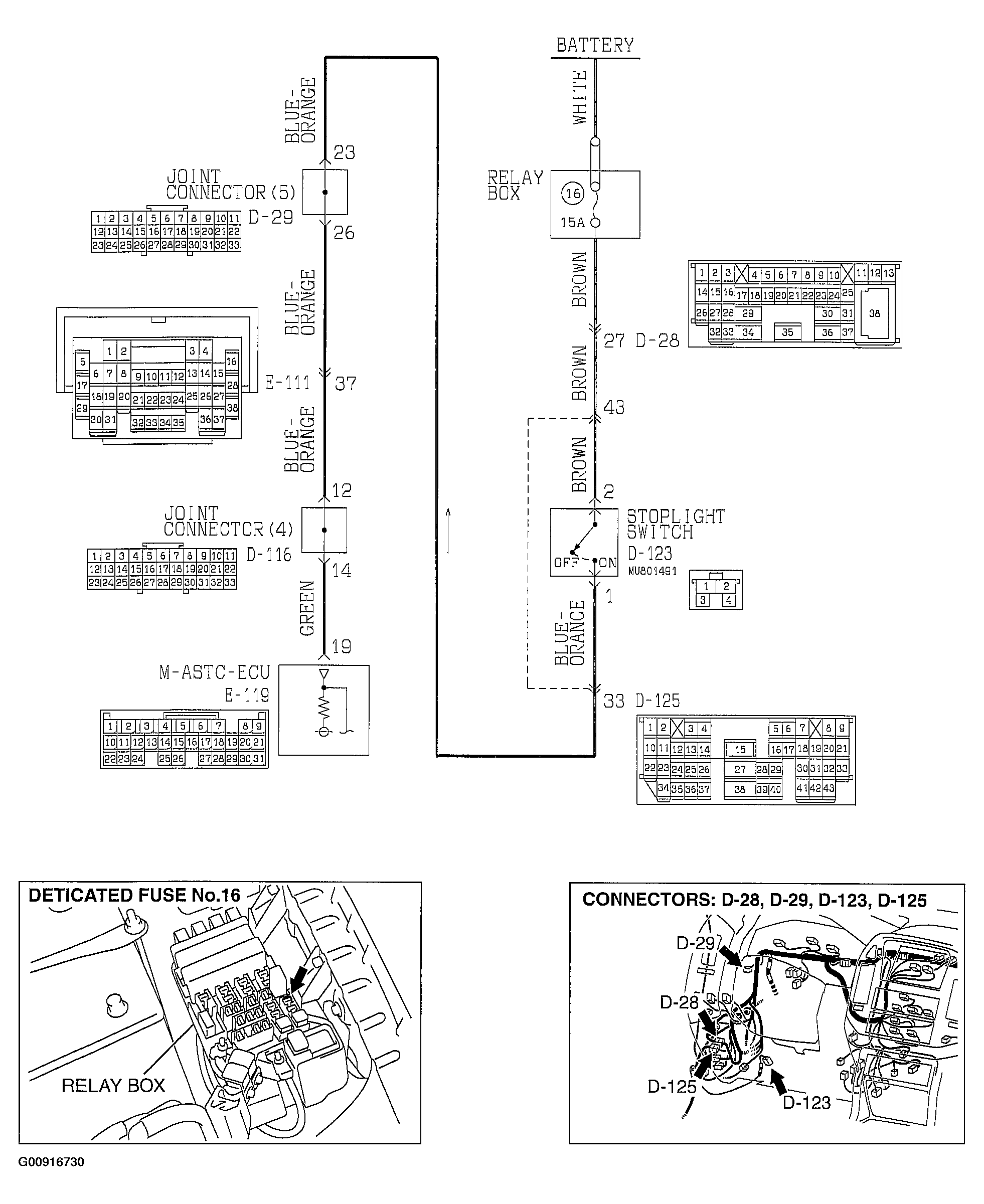

Fig 1: Stop Light Switch Circuit
G00916730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

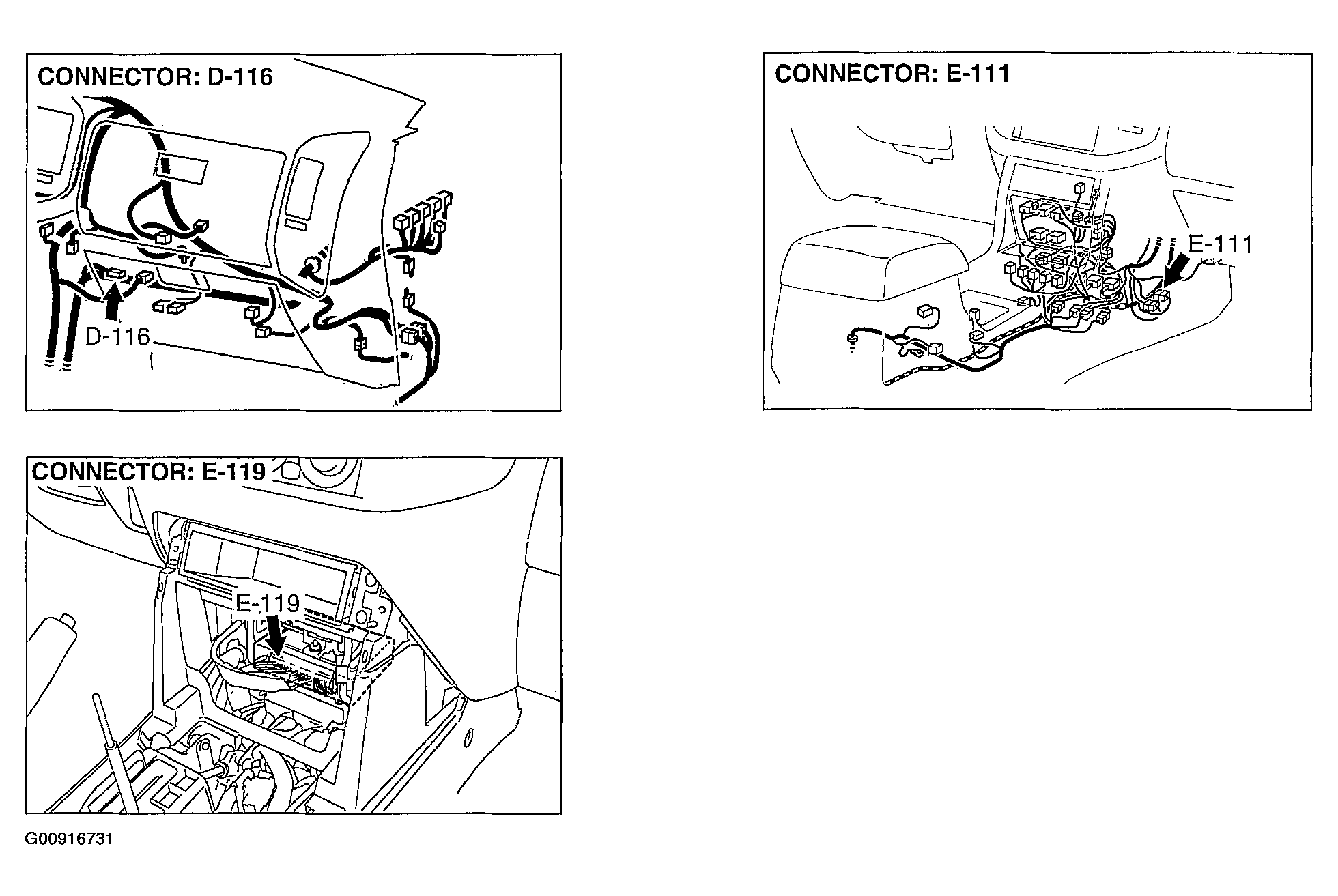

Fig 2: Identifying Connectors
G00916731Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
