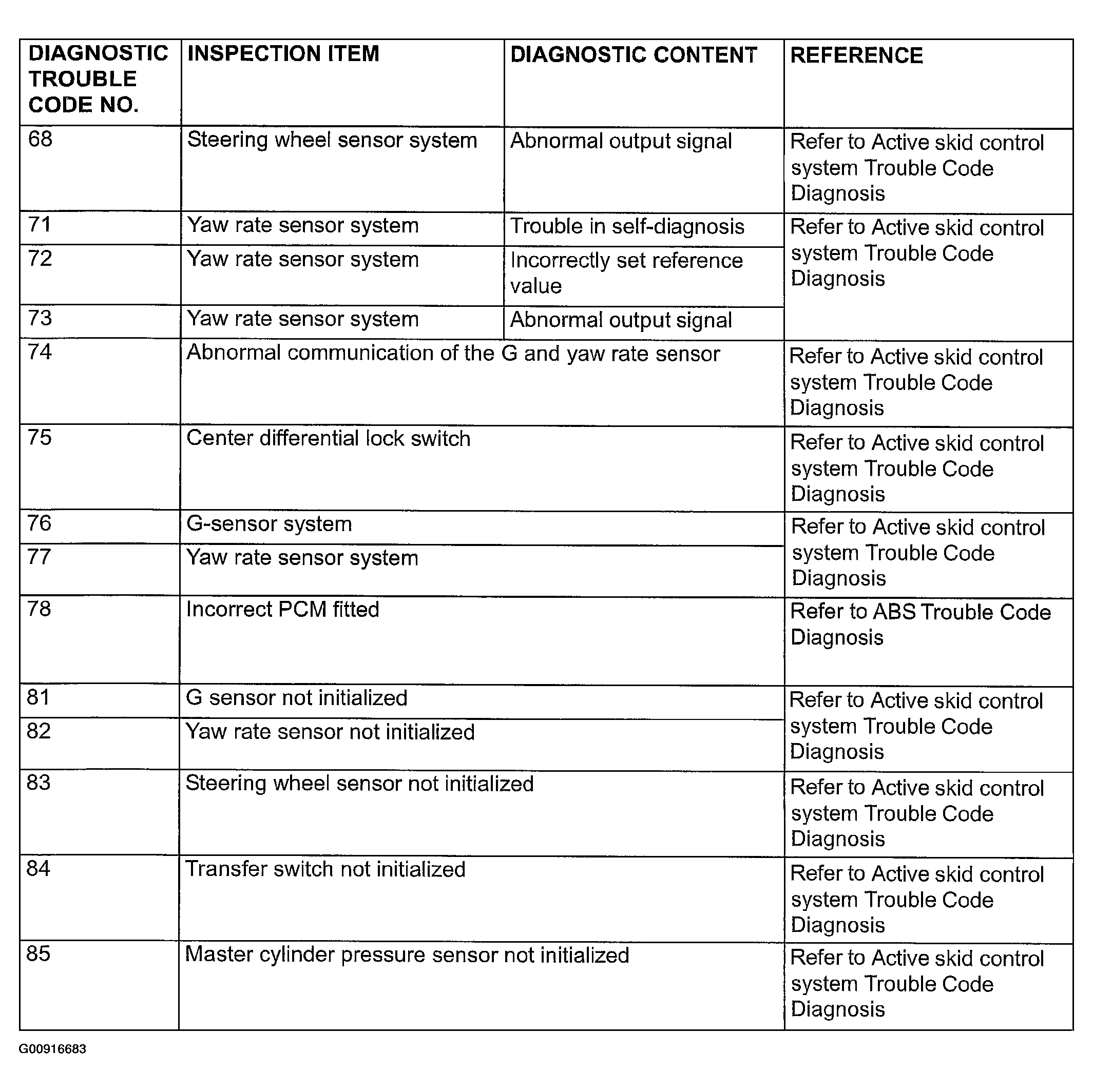

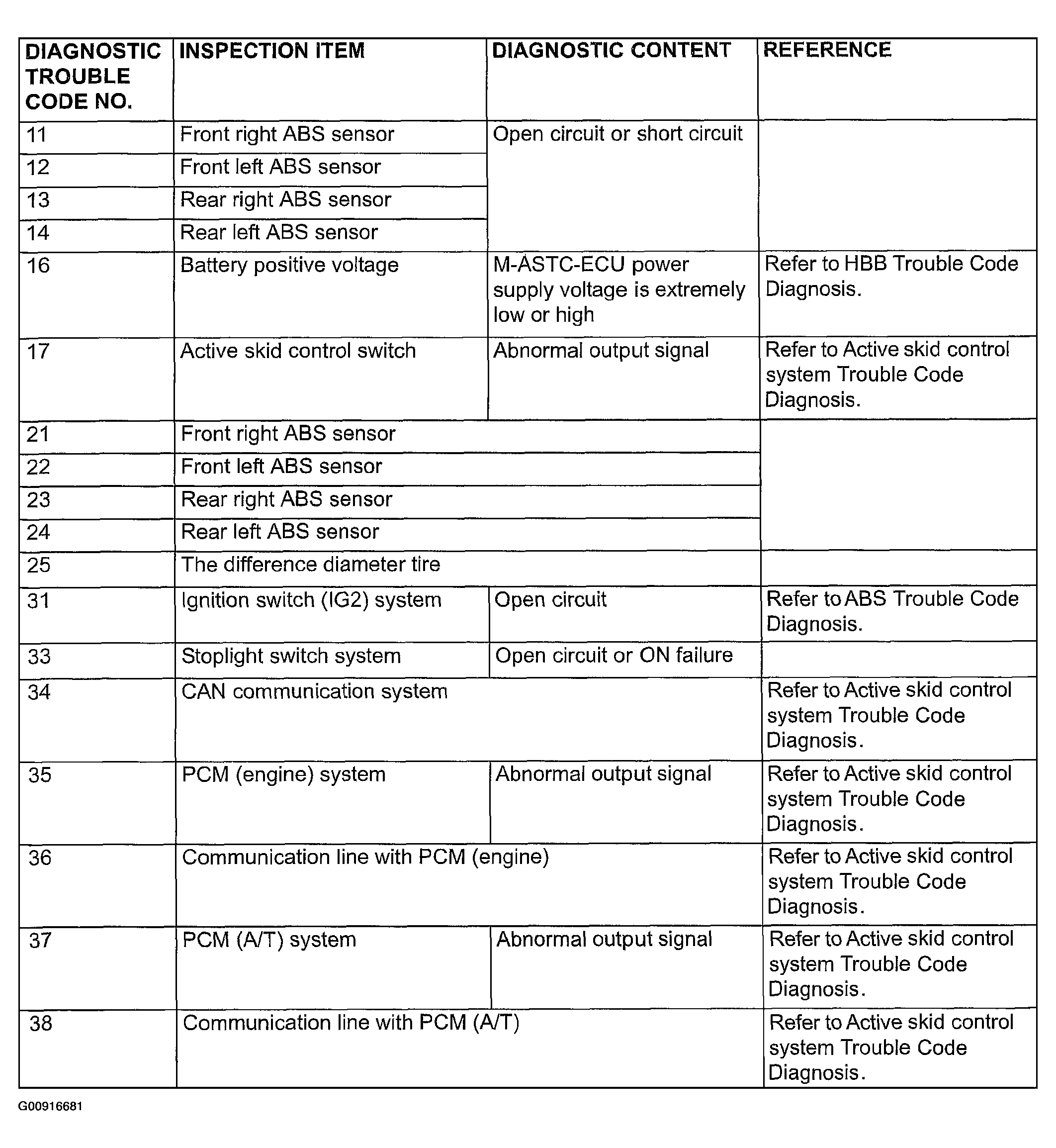

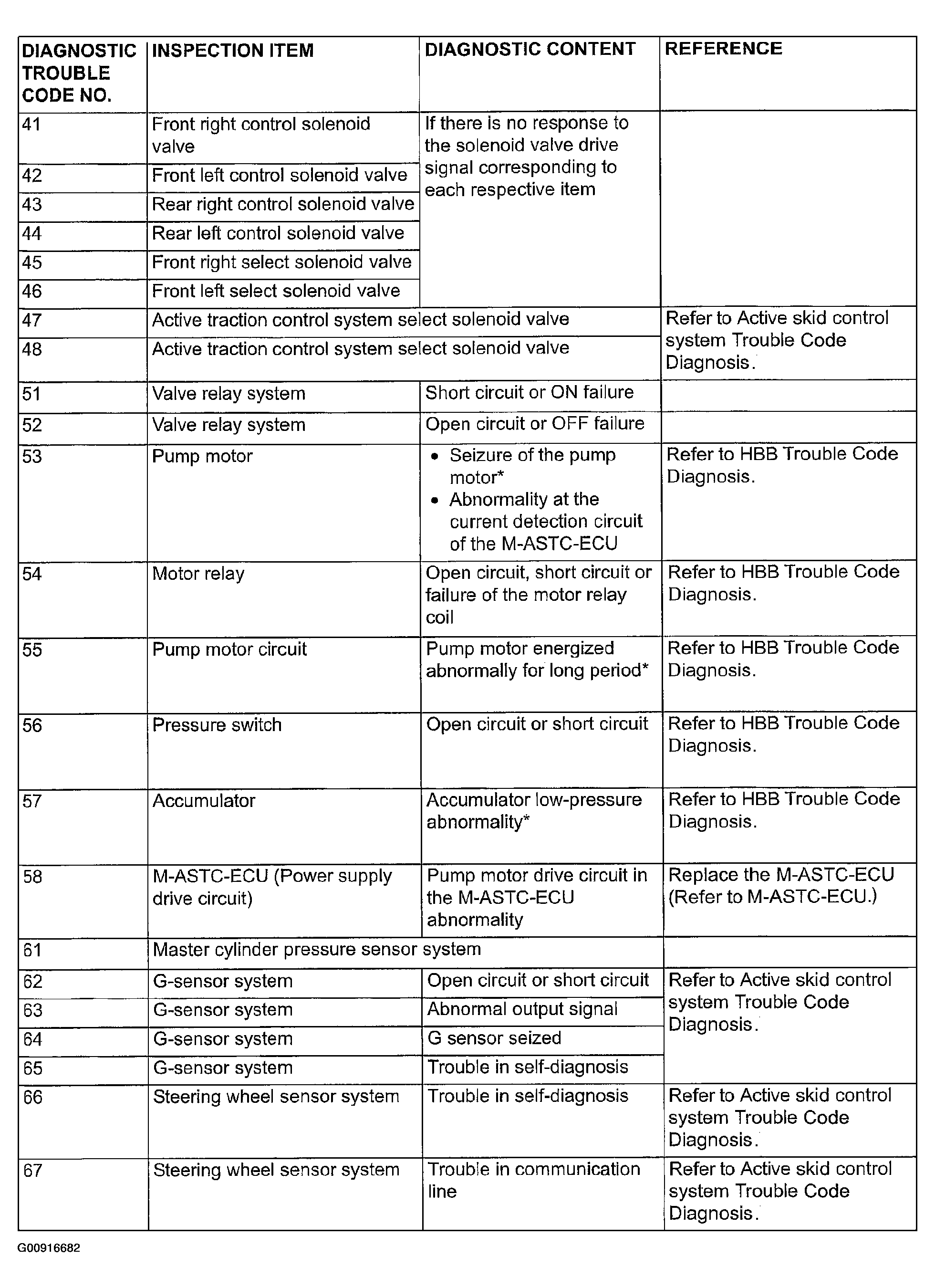

Diagnostic Trouble Code Chart
Follow the inspection chart that is appropriate for the diagnostic trouble code.
NOTE:
If the trouble marked by * has occurred, the M-ASTC-ECU sounds the buzzer continuously to inform the trouble of the driver and protects the pump motor by activating the pump motor intermittently.
DTC INDEX
| DTC | Description |
|---|---|
| DTC 11, 12, 13, 14 | ABS Sensor (Open Circuit or Short Circuit) |
| DTC 21, 22, 23, 24 | ABS Sensor |
| DTC 25 | The Difference Diameter Tire |
| DTC 31 | Ignition switch (IG2) (Open Circuit) |
| DTC 33 | Stoplight Switch System |
| DTC 41, 42, 43, 44 | Control Solenoid Valve |
| DTC 45, 46 | Select Solenoid Valve |
| DTC 51 | Valve Relay System (Short Circuit or ON Failure) |
| DTC 52 | Valve Relay System (Open circuit or OFF Failure) |
| DTC 61 | Master Cylinder Pressure Sensor System |
