Removal Service Point: Inspection

Power seat manual switch continuity check

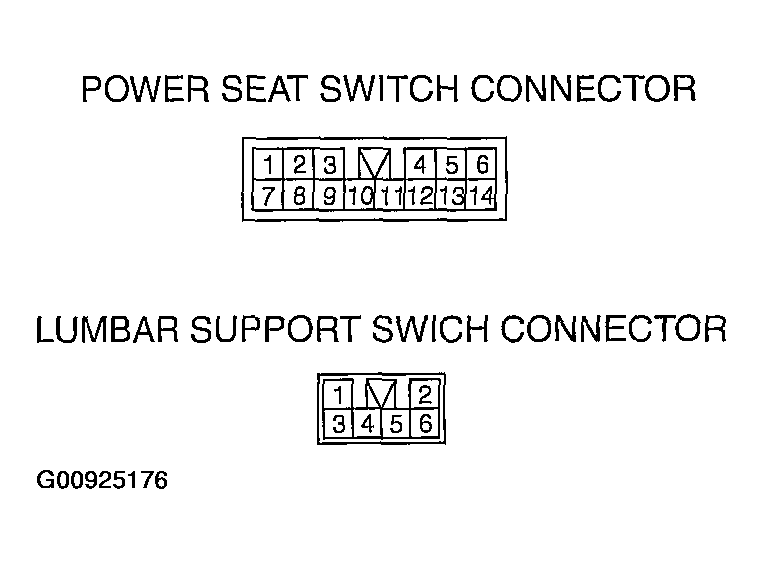

Fig 1: Identifying Power Seat Manual Switch Connectors Terminals
G00925176Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

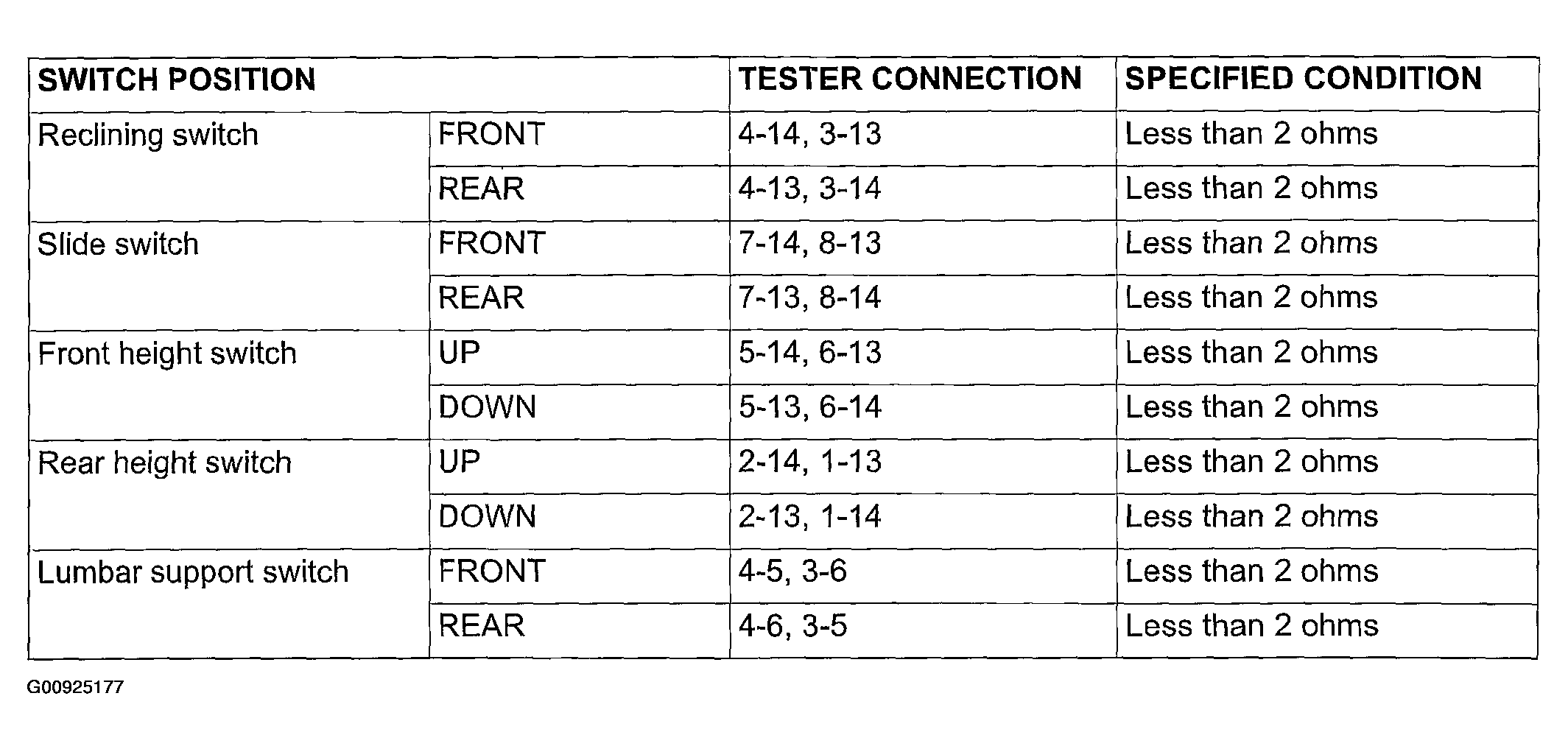

Fig 2: Power Seat Manual Switch Continuity Table
G00925177Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
