Front Seat Assembly
>>
Disassembly And Assembly
Disassembly And Assembly

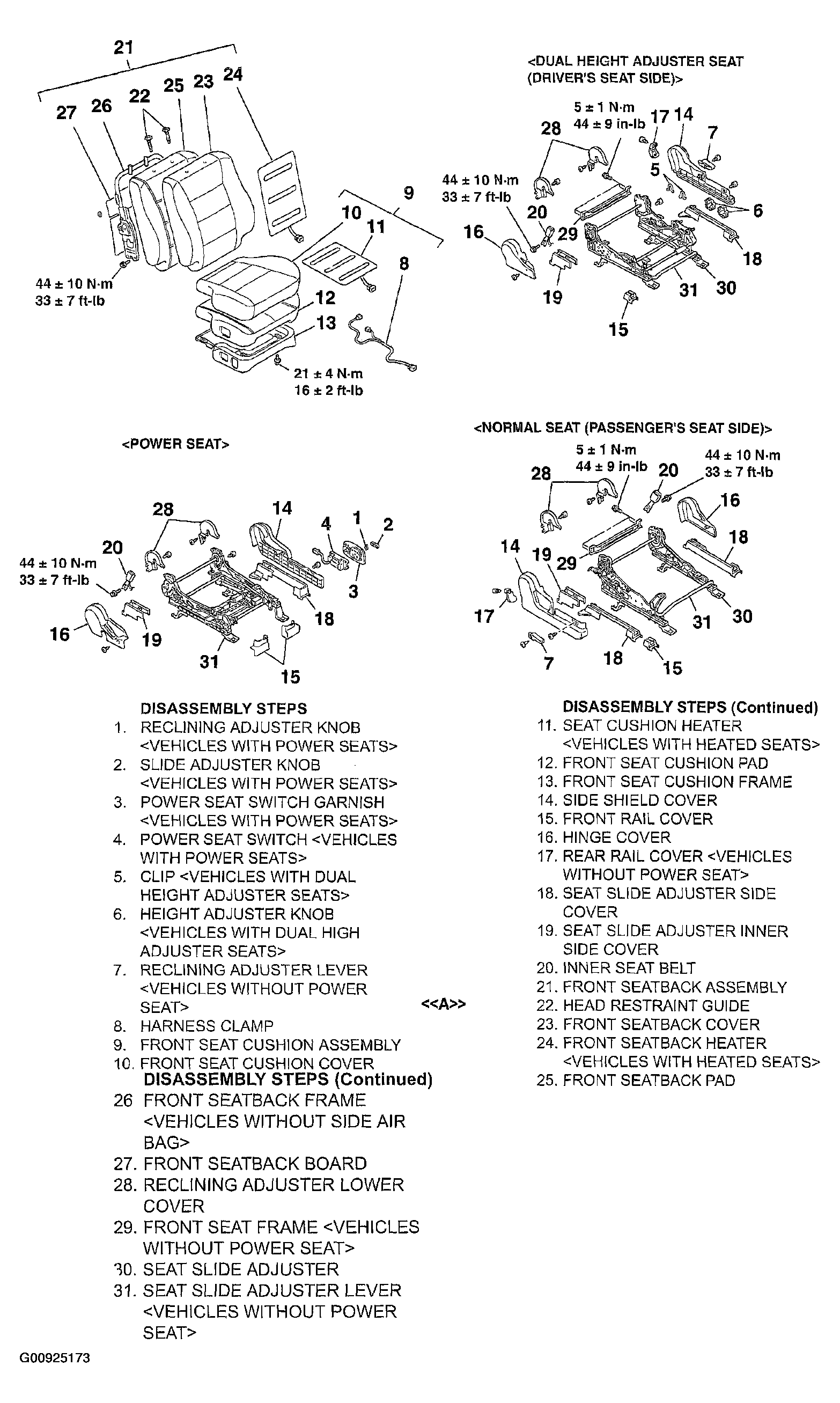

Fig 1: Disassembled View Of Front Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
