Transmission And Transfer Disassembly And Assembly: Notes

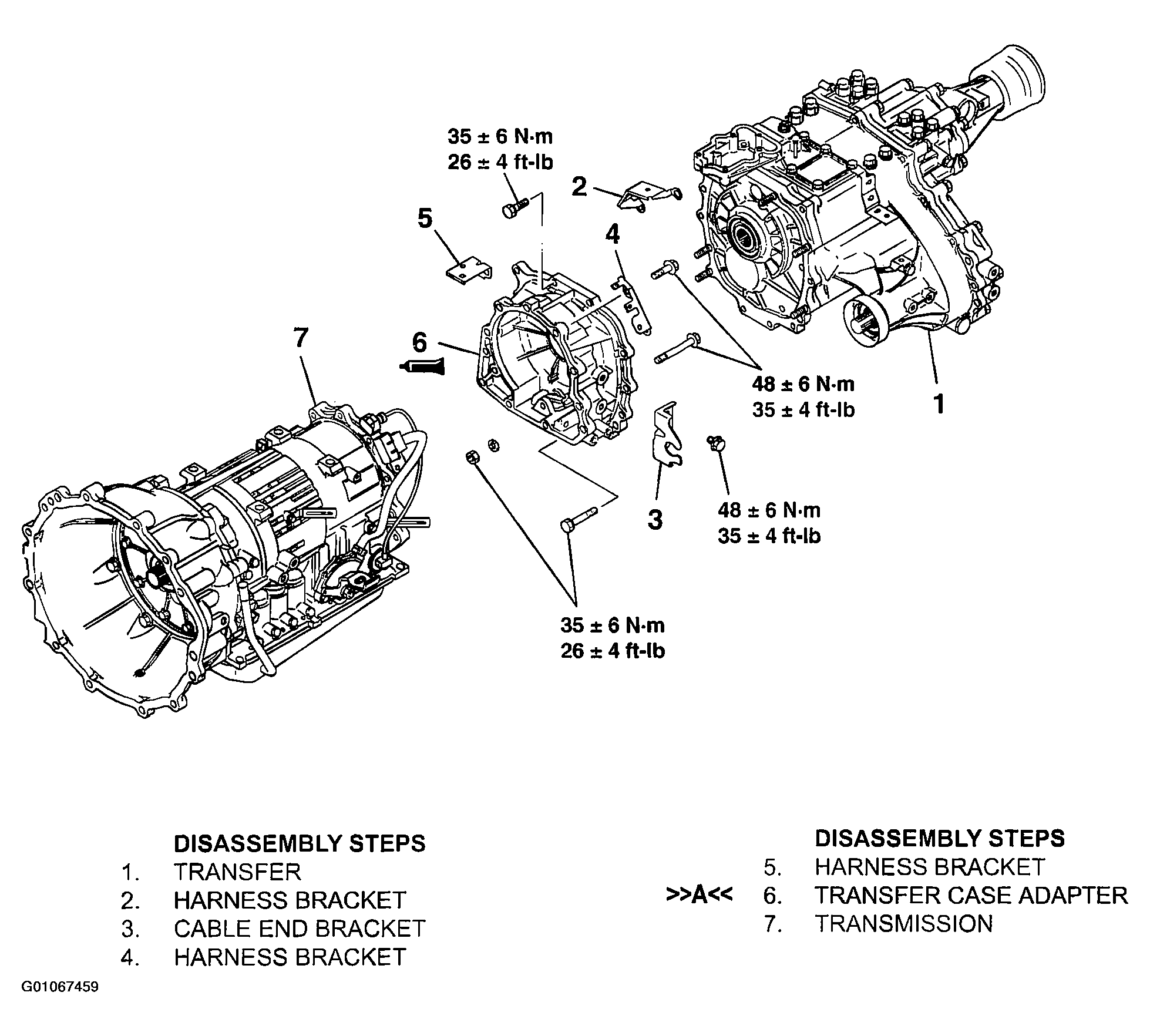

Fig 1: Disassembly And Assembly Of Transmission And Transfer

G01067459

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
