Transfer Switch, Lock Switch And Lock Rail Switch

Check for the continuity between the connector terminal and switch body.

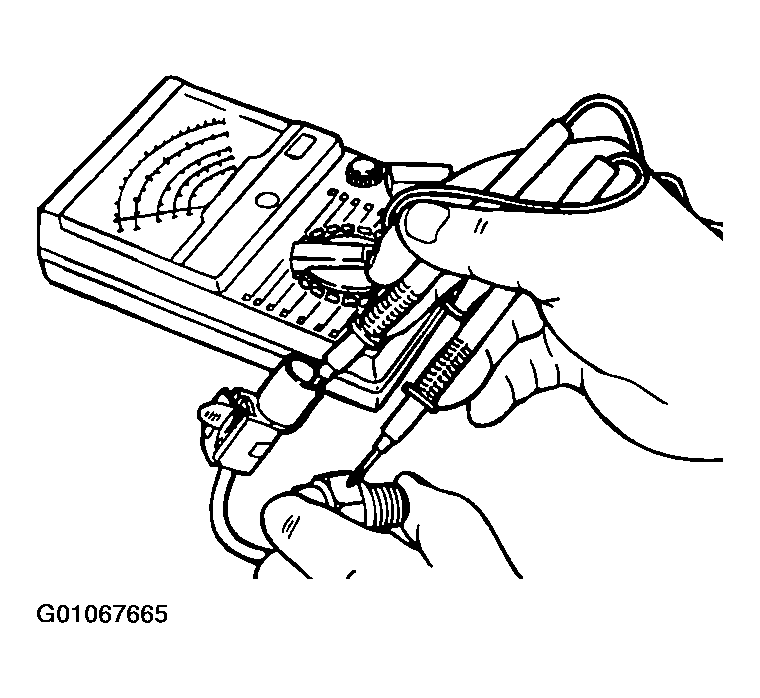

Fig 1: Checking Continuity Between Connector Terminal And Switch Body

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

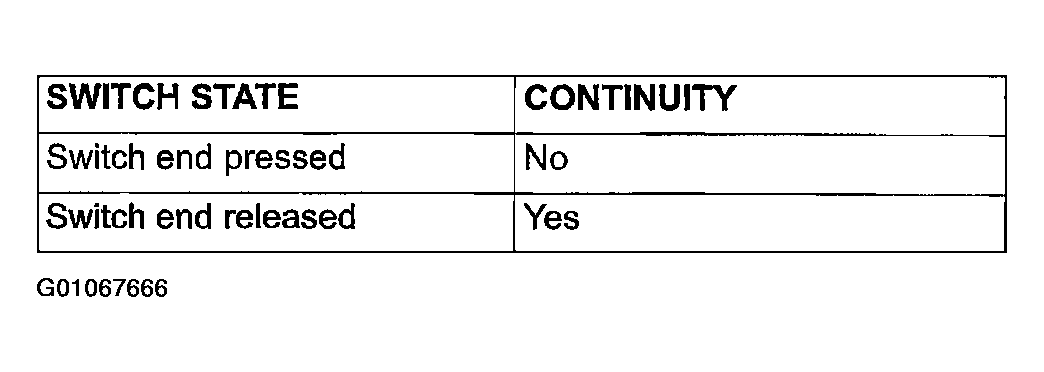

Fig 2: Switch State And Continuity Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
