>> U << Detection Switch Installation

Install with care. Do not make a mistake when locating each switch.

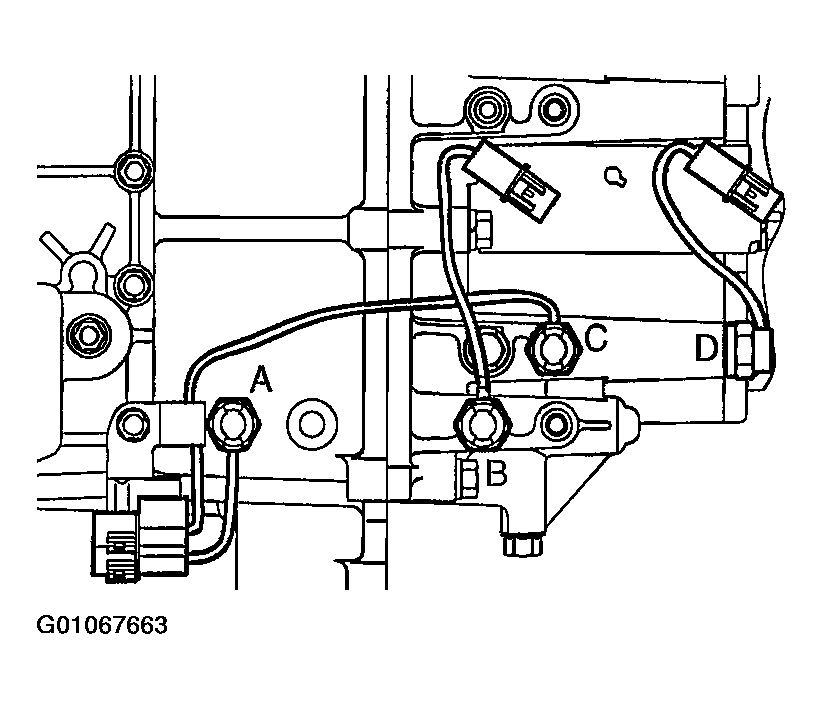

Fig 1: Installing Detection Switch
G01067663Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

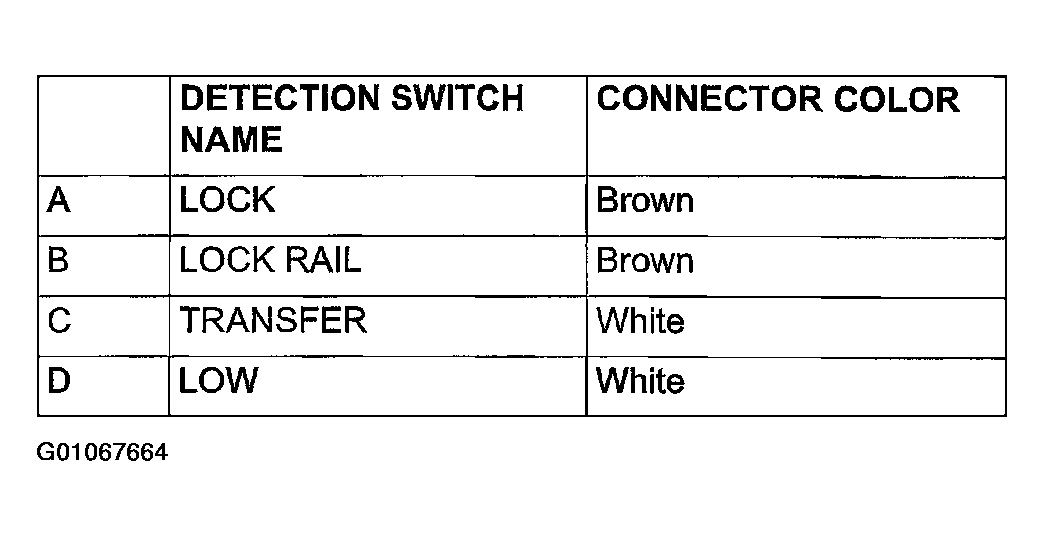

Fig 2: Detection Switch Name And Connector Color Chart
G01067664Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
