>> F << Spring Pin Installation

  1. Align the 2-4WD shift lug with the 2-4WD shift rail spring pin hole.
  2. Hammer in the spring valve so that the spring pin slit matches the center of the shift rail shaft.

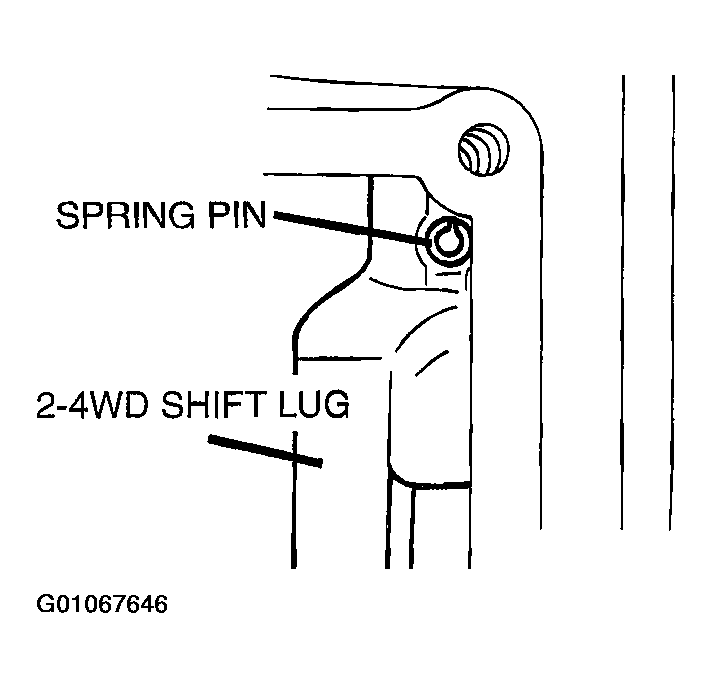

    Fig 1: Installing Spring Pin
    G01067646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
