Transfer Case Adapter Disassembly And Assembly: Notes

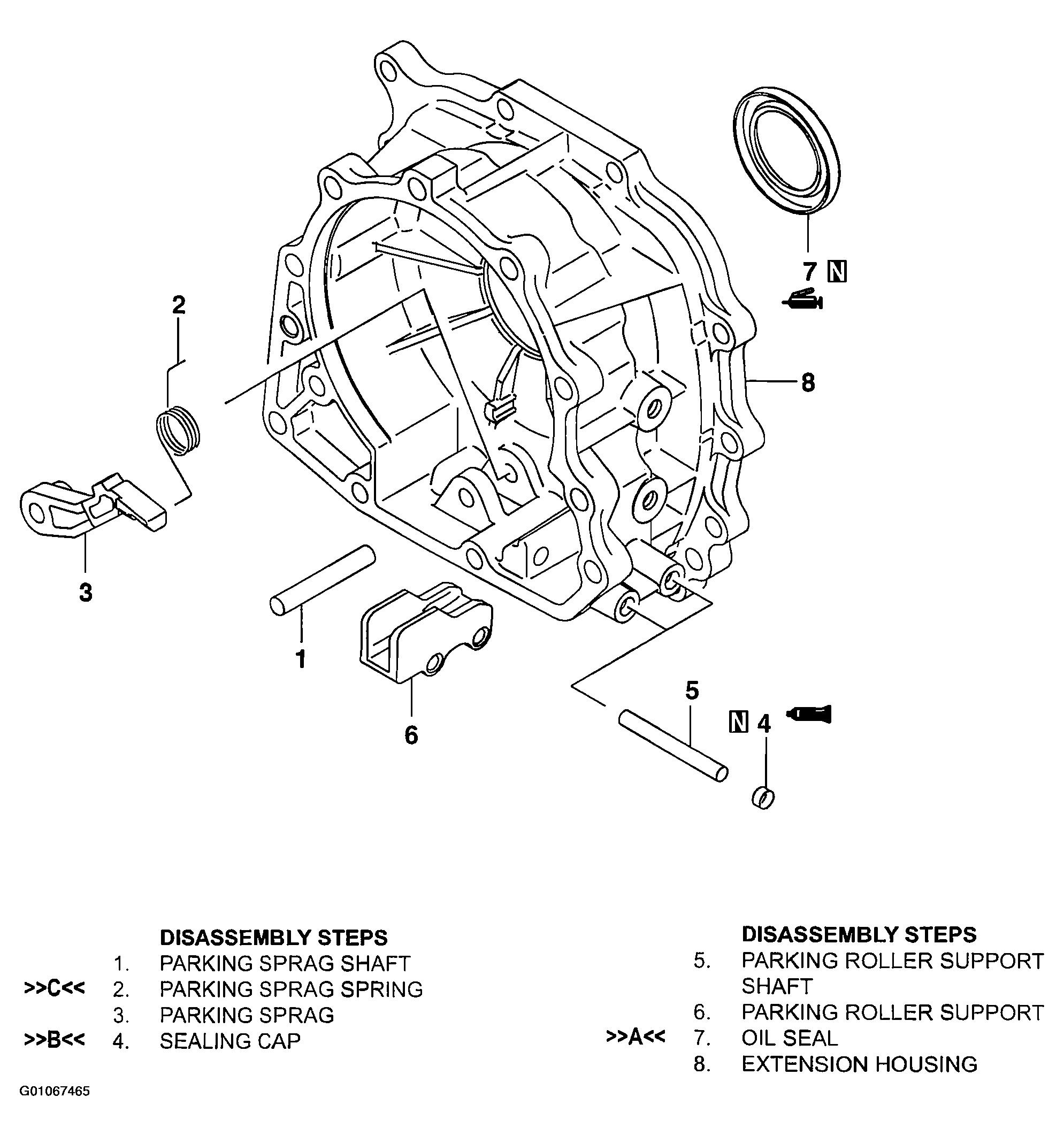

Fig 1: Disassembly And Assembly Of Transfer Case Adapter
G01067465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
