Valve Body Spring Identification

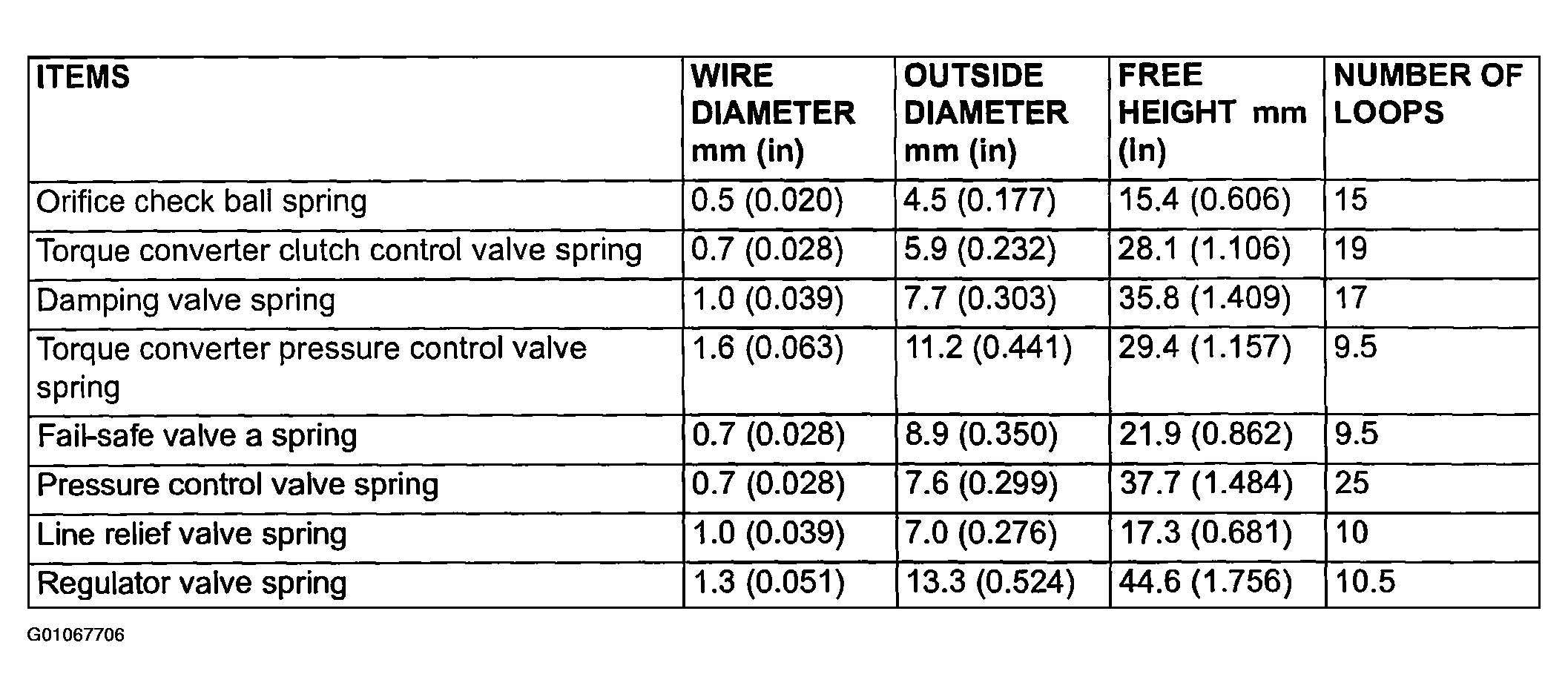

Fig 1: Valve Body Spring Identification Chart

G01067706

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
