Home >> Mitsubishi >> 2004 >> Montero Sport LS, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Special Tools >> Transfer

Special Tools: Transfer

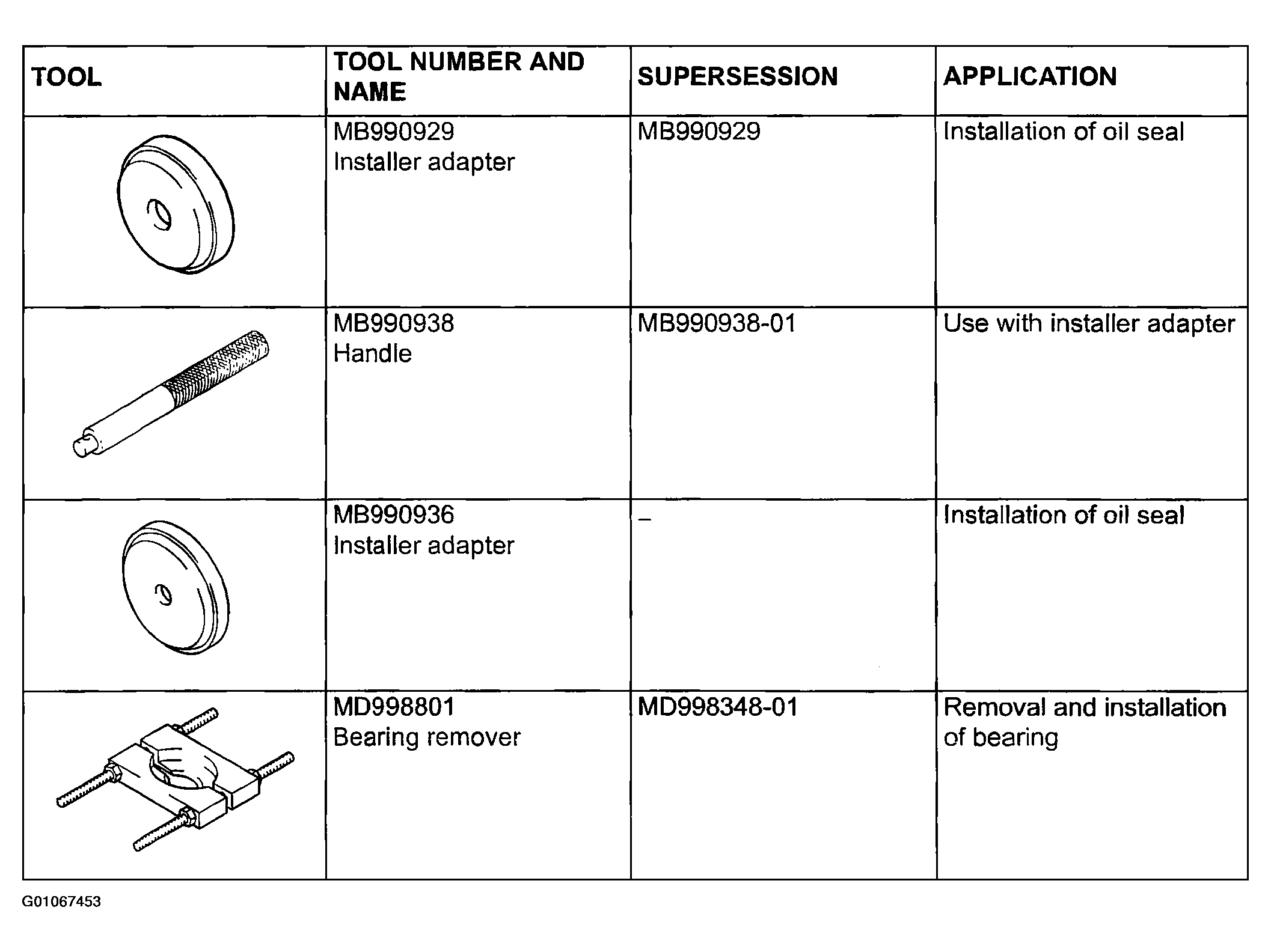

Fig 1: Transfer Special Tools Specifications (1 Of 3)
G01067453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

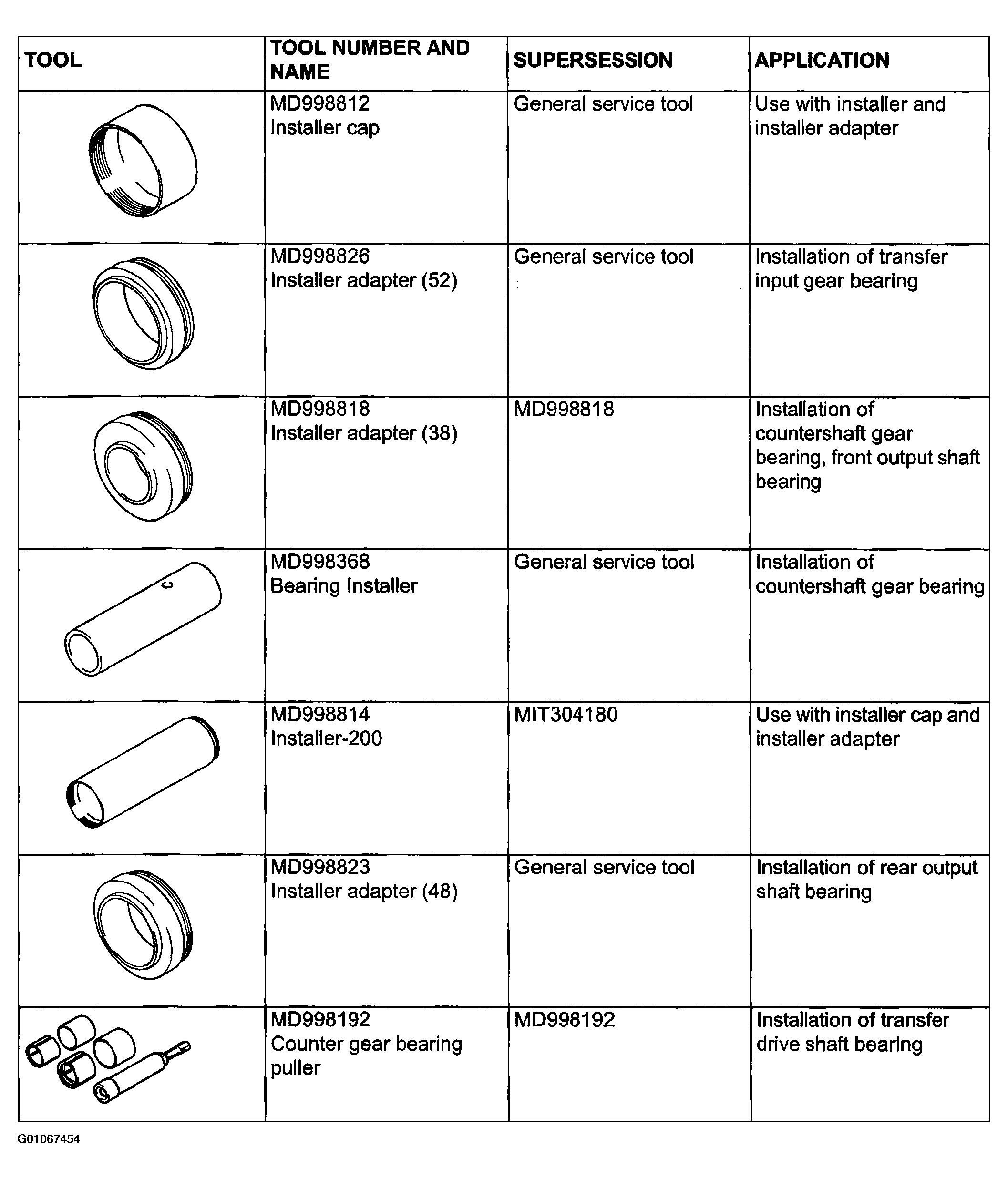

Fig 2: Transfer Special Tools Specifications (2 Of 3)
G01067454Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

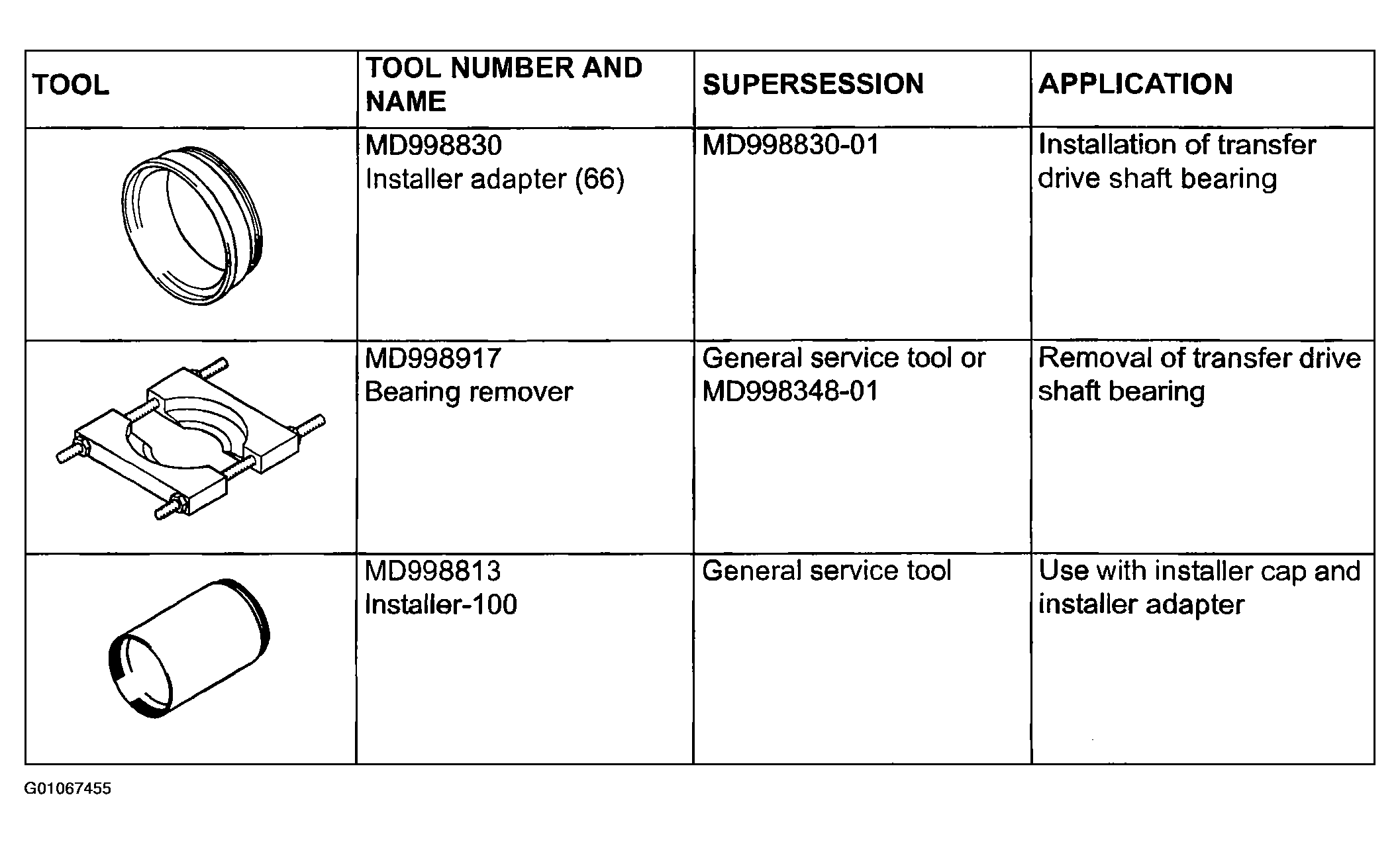

Fig 3: Transfer Special Tools Specifications (3 Of 3)
G01067455Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
