Hydraulic Control System

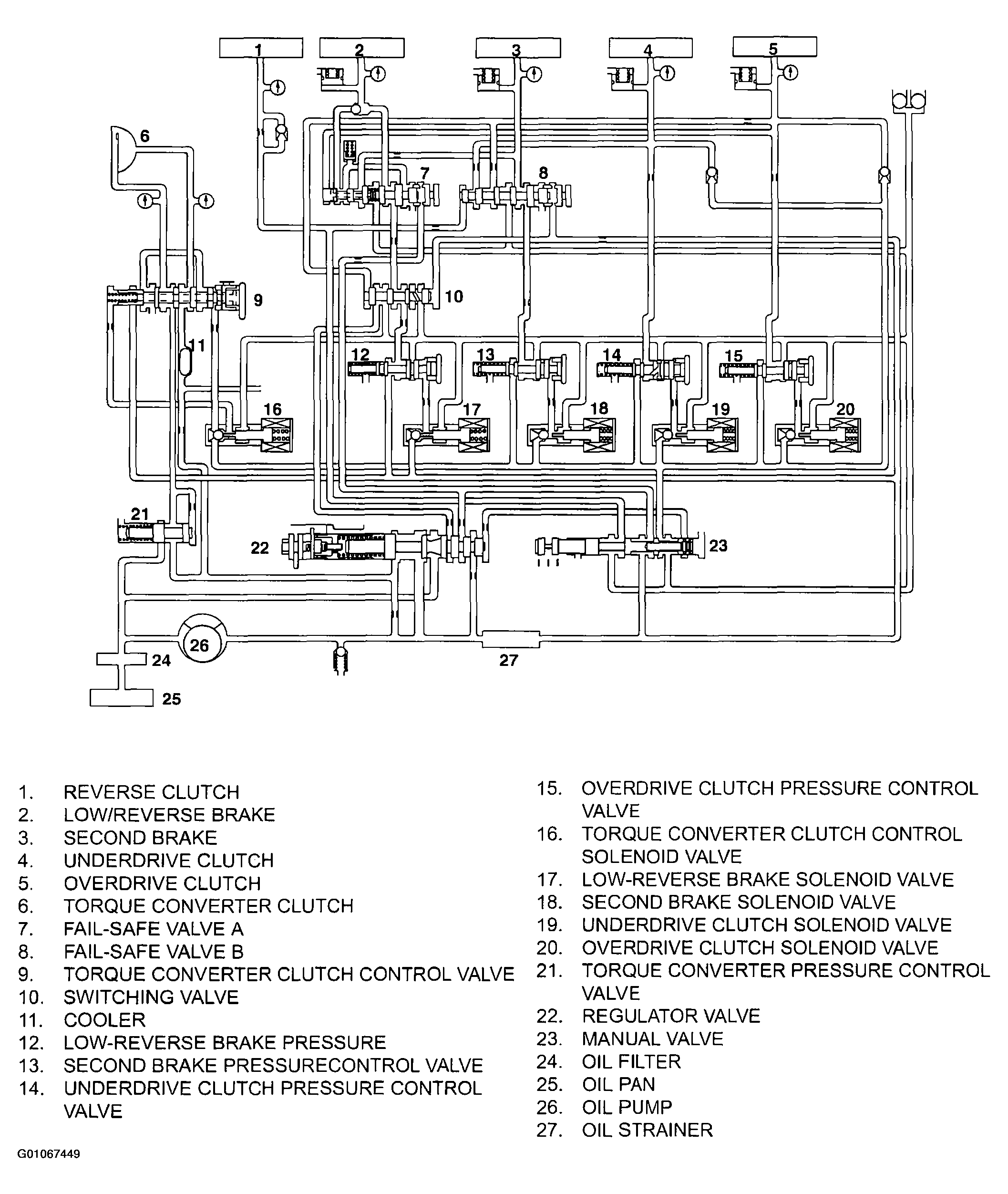

Fig 1: Automatic Transmission Hydraulic Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
