Home >> Mitsubishi >> 2004 >> Montero Sport LS, RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Center Support >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

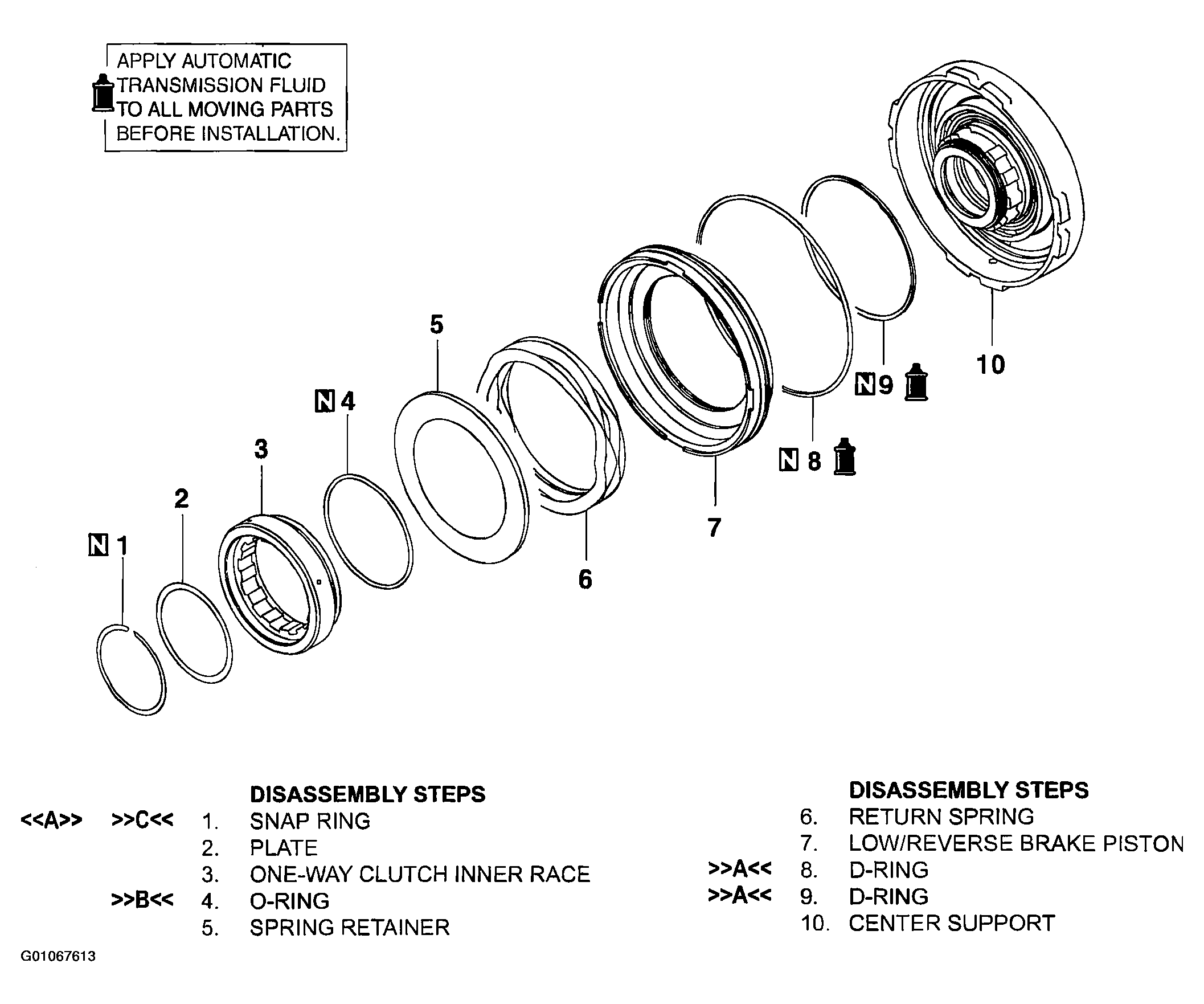

Fig 1: Disassembly And Assembly Of Center Support
G01067613Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
