Synchronize Ring And Synchronizer Cone

Combine the inner and outer synchronizer rings and cone with the drive sprocket and measure the dimension A limit, replace them as set.

limit: 0.3 mm (0.12 inch)

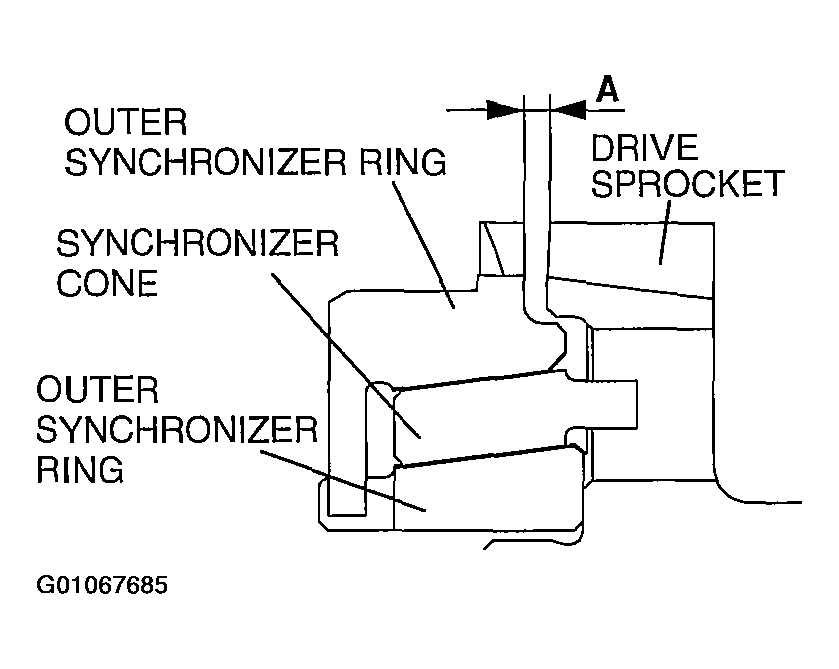

Fig 1: Inspecting Synchronize ring And Synchronizer Cone

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
