Disassembly And Assembly: Notes

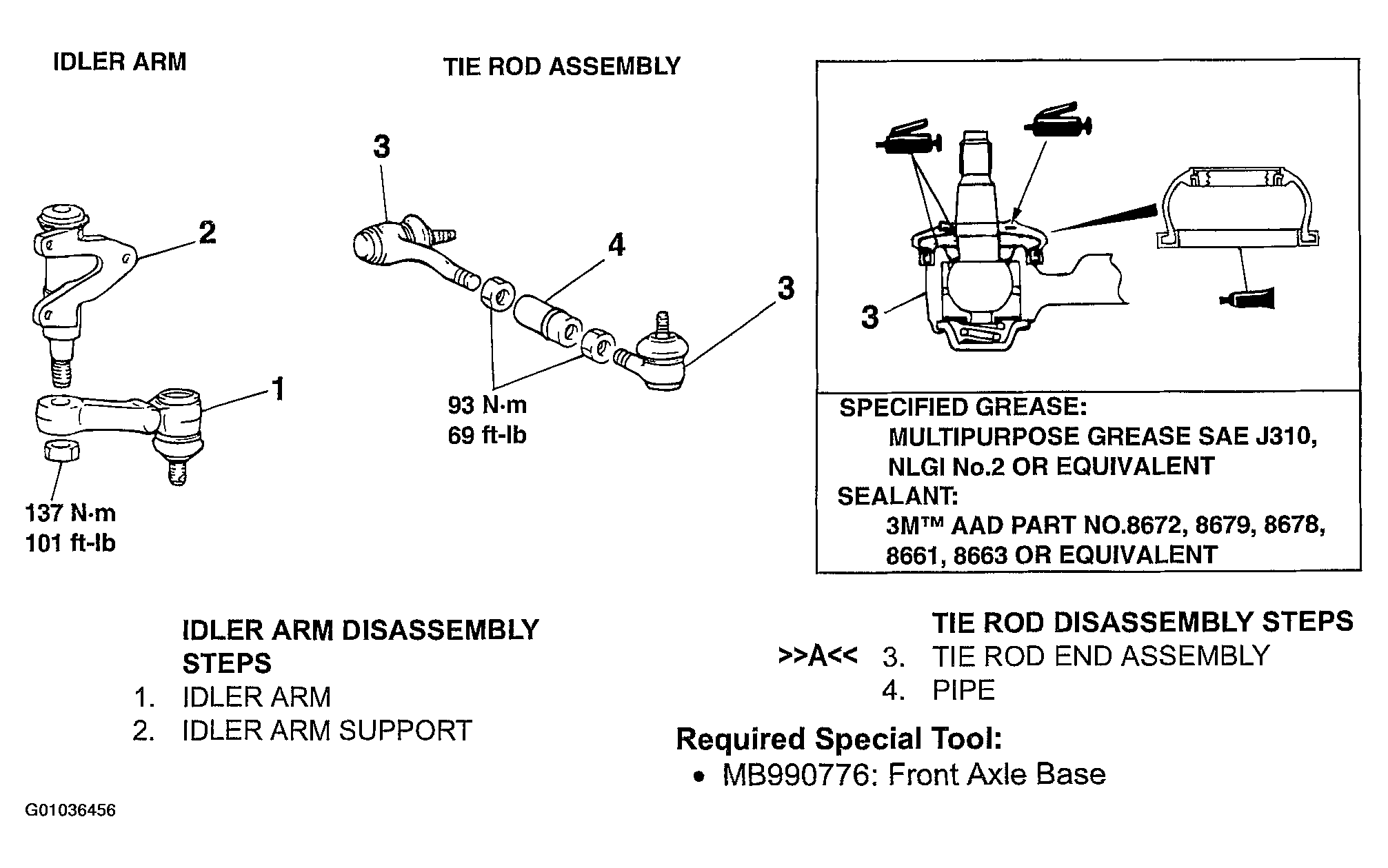

Fig 1: Disassembling Tie Rod Assembly

G01036456

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
