Notes
Disassembly And Assembly: Notes
CAUTION:
Do not disassemble the pressure switch assembly and valve subassembly.

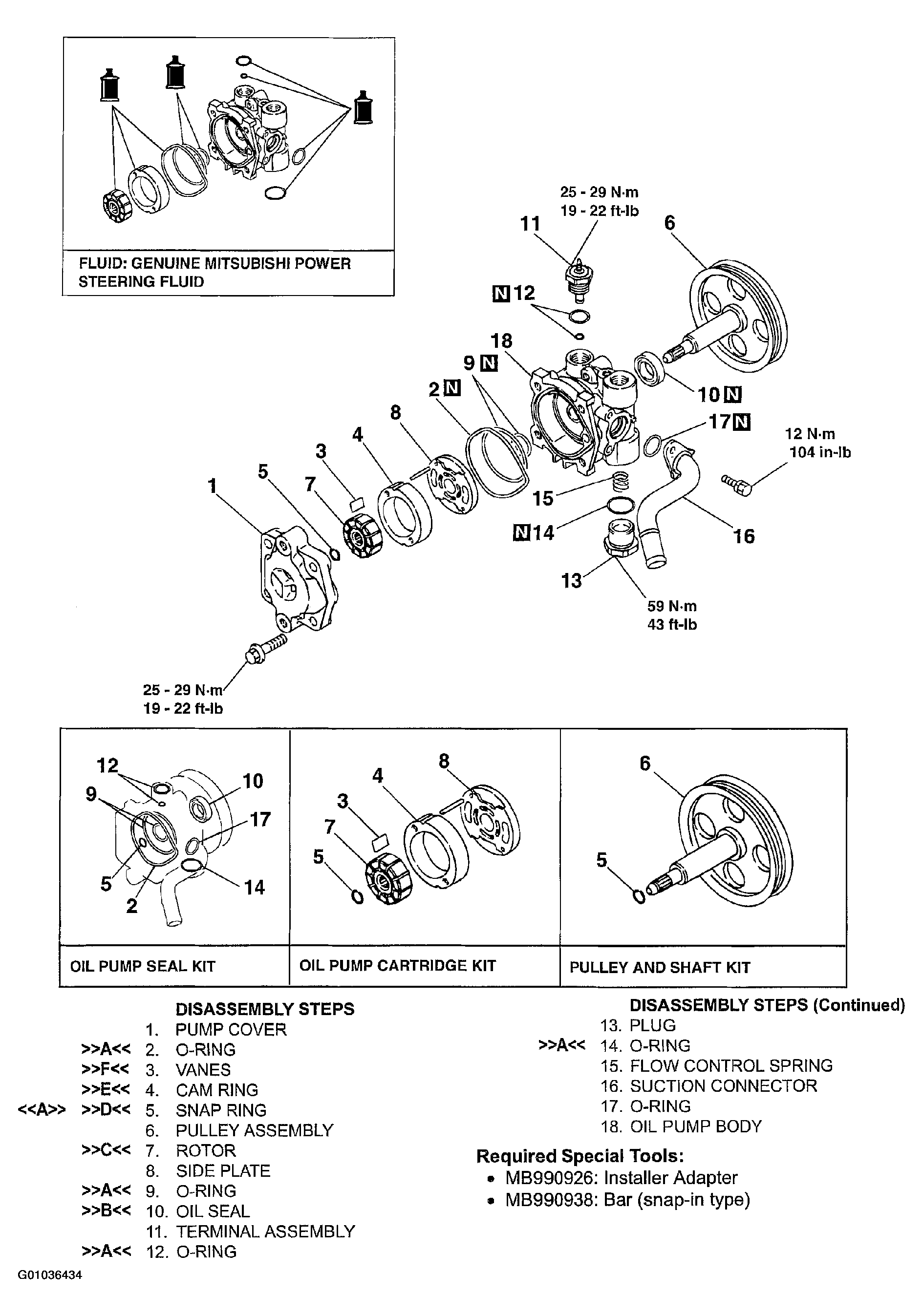

Fig 1: Disassembling Power Steering Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
