Removal And Installation: Notes

WARNING: Before removing the steering gear box Refer to AIR BAG SAFETY PRECAUTIONS . Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious driver injury.

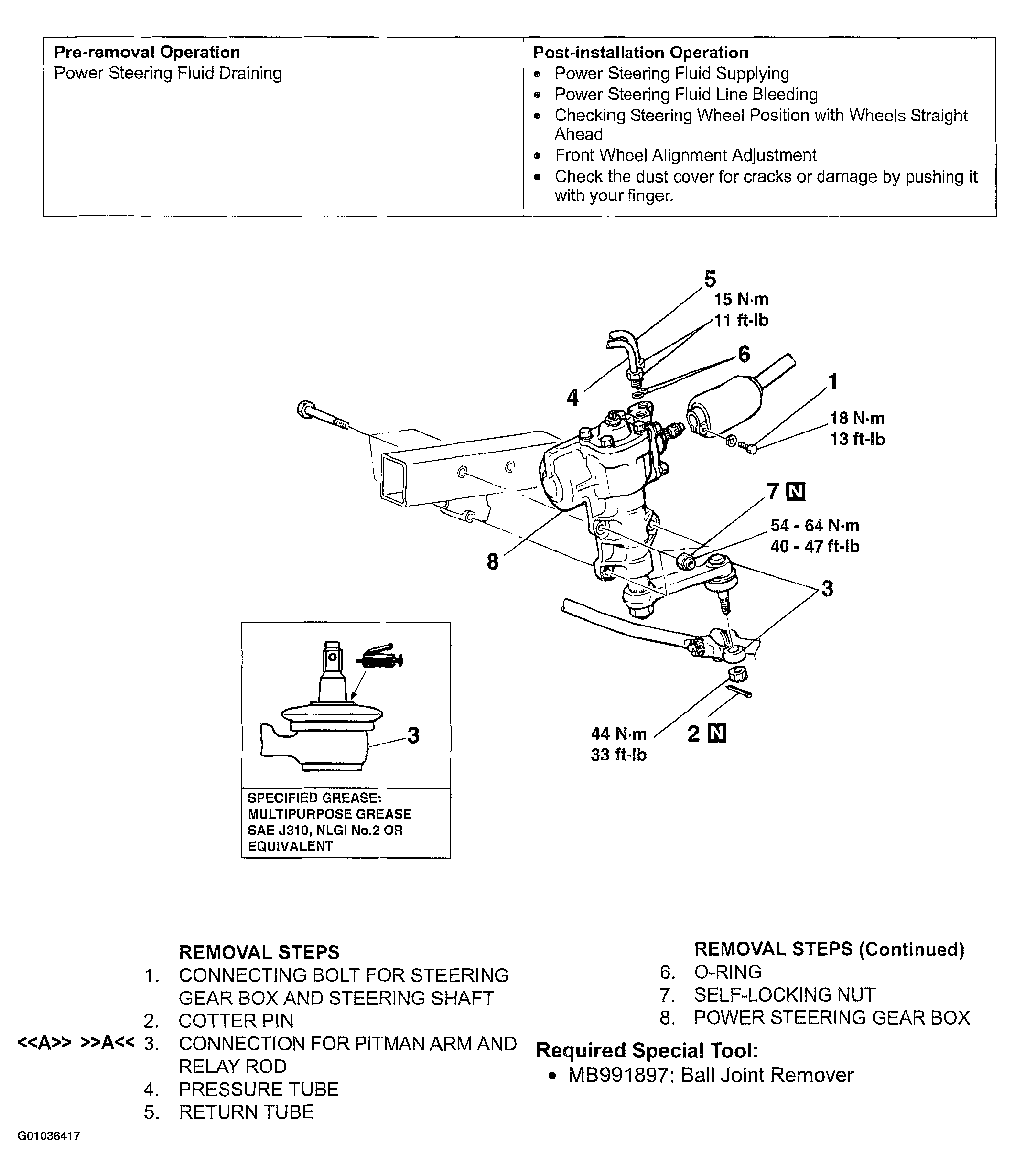

Fig 1: Removing Power Steering Gear Box Assembly
G01036417Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
