Home >> Mitsubishi >> 2004 >> Montero Sport LS, RWD >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Gear Box Assembly >> Disassembly >> Notes

Power Steering Gear Box Assembly: Disassembly: Notes

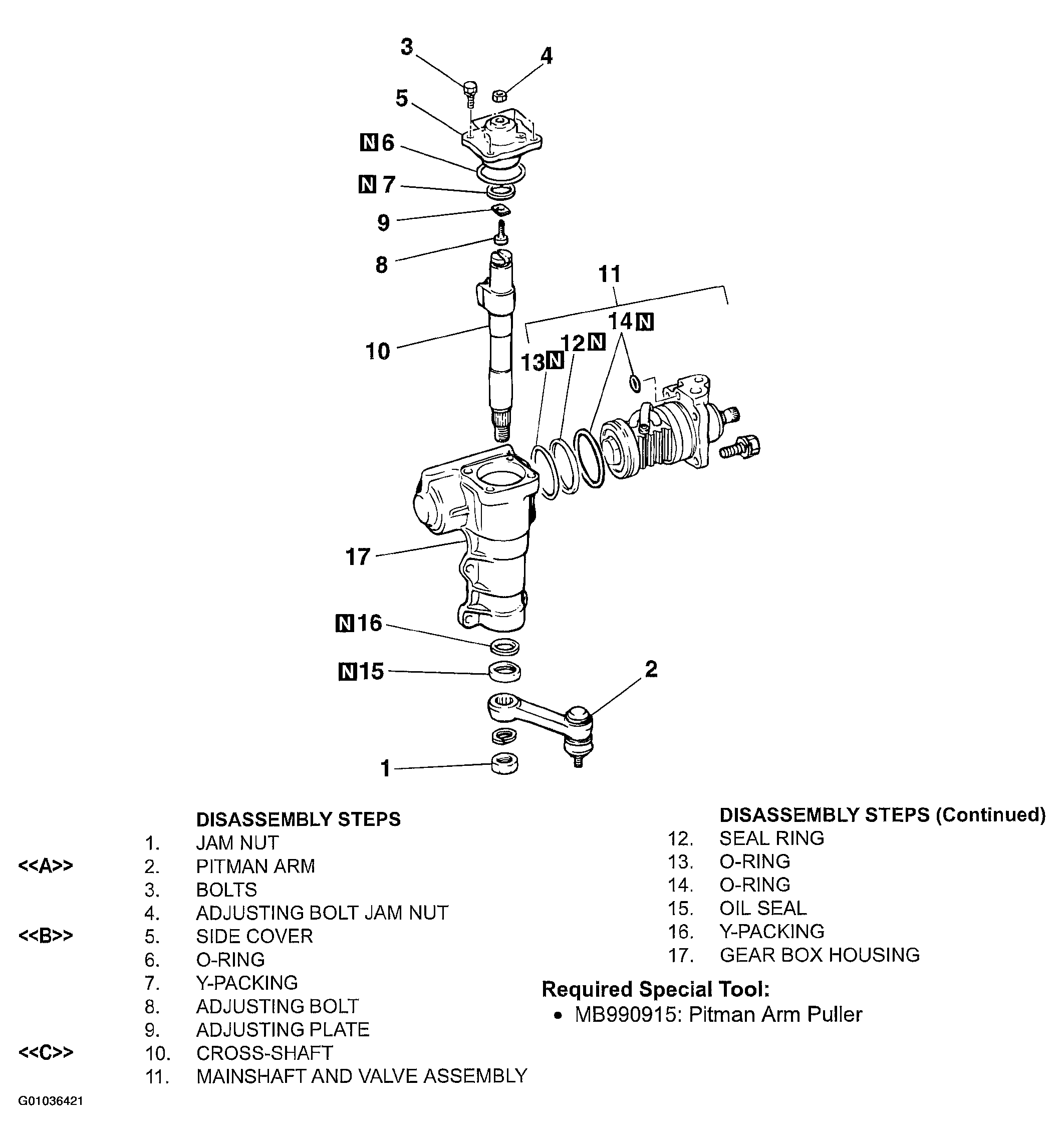

Fig 1: Disassembling Steering Gear

G01036421

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
