Steering Angle Check

Place the front wheel on a turning radius gauge and measure the steering angle.

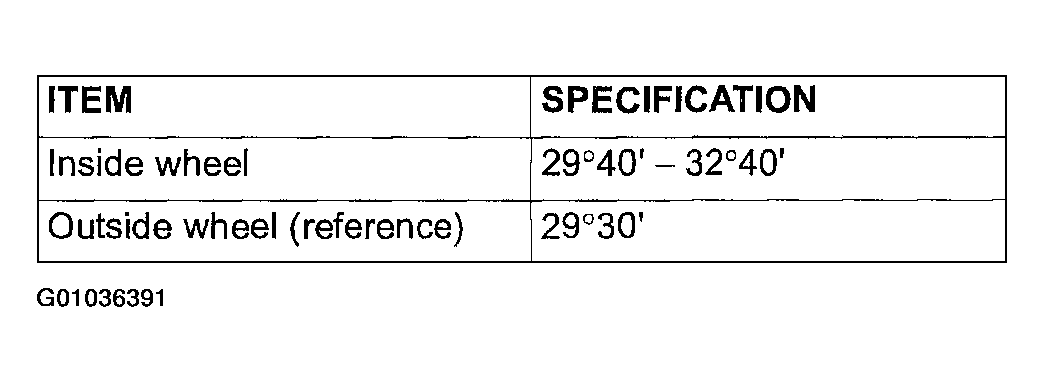

Fig 1: Steering Angle Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When the steering wheel is turned to lock, check that the clearance between the knuckle and the stopper is 1 mm (0.04 inch) or more.

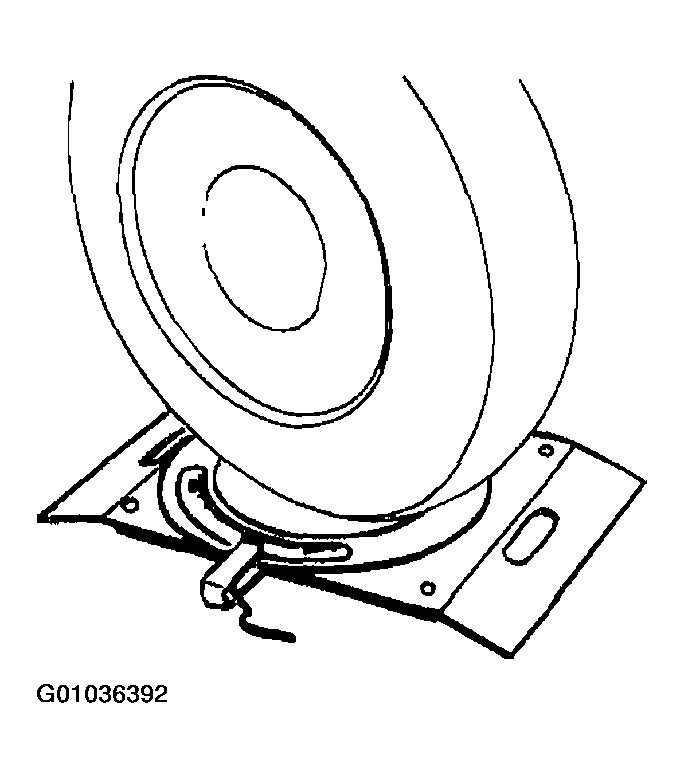

Fig 2: Placing Front Wheel On Turning Radius Gauge
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

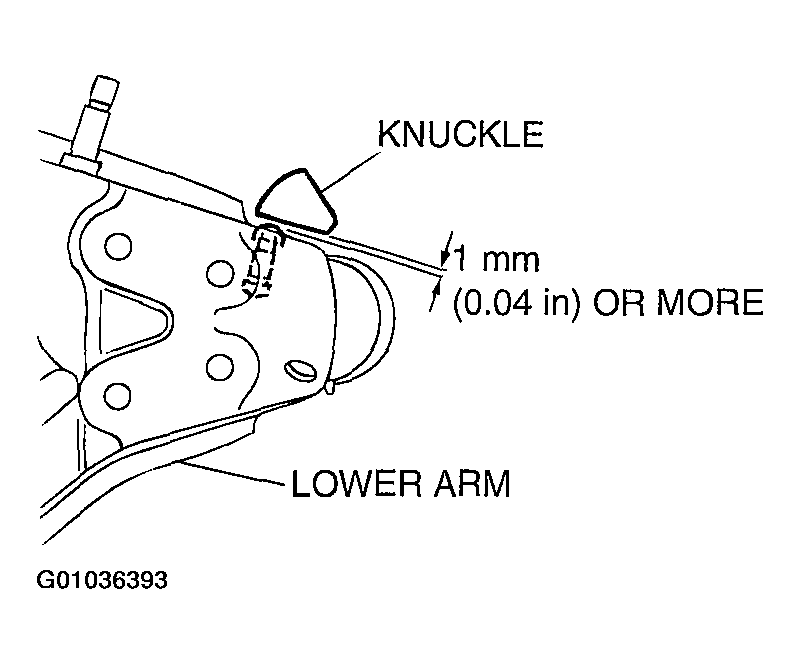

Fig 3: Identifying Clearance Between Knuckle And Stopper
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that the toe-in is within the standard value. If the steering angle is outside the standard value, adjust the toe-in. (Refer to FRONT WHEEL ALIGNMENT CHECK AND ADJUSTMENT )
Standard value: 3.5 +/- 3.5 mm (0.14 +/- 0.14 inch)
Adjust the steering angle with the stopper bolt.

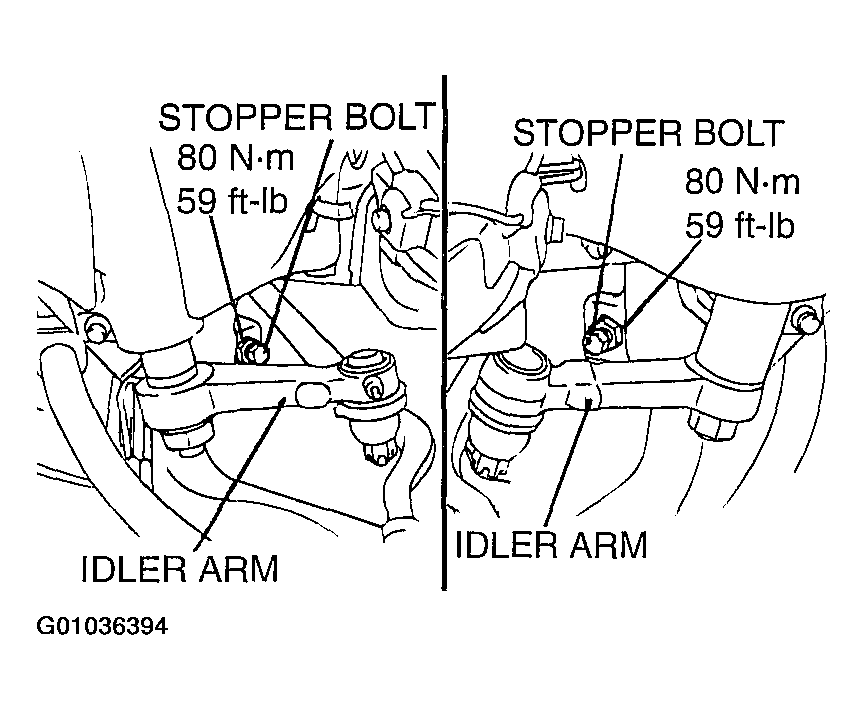

Fig 4: Identifying Stopper Bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
