Section 30 (Keyless Entry System)
>>
Keyless Entry System
>>
Inspection
>>
Hazard Warning Relay Continuity Check
Hazard Warning Relay Continuity Check
WARNING:
This page is about a different car, the 2003 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

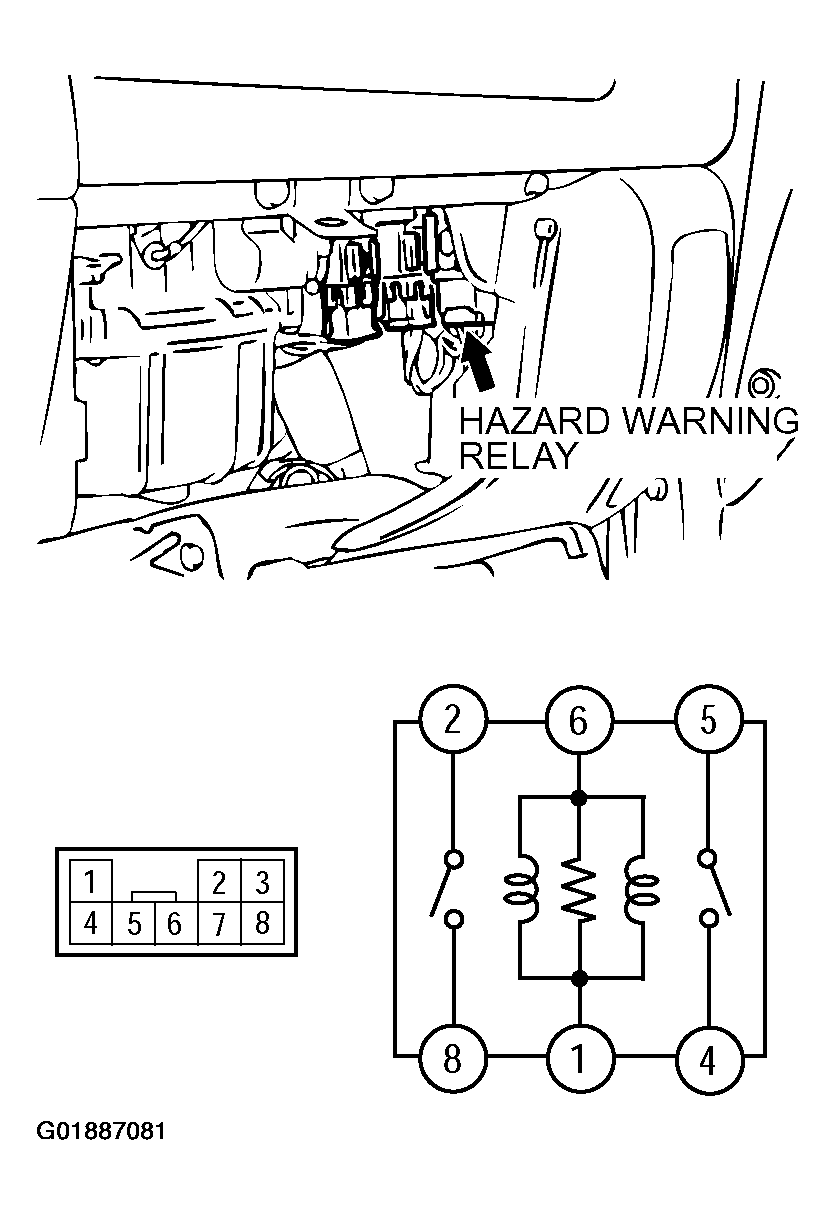

Fig 1: Hazard Warning Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

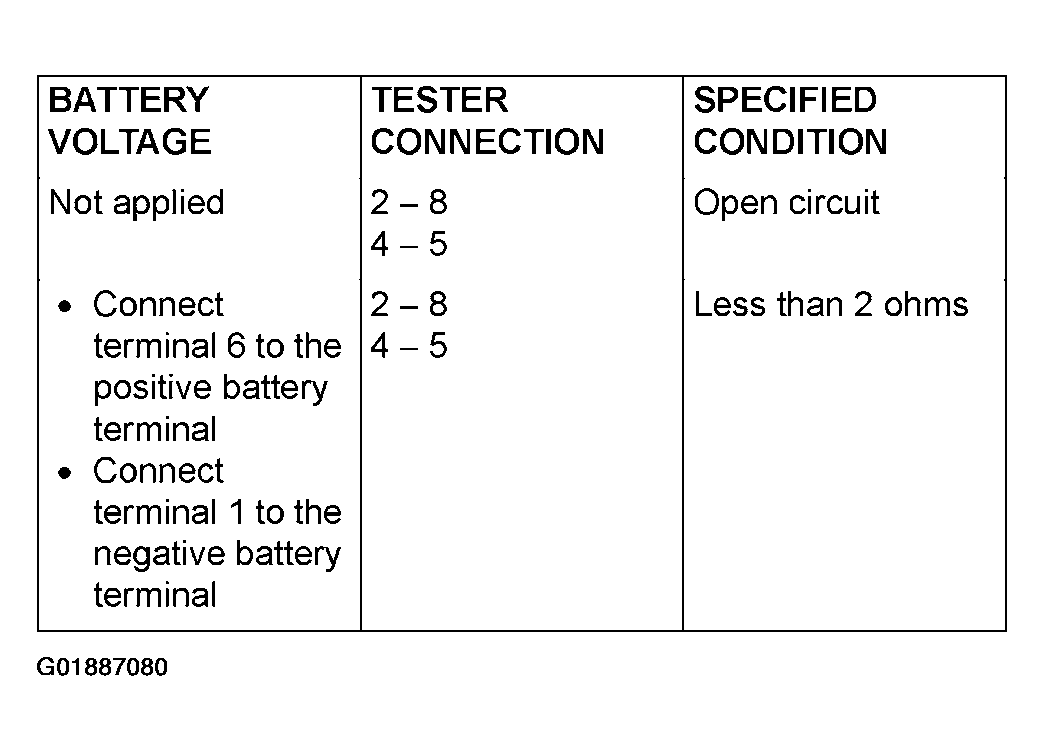

Fig 2: Checking Hazard Warning Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
