Power Window Switch Circuit

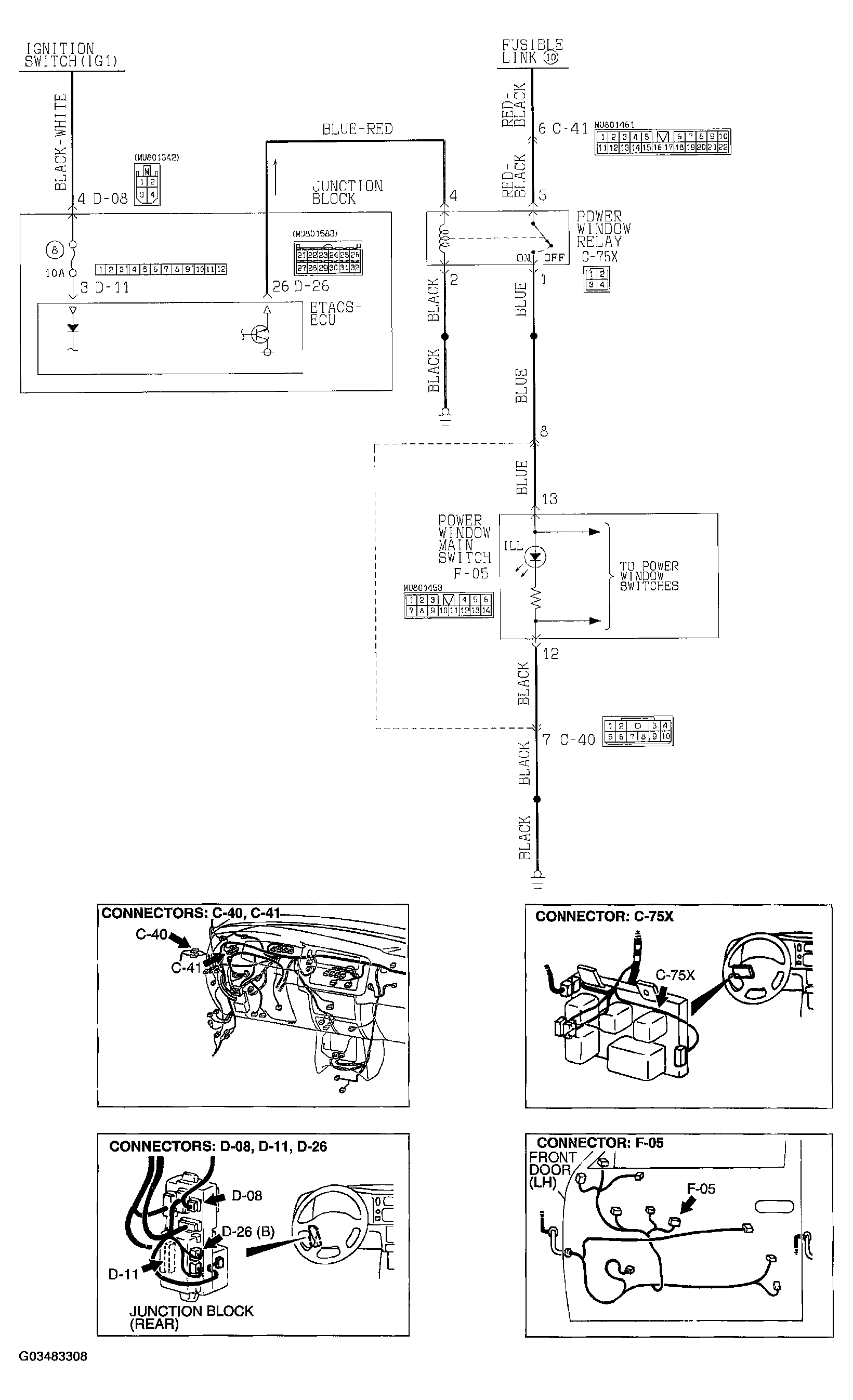

Fig 1: Power Window Switch Circuit Diagram
G03483308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
