Auto-Cruise Control Switch Check

Measure the resistance between the terminals when each of the "SET," "RESUME," "CANCEL" and "MAIN" switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.

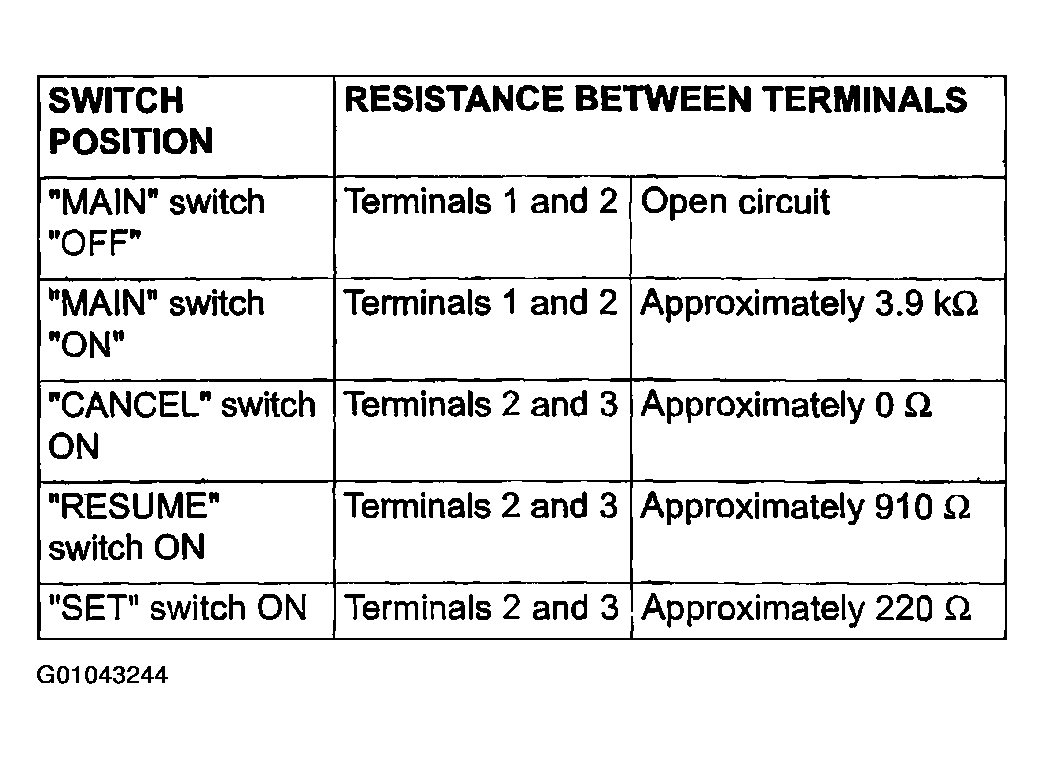

Fig 1: Auto-Cruise Control Switch Inspection Table
G01043243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

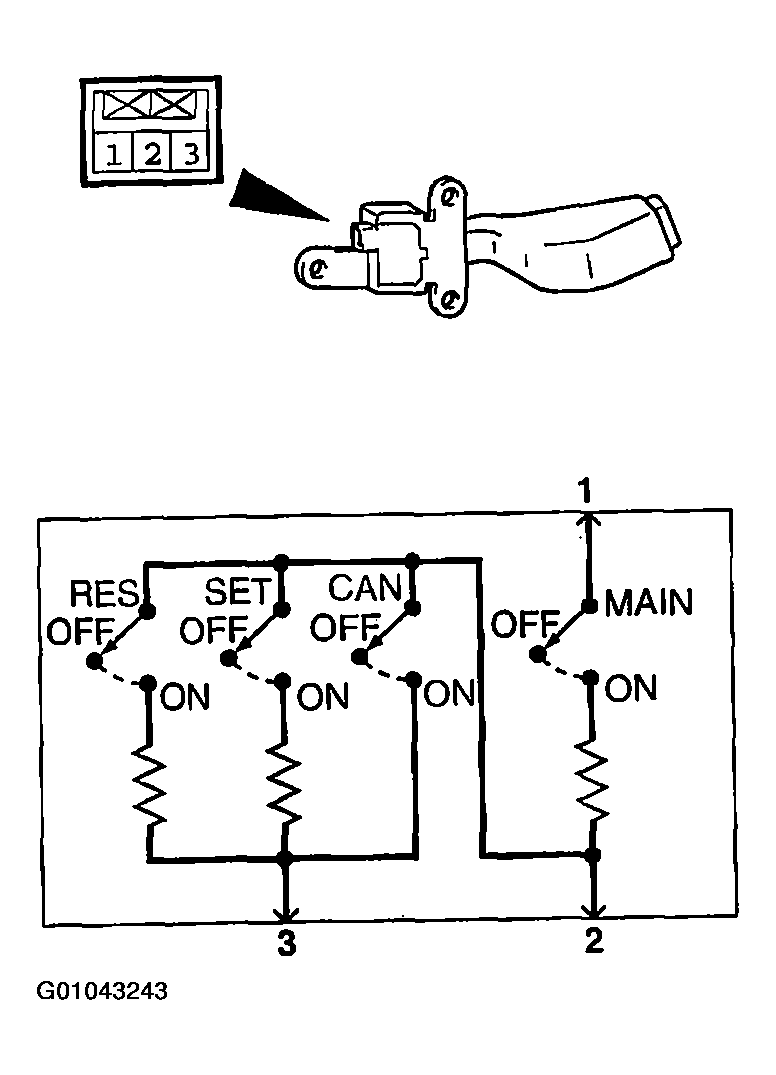

Fig 2: Checking Auto-Cruise Control Switch
G01043244Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
