DTC 15: Auto-cruise Control Switch System: Notes

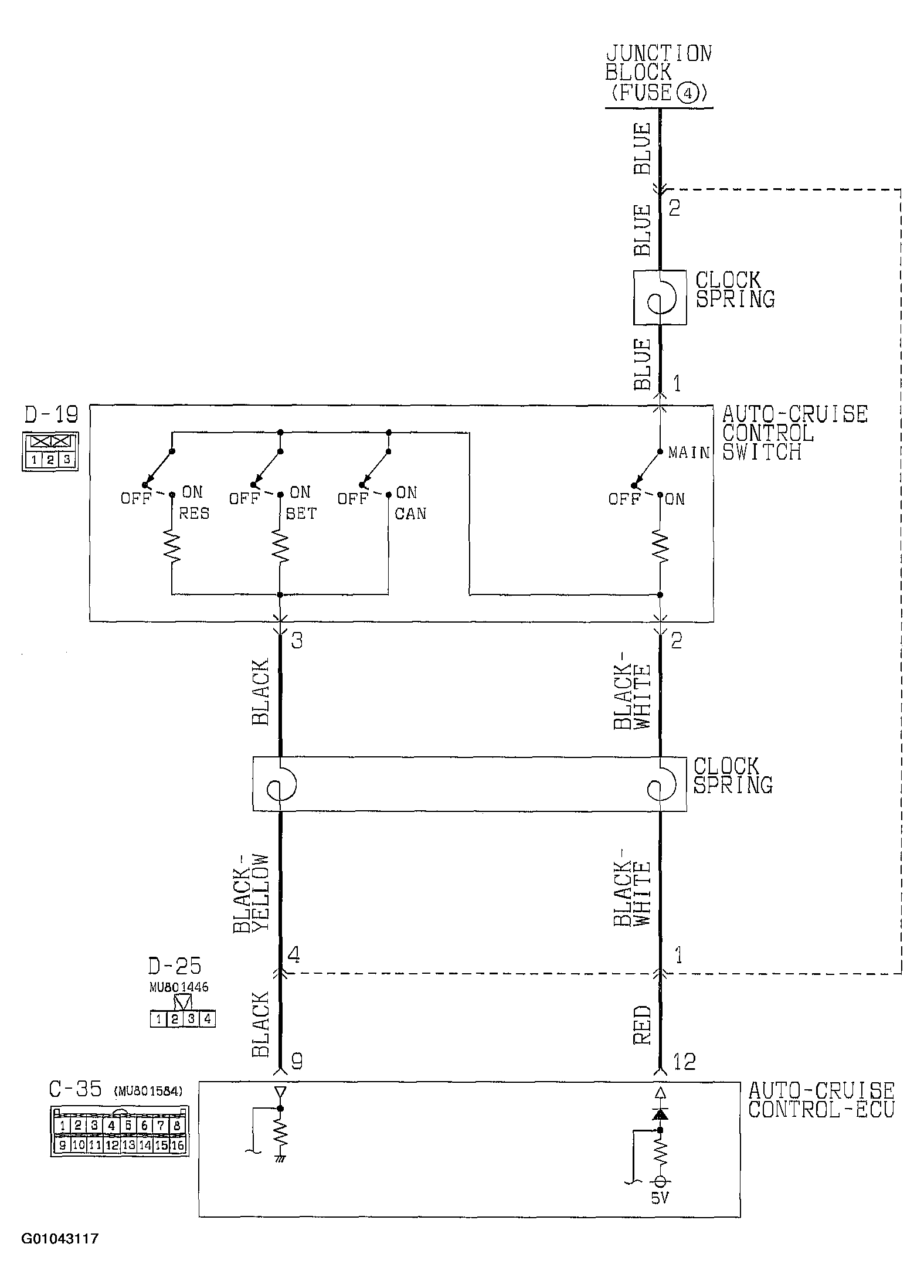

Fig 1: Auto-Cruise Control Switch System Circuit Diagram
G01043117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

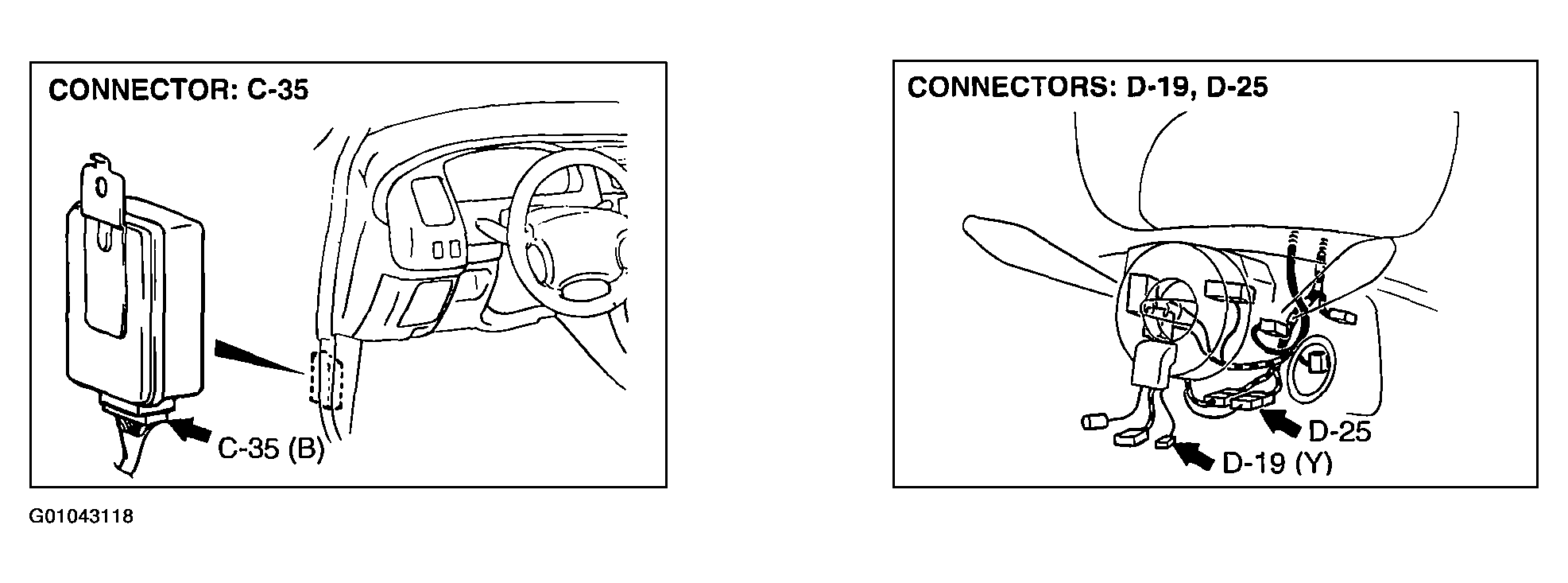

Fig 2: Identifying Connectors: C-35, D-19, D-25
G01043118Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
