DTC 12: Vehicle Speed Sensor System: Notes

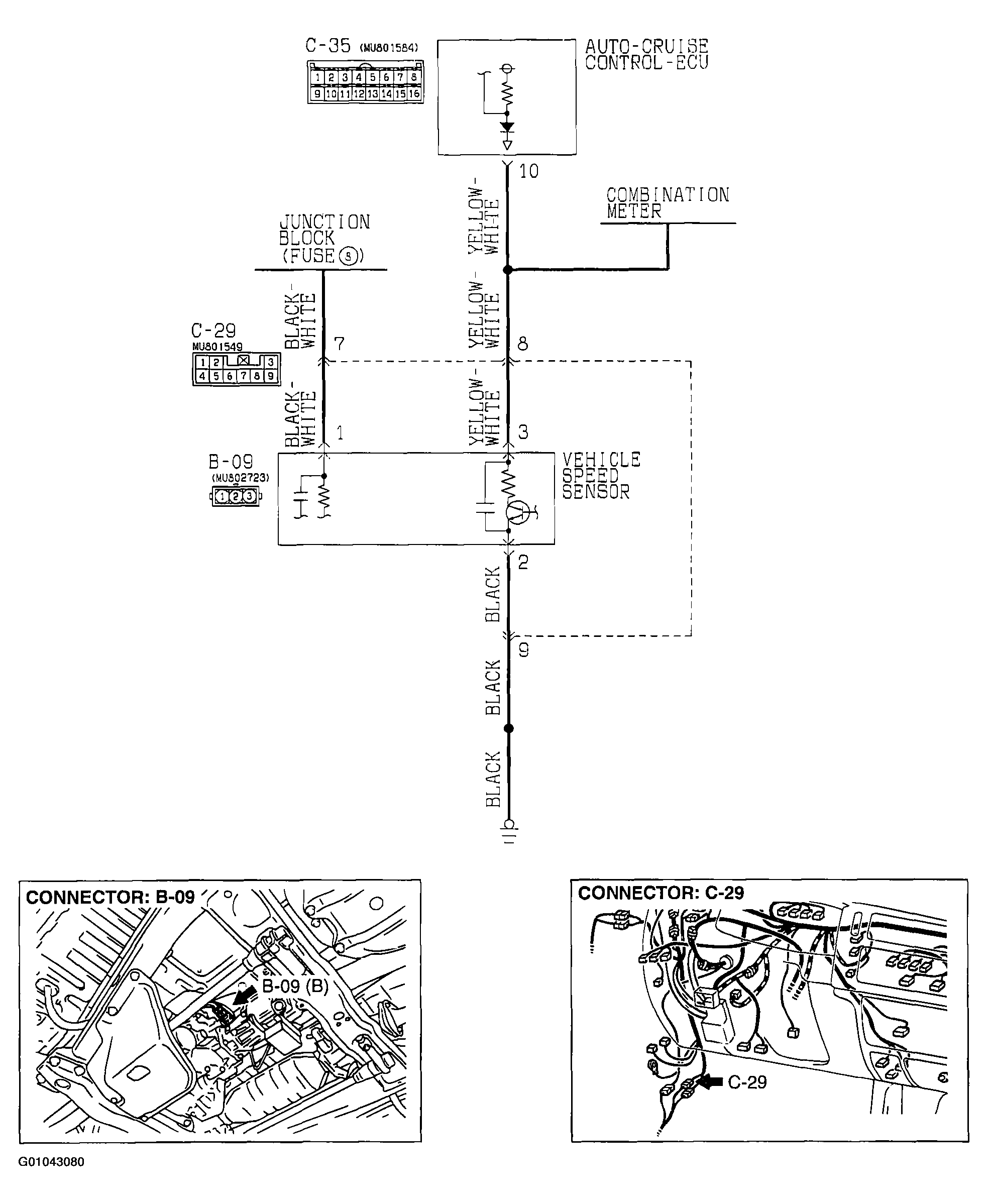

Fig 1: Vehicle Speed Sensor System Circuit Diagram & Connector Identification
G01043080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

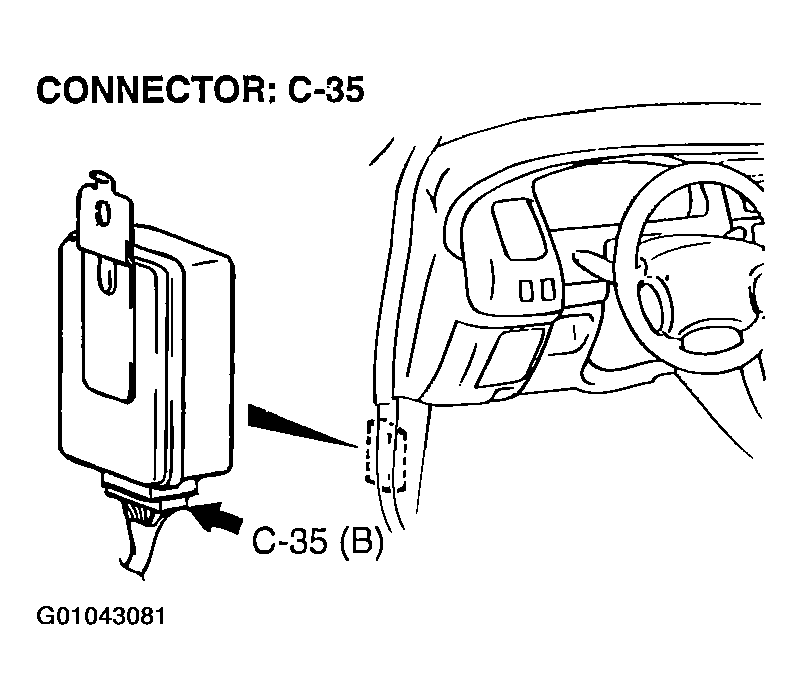

Fig 2: Identifying Connector: C-35
G01043081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
