Check Auto-Cruise Control-Ecu Terminals

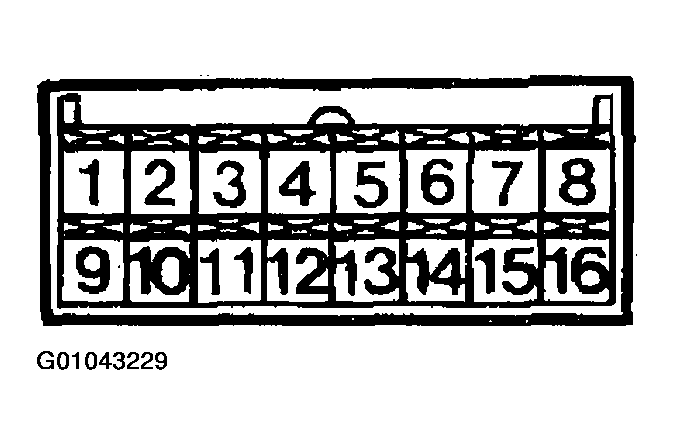

Fig 1: Identifying Auto-Cruise Control-ECU Terminals
G01043229Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

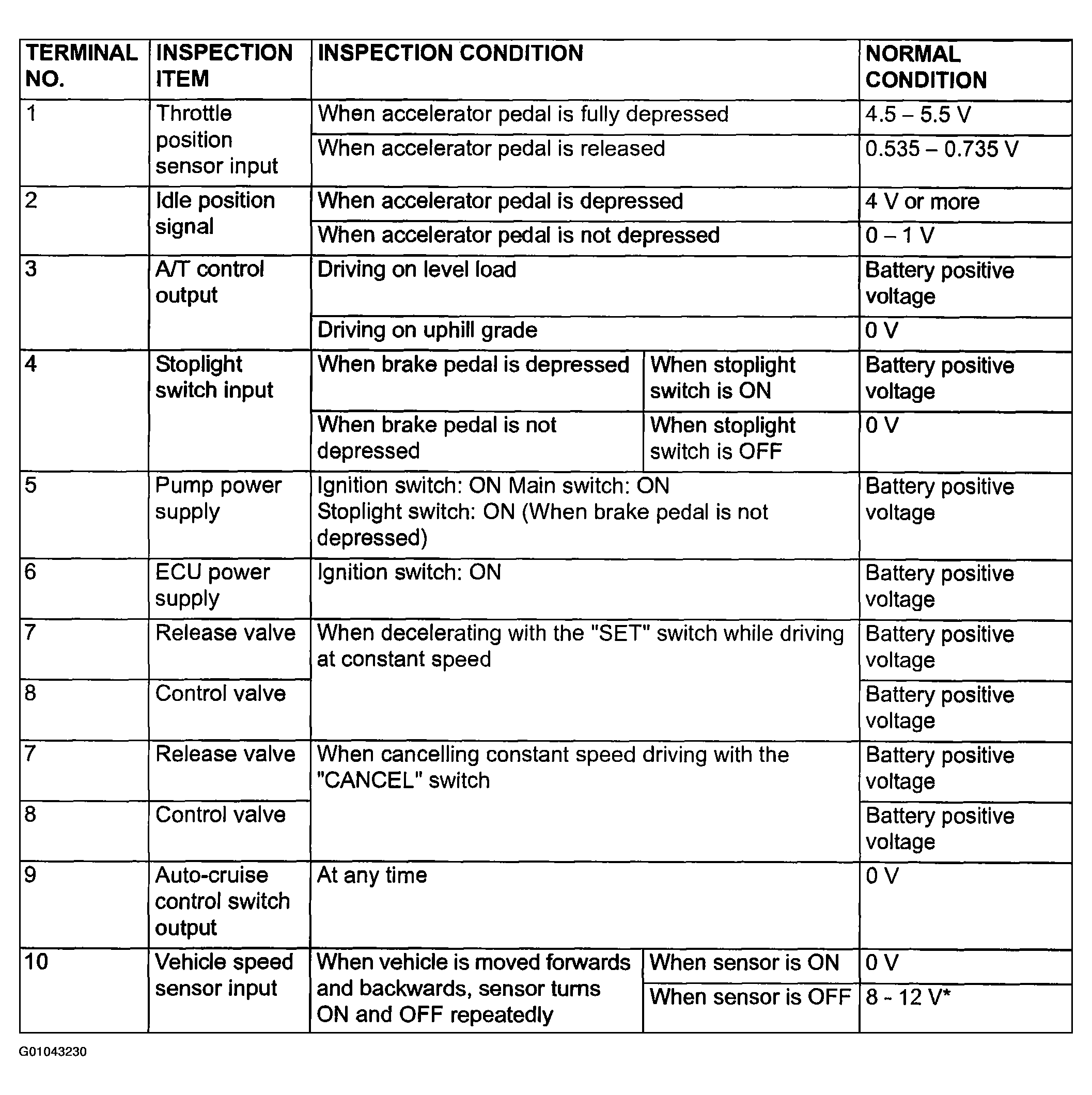

Fig 2: Auto-Cruise Control-ECU Terminals Inspection Table (1 Of 2)
G01043230Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

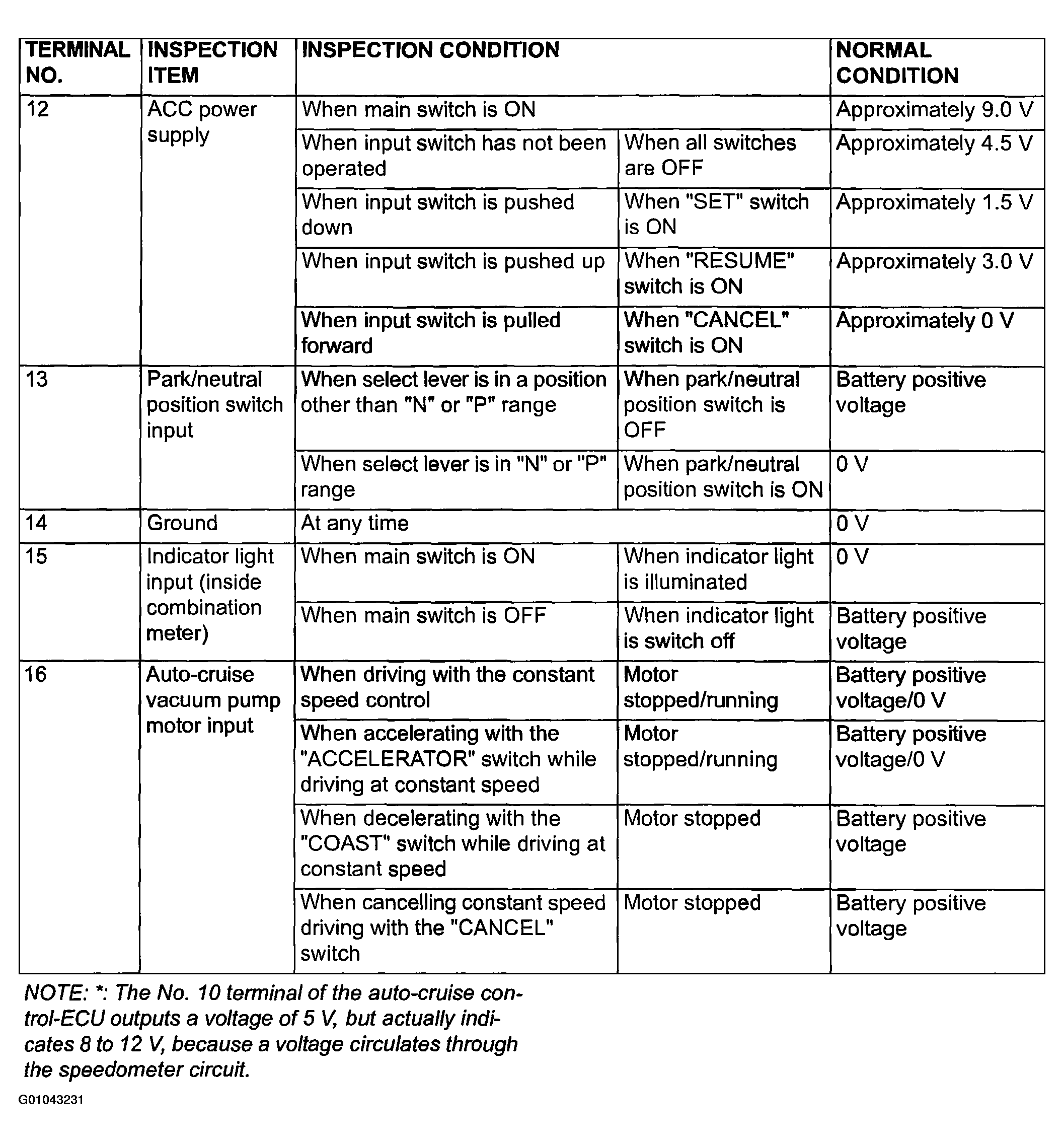

Fig 3: Auto-Cruise Control-ECU Terminals Inspection Table (2 Of 2)
G01043231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
