Mitsubishi
>>
2004
>>
Lancer Sportback LS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System - SPORTBACK
>>
Ignition Coil
>>
Removal And Installation
Removal And Installation

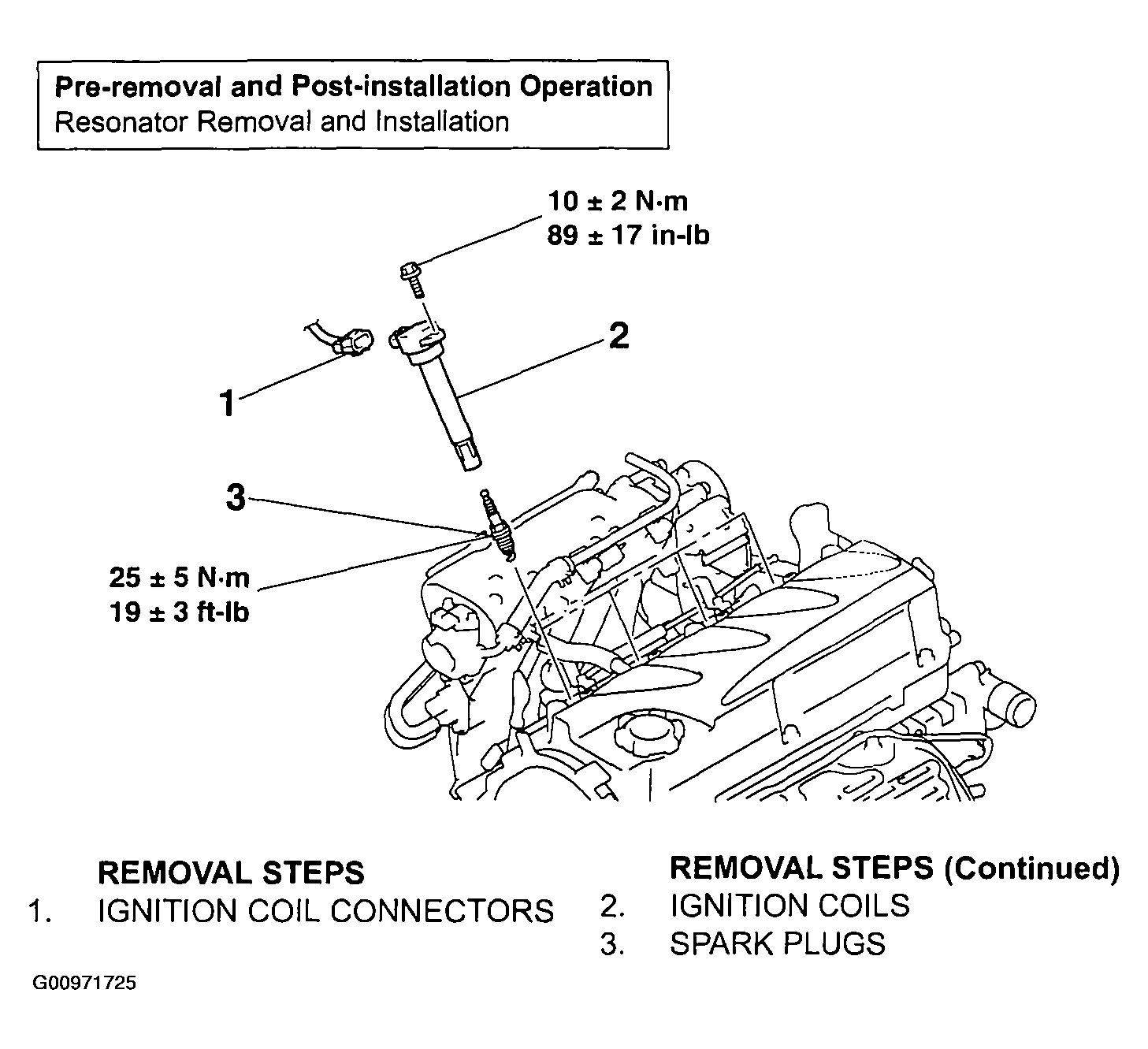

Fig 1: Removing And Installing Ignition Coil
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
