Transmission Fluid Temperature Sensor Check

  1. Remove the transmission fluid temperature sensor.
  2. Measure the resistance between terminals 1 and 2 of the transmission fluid temperature sensor connector.
    Fig 1: Measuring Resistance Between Terminals 1 And 2
    G00976283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If the transmission fluid temperature sensor resistance is outside the specified range, replace the transmission fluid temperature sensor.

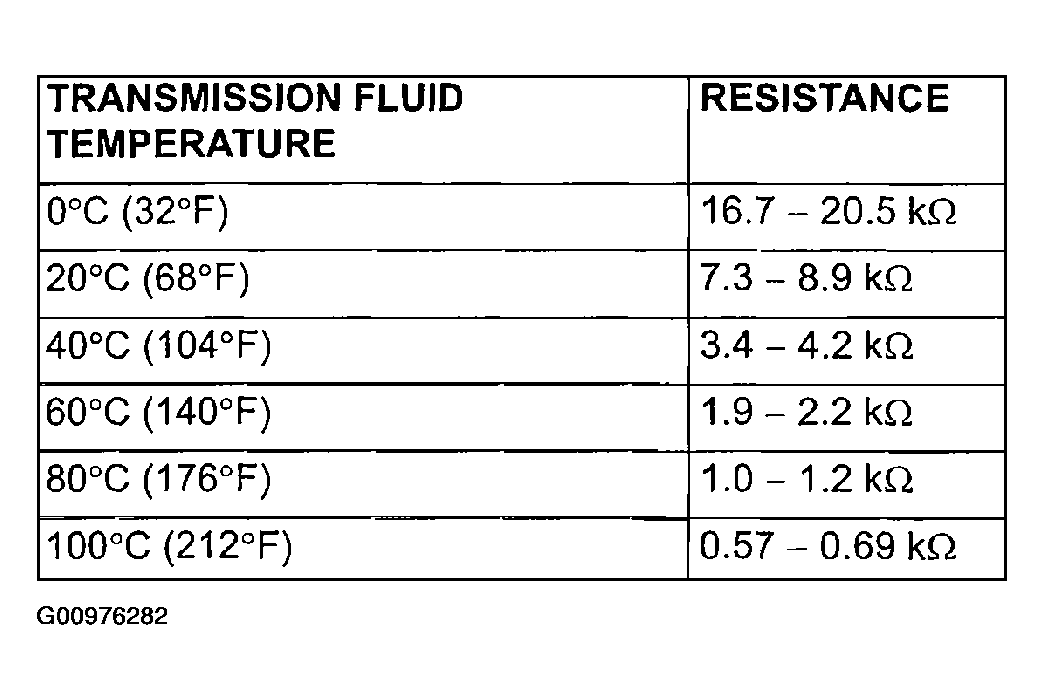

    Fig 2: Identifying Transmission Fluid Temperature Resistance
    G00976282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
