A/T Control Component Layout

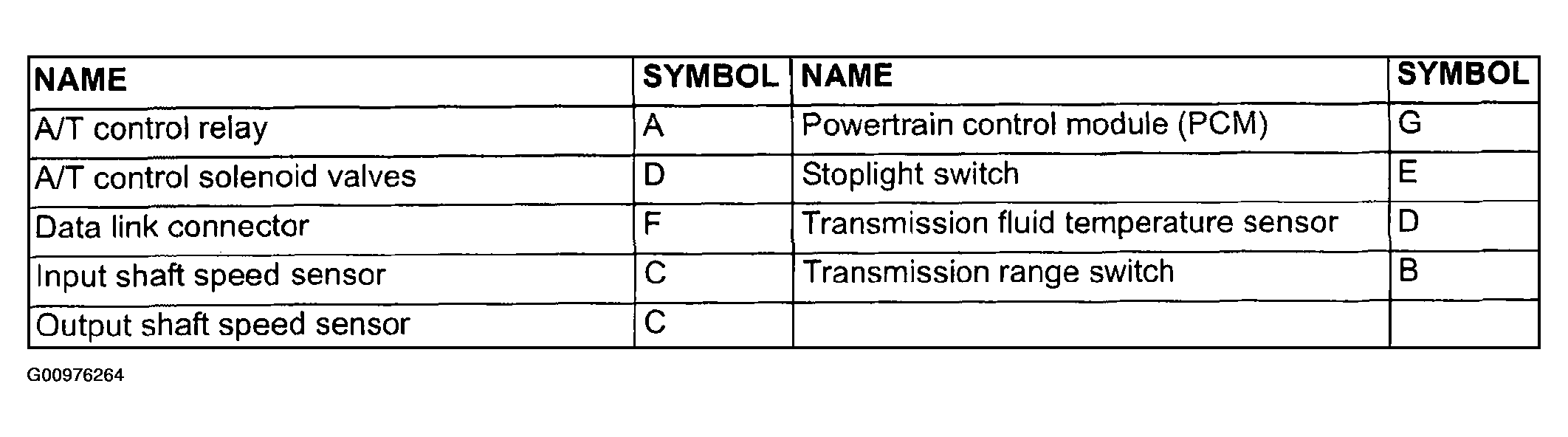

Fig 1: Identifying A/T Control Component Layout (1 Of 2)
G00976264Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

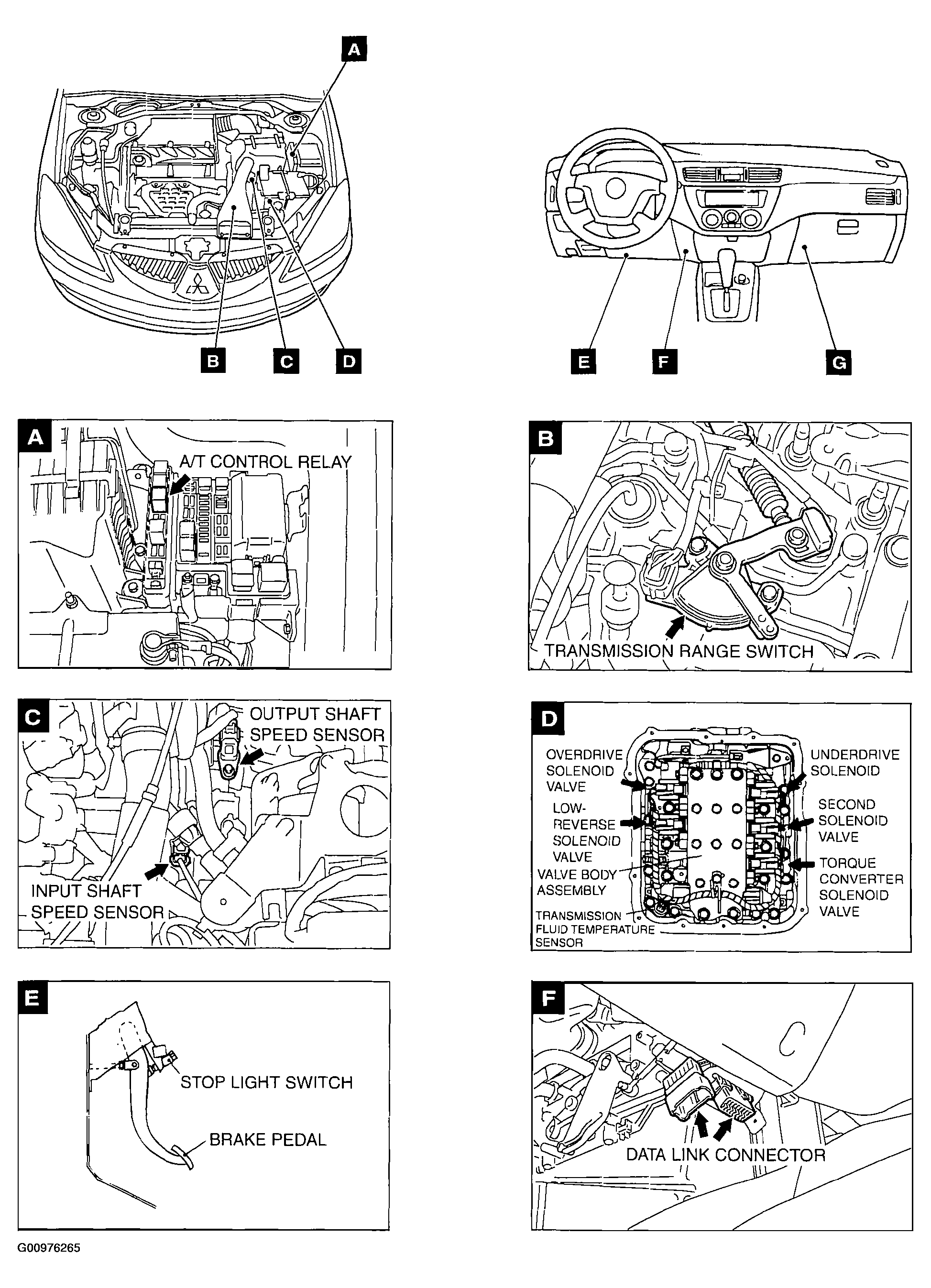

Fig 2: Identifying A/T Control Component Layout (2 Of 2)
G00976265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

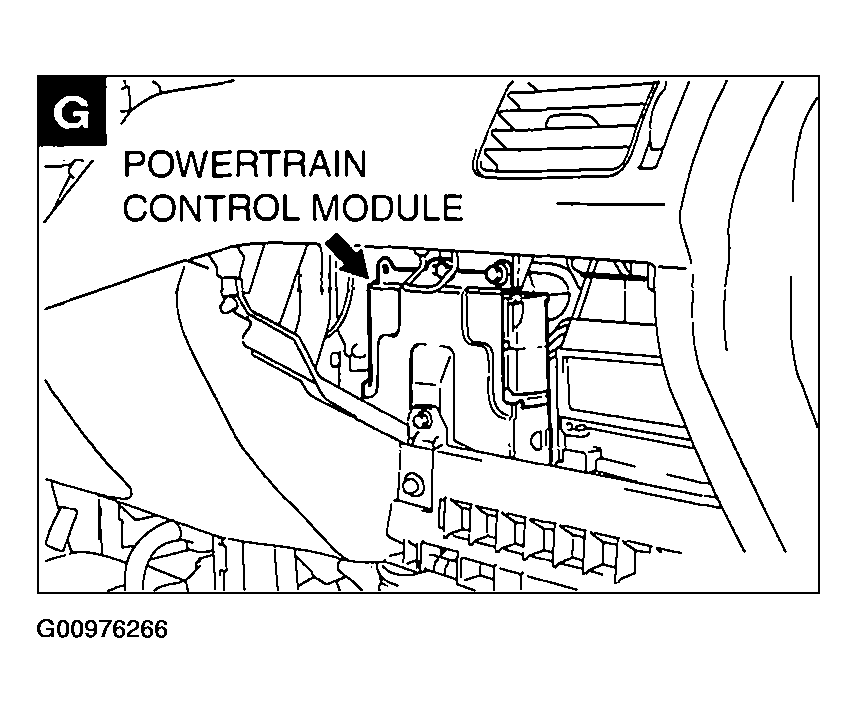

Fig 3: Identifying Powertrain Control Module
G00976266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
