Components And Functions

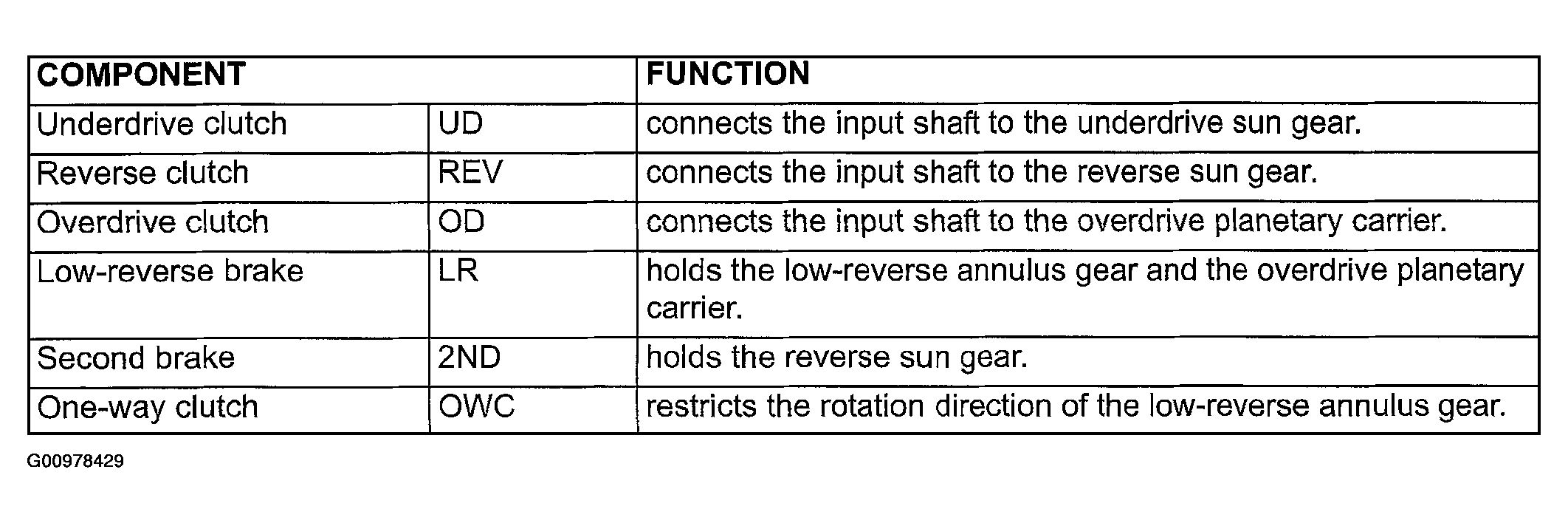

Fig 1: Components And Functions Chart
G00978429Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
