Diagnosis SPORTBACK: General Description: Notes

F4A4B model has been established.

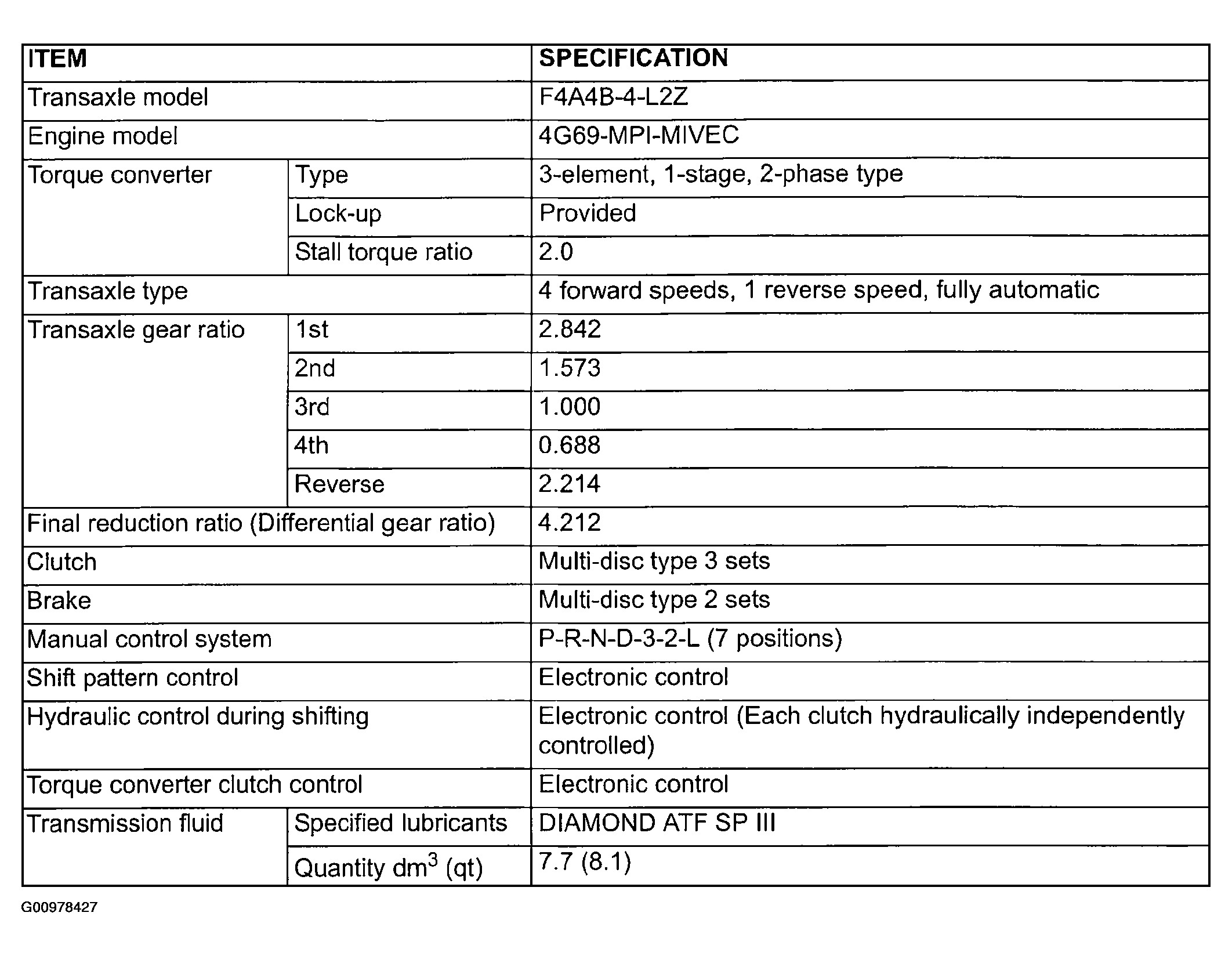

Fig 1: Transaxle General Description

G00978427

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
