Upshift Pattern

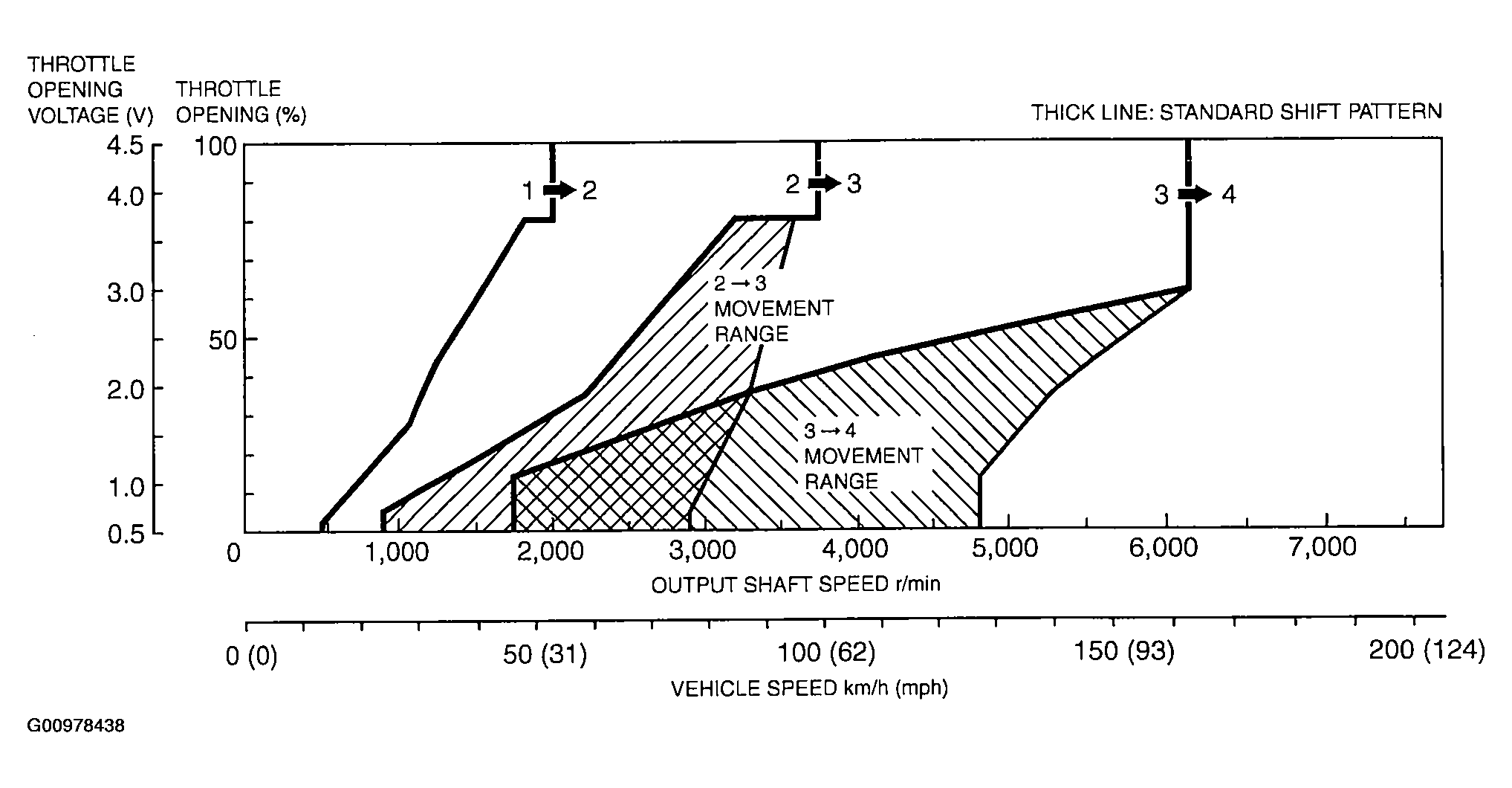

Fig 1: Upshift Pattern Graph
G00978438Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Within 2-to-3 3-to-4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
