Data List Reference Table

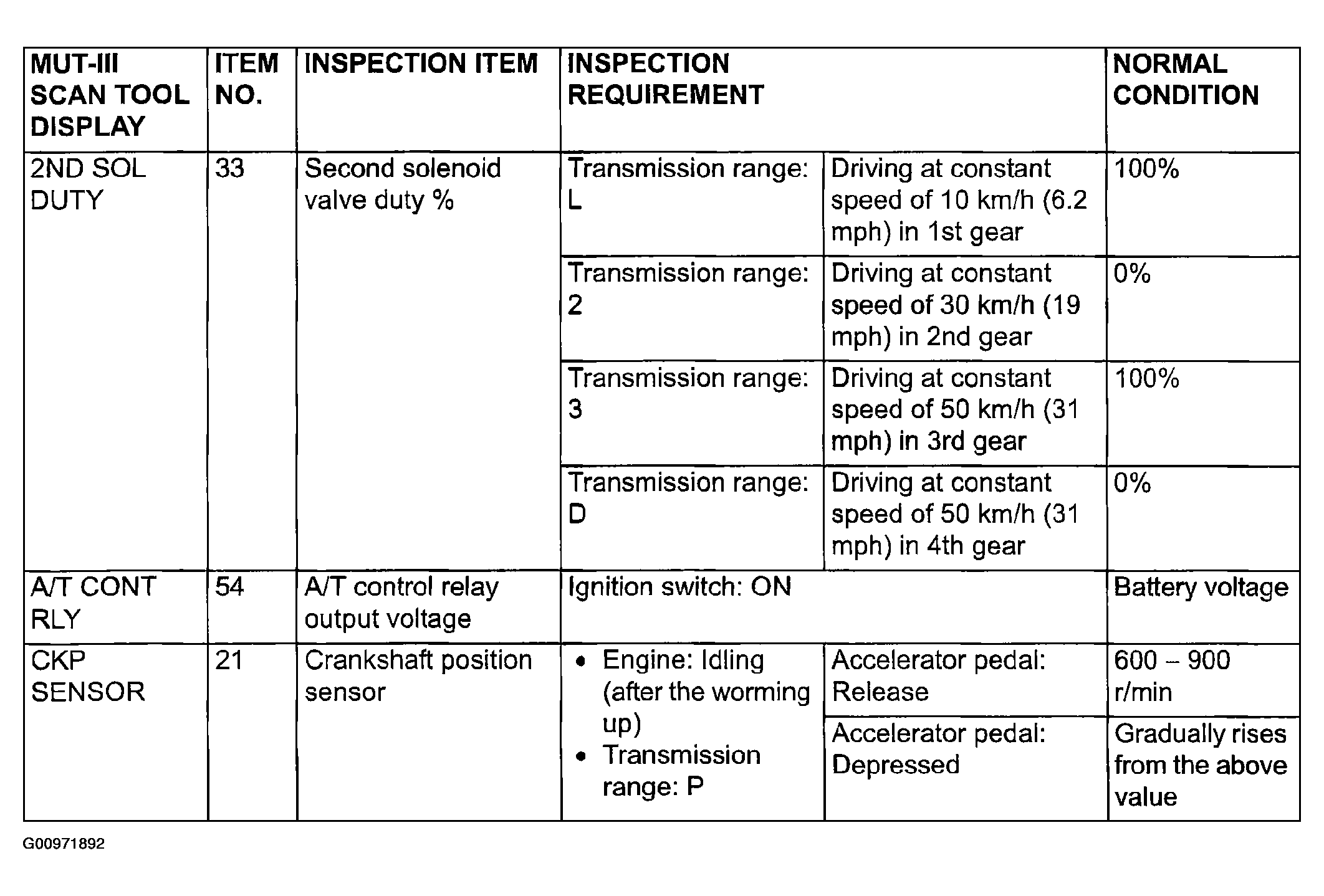

Fig 1: Data List Reference Table (1 Of 4)
G00971892Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

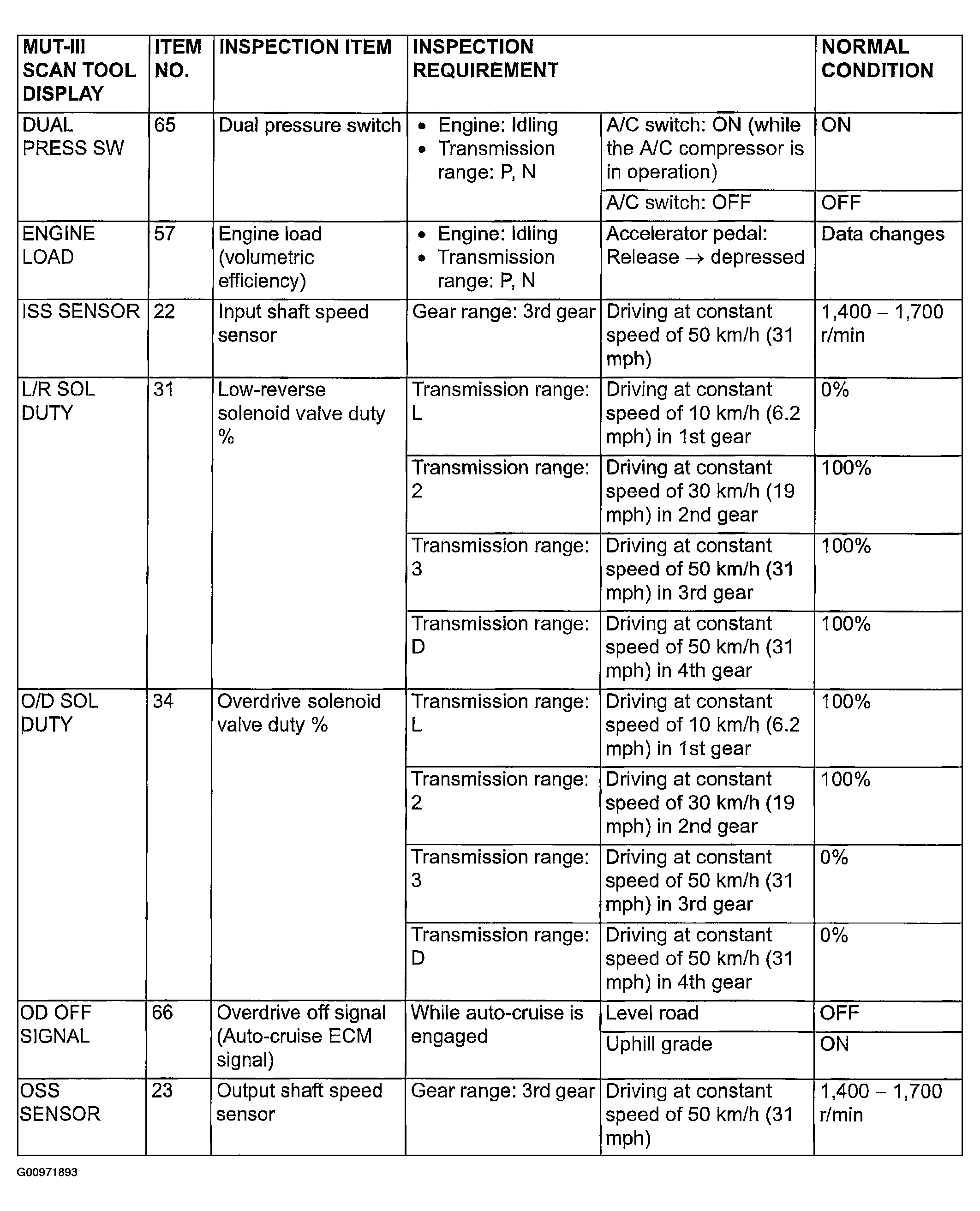

Fig 2: Data List Reference Table (2 Of 4)
G00971893Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

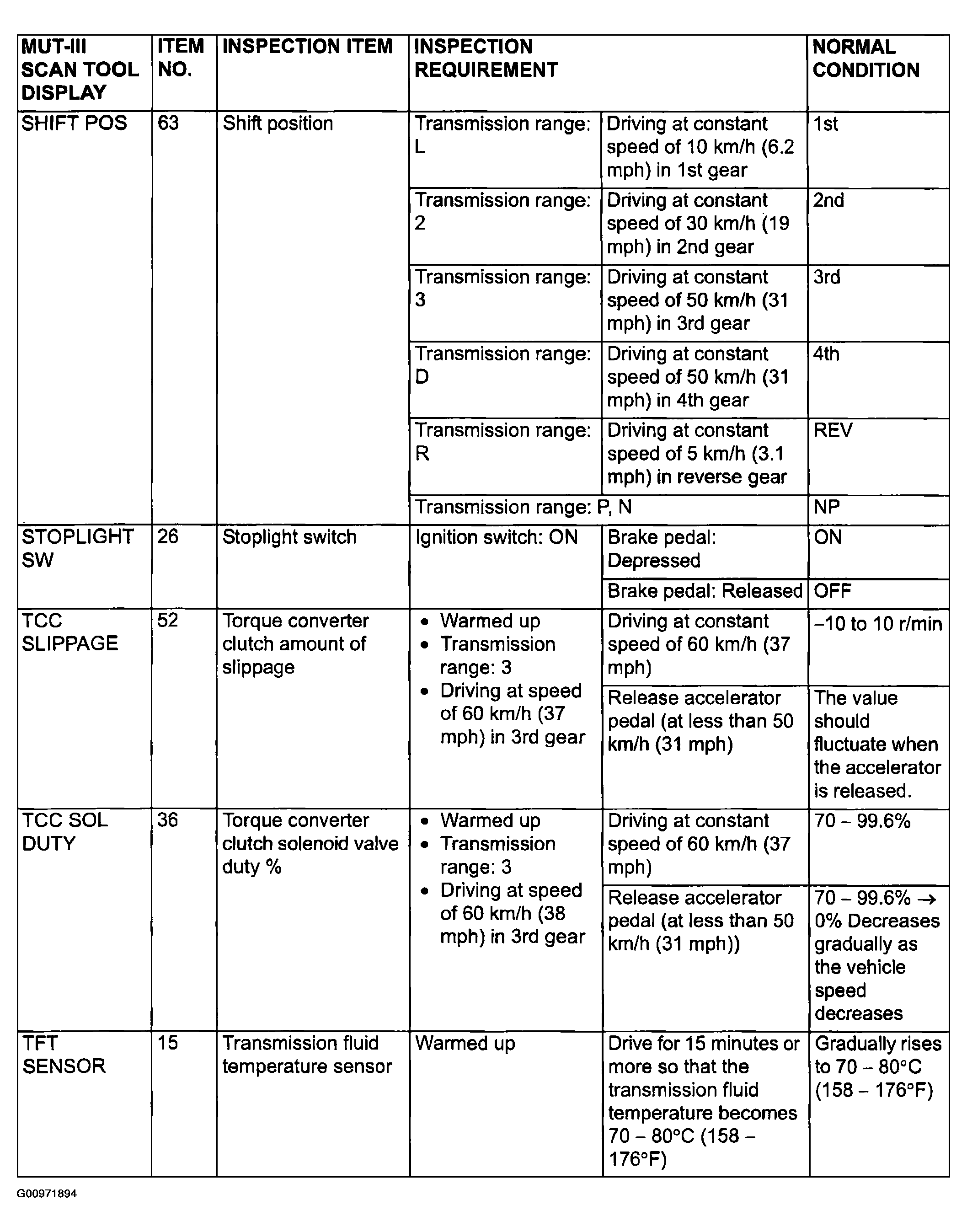

Fig 3: Data List Reference Table (3 Of 4)
G00971894Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

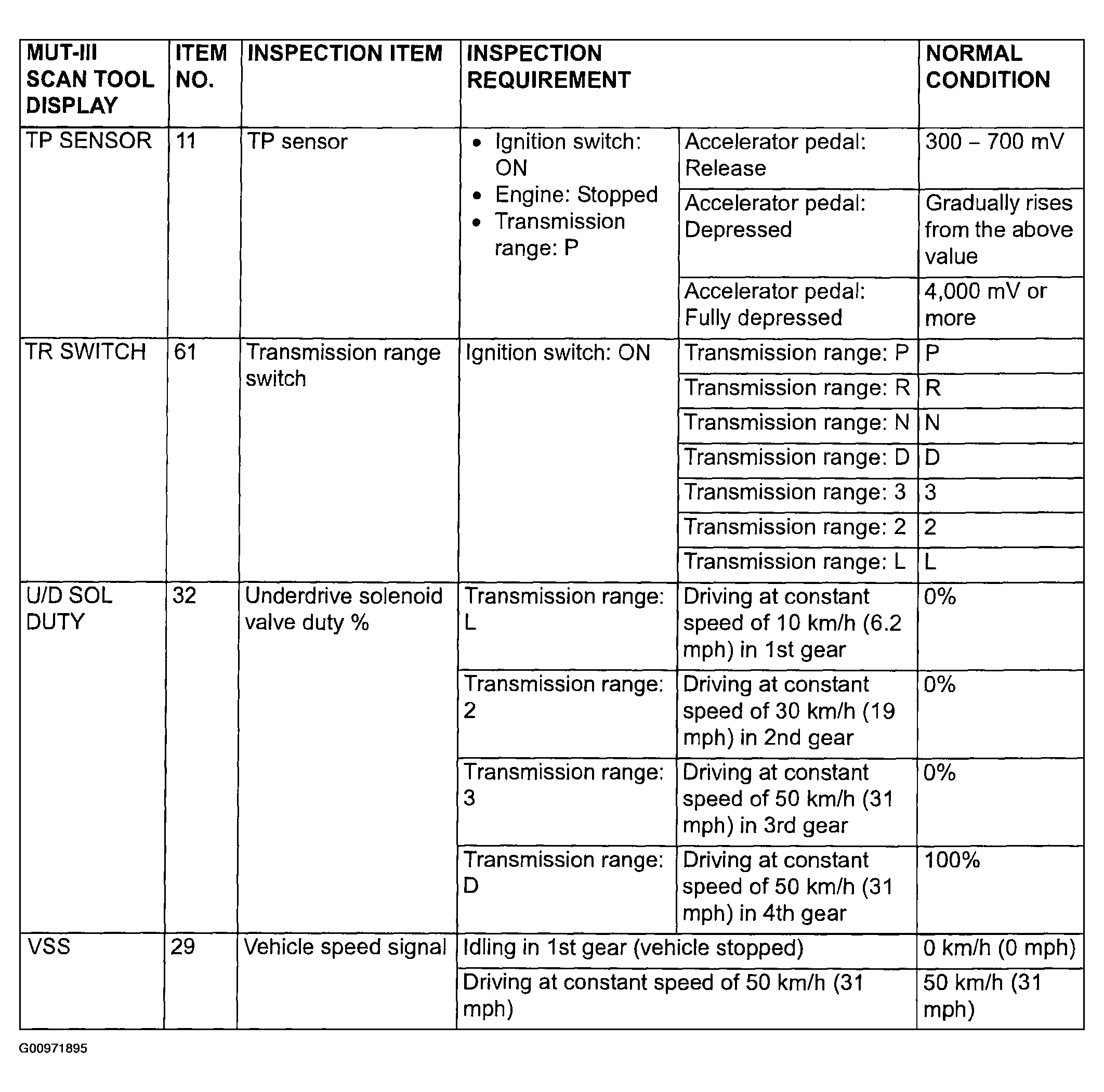

Fig 4: Data List Reference Table (4 Of 4)
G00971895Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
