Home >> Mitsubishi >> 2004 >> Lancer Sportback LS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis SPORTBACK >> A/T Key Interlock And Shift Lock Mechanisms >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: When removing and installing the key interlock cable and shift lock cable, be careful not to hit the SRS-ECU.

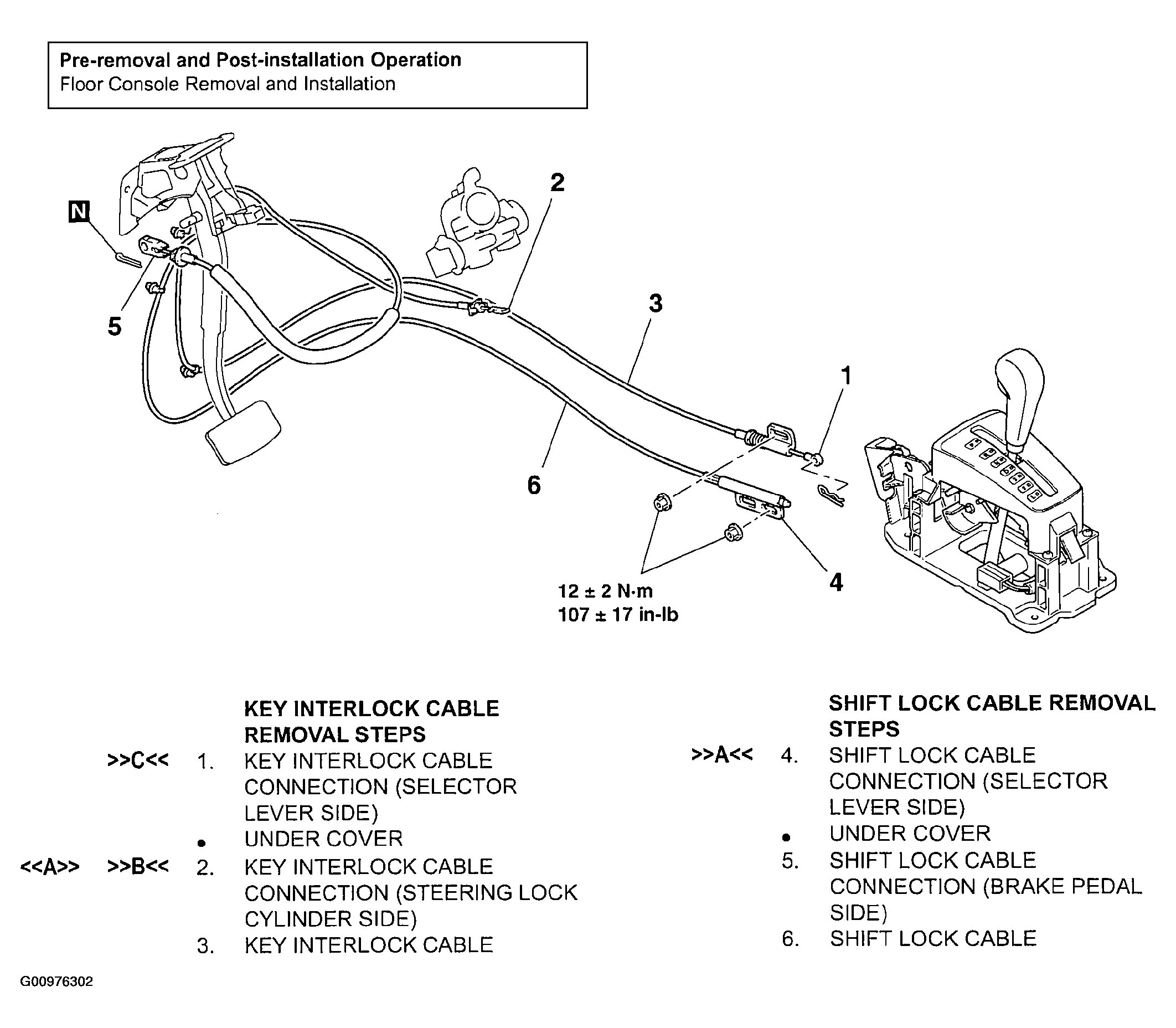

Fig 1: Identifying A/T Key Interlock And Shift Lock Mechanism Components
G00976302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
