Home >> Mitsubishi >> 2004 >> Lancer Sportback LS, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Fuel Supply - SPORTBACK >> Fuel Tank >> Removal And Installation >> Notes

Removal And Installation: Notes

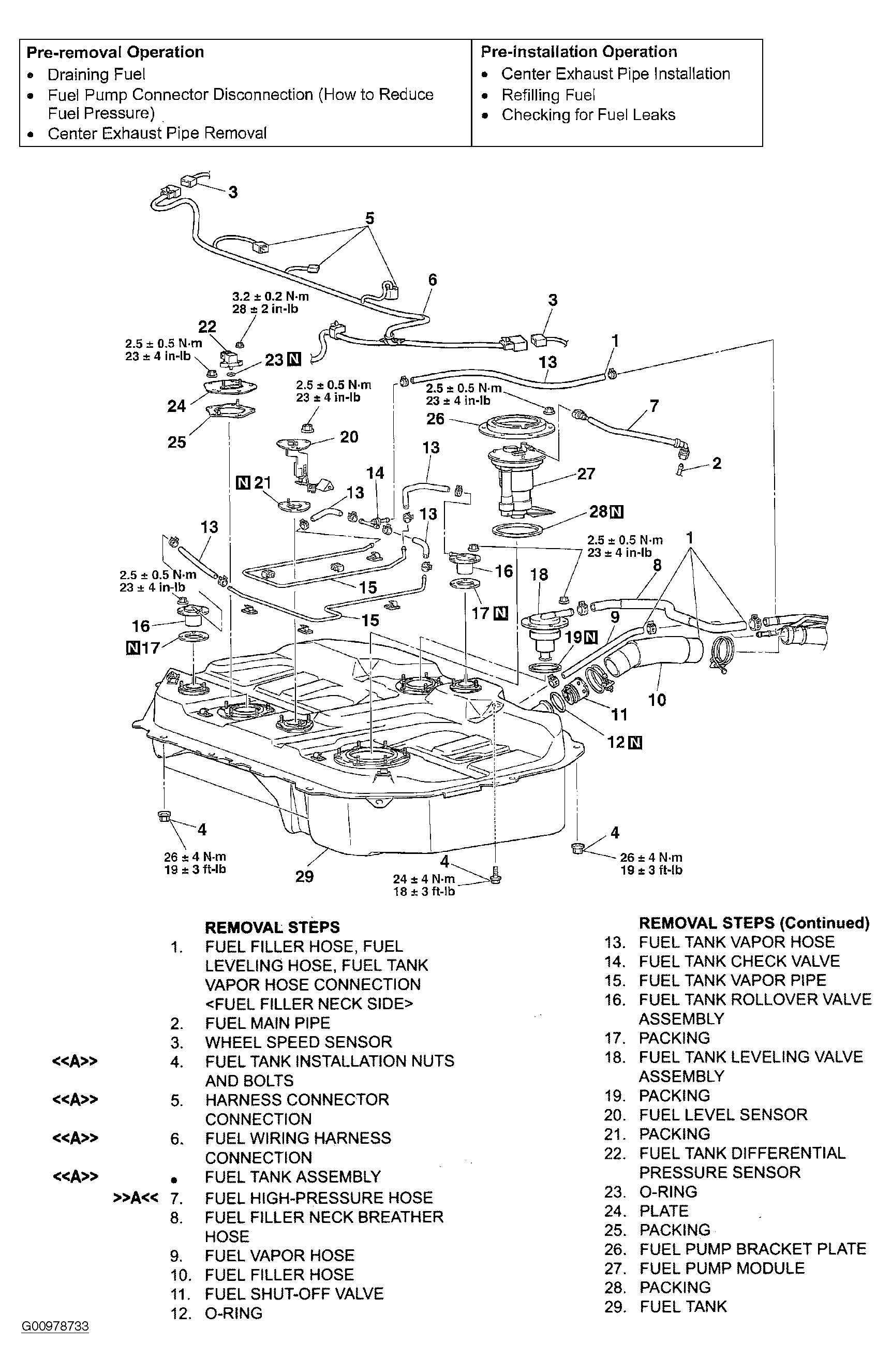

Fig 1: Removing And Installing Fuel Tank (1 Of 2)
G00978733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

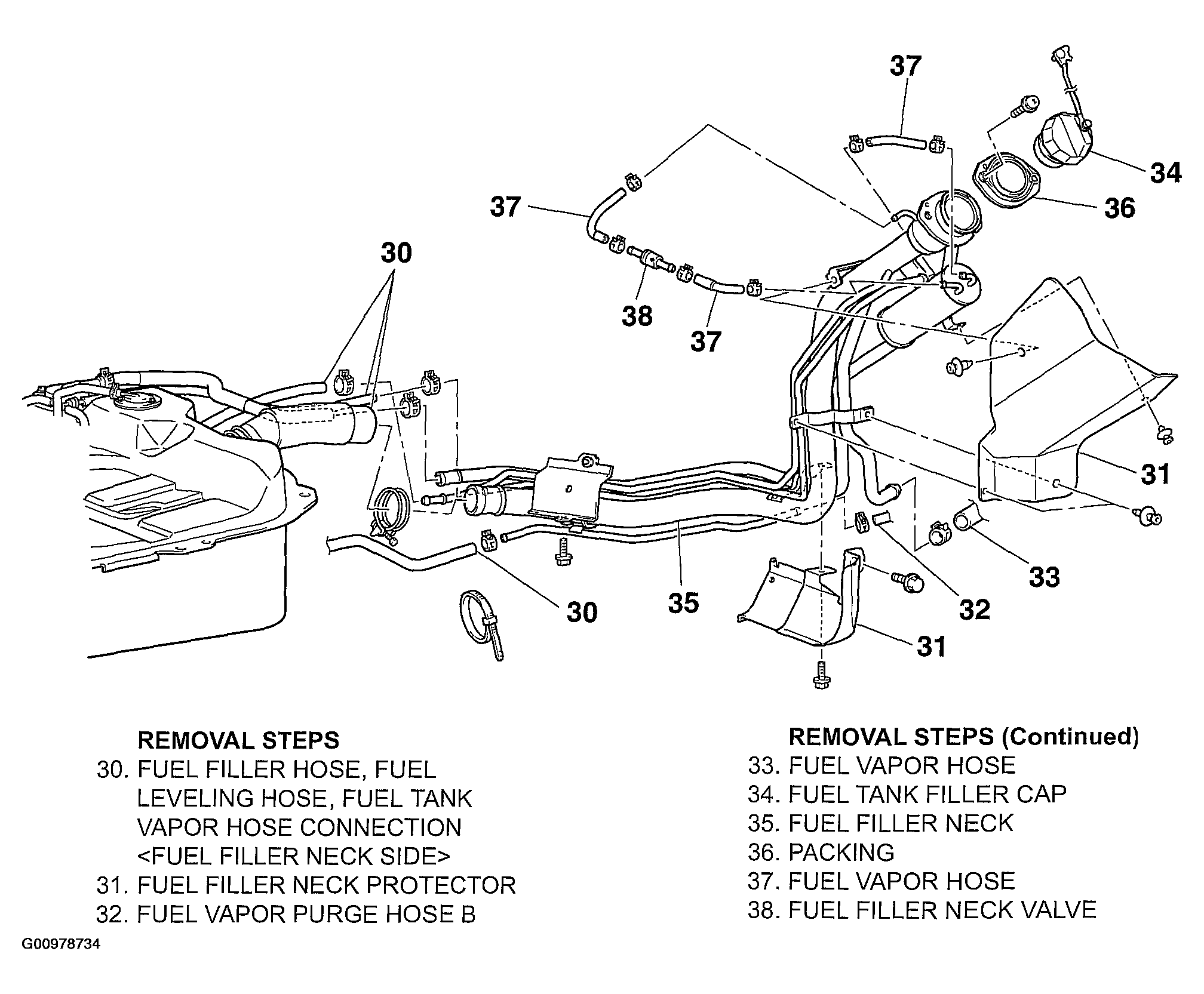

Fig 2: Removing And Installing Fuel Tank (2 Of 2)
G00978734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
