Fuel Pump Module Disassembly And Assembly: Notes

NOTE: For removal and installation, refer to FUEL PUMP MODULE REPLACEMENT .

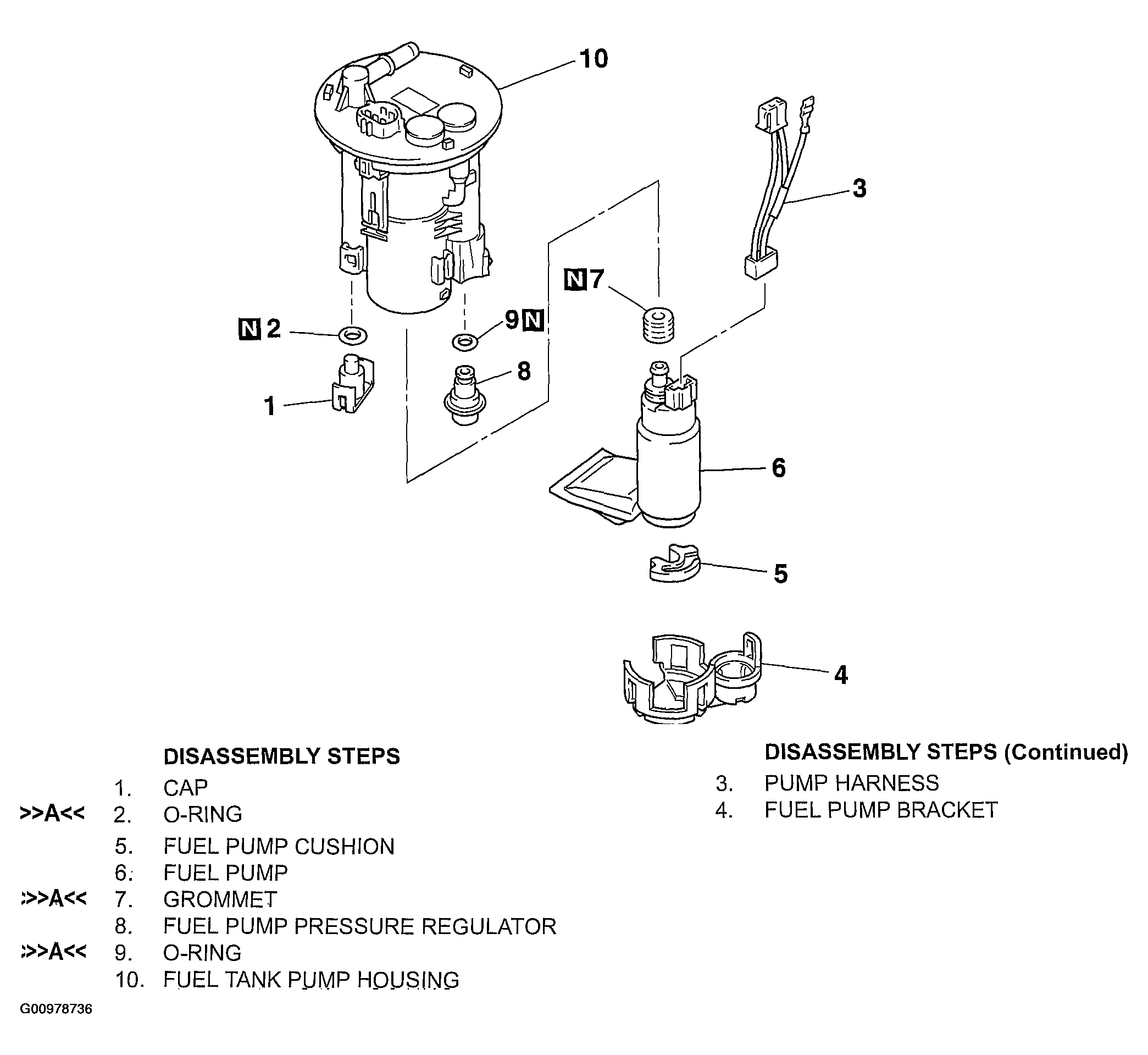

Fig 1: Disassembling And Assembling Fuel Pump Module

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
