Component Location

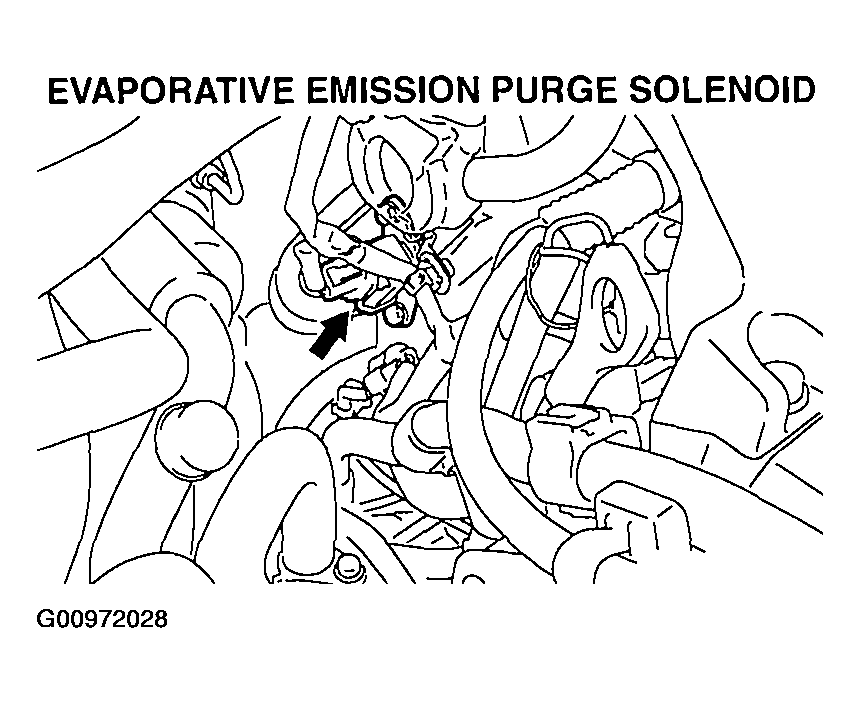

Fig 1: Identifying Evaporative Emission Purge Solenoid Location
G00972028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

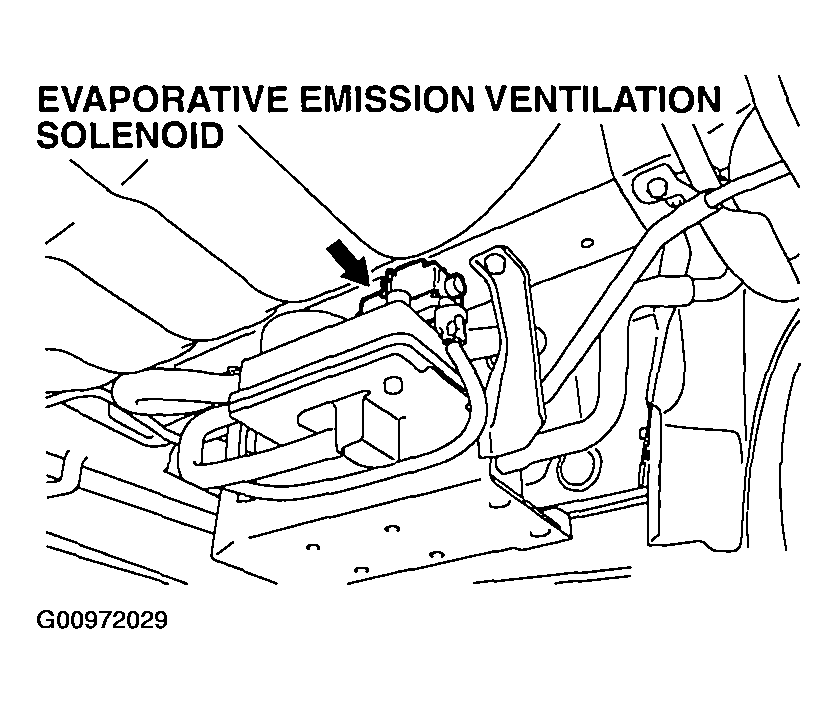

Fig 2: Identifying Evaporative Emission Ventilation Solenoid Location
G00972029Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
