Mitsubishi
>>
2004
>>
Lancer Sportback LS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System - SPORTBACK
>>
Crankshaft Position Sensor
>>
Removal And Installation
Removal And Installation

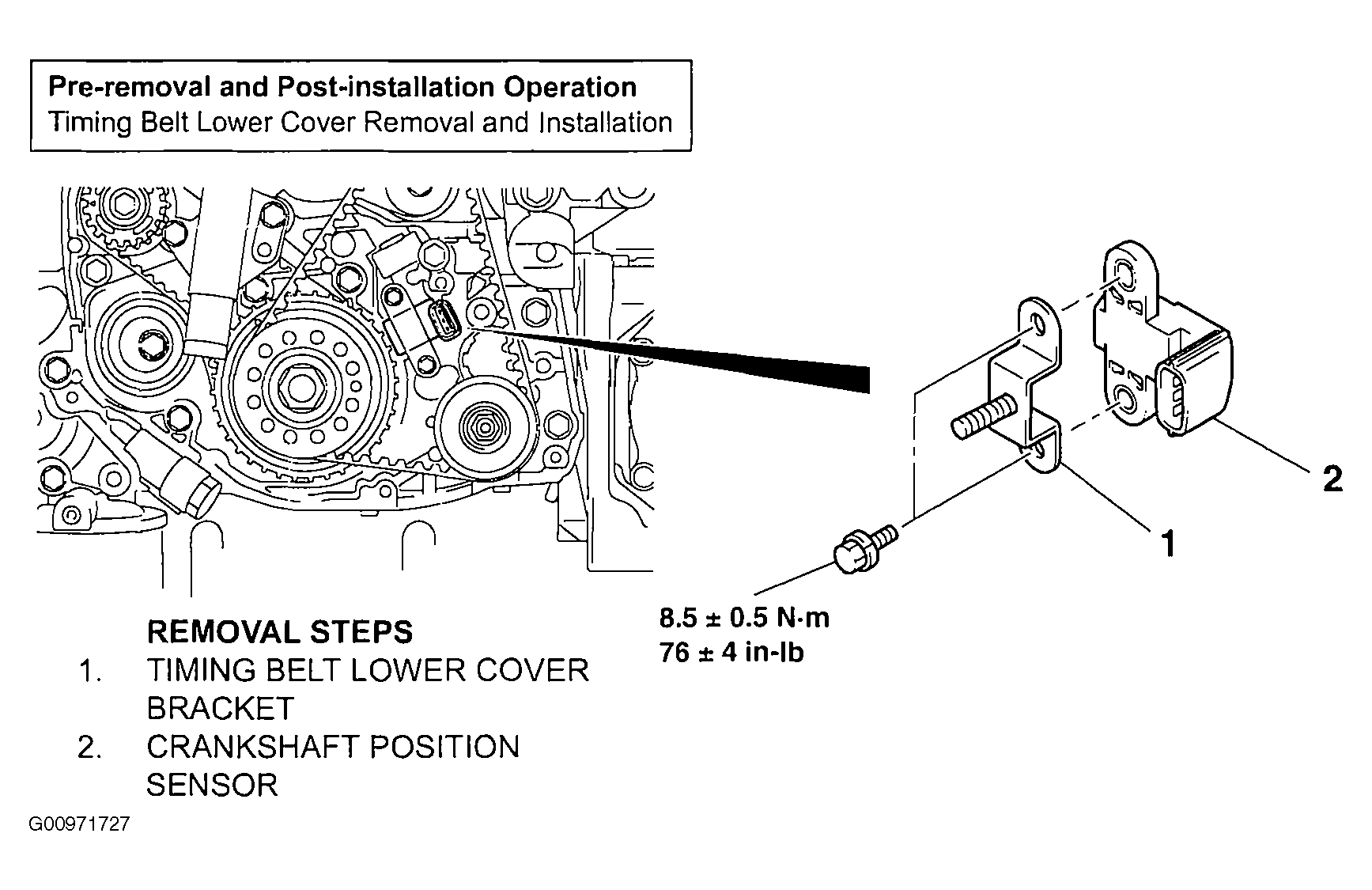

Fig 1: Removing And Installing Crankshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
