Lancer Sportback LS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System - SPORTBACK
>>
Camshaft Position Sensor
>>
Removal And Installation
Removal And Installation

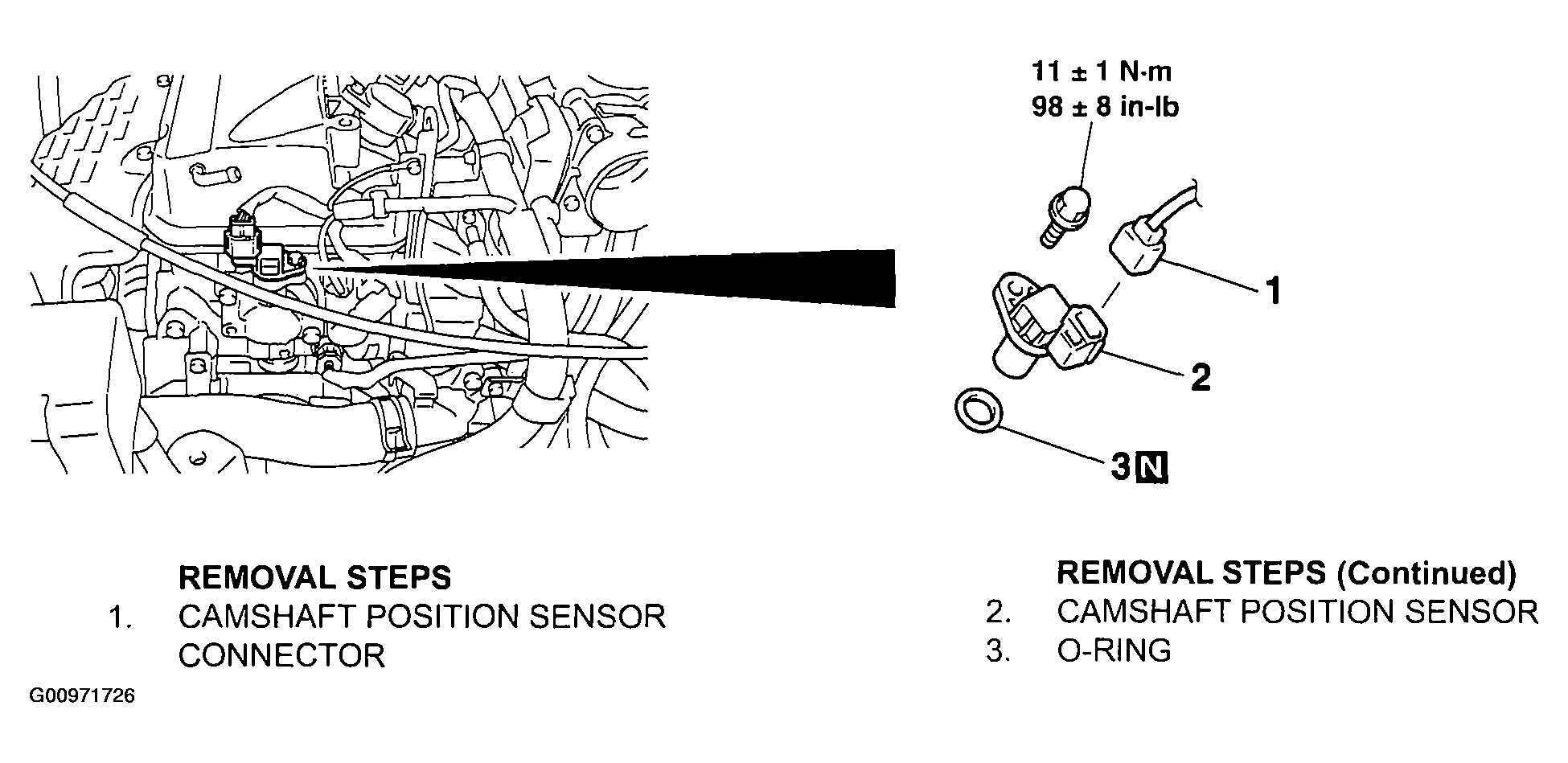

Fig 1: Removing And Installing Camshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
