Disassembly And Assembly

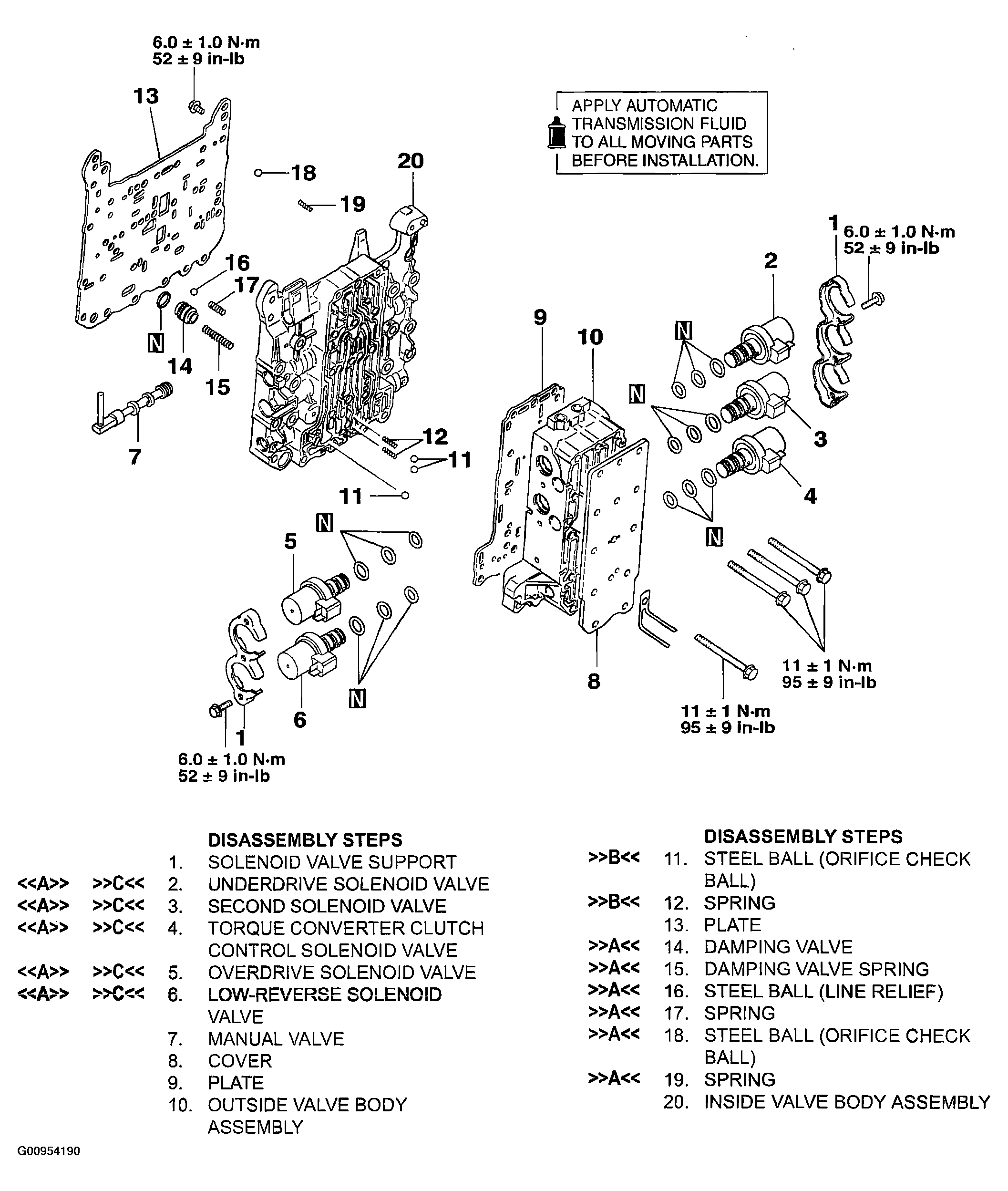

Fig 1: Exploded View Of Valve Body Components (1 Of 3)
G00954190Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

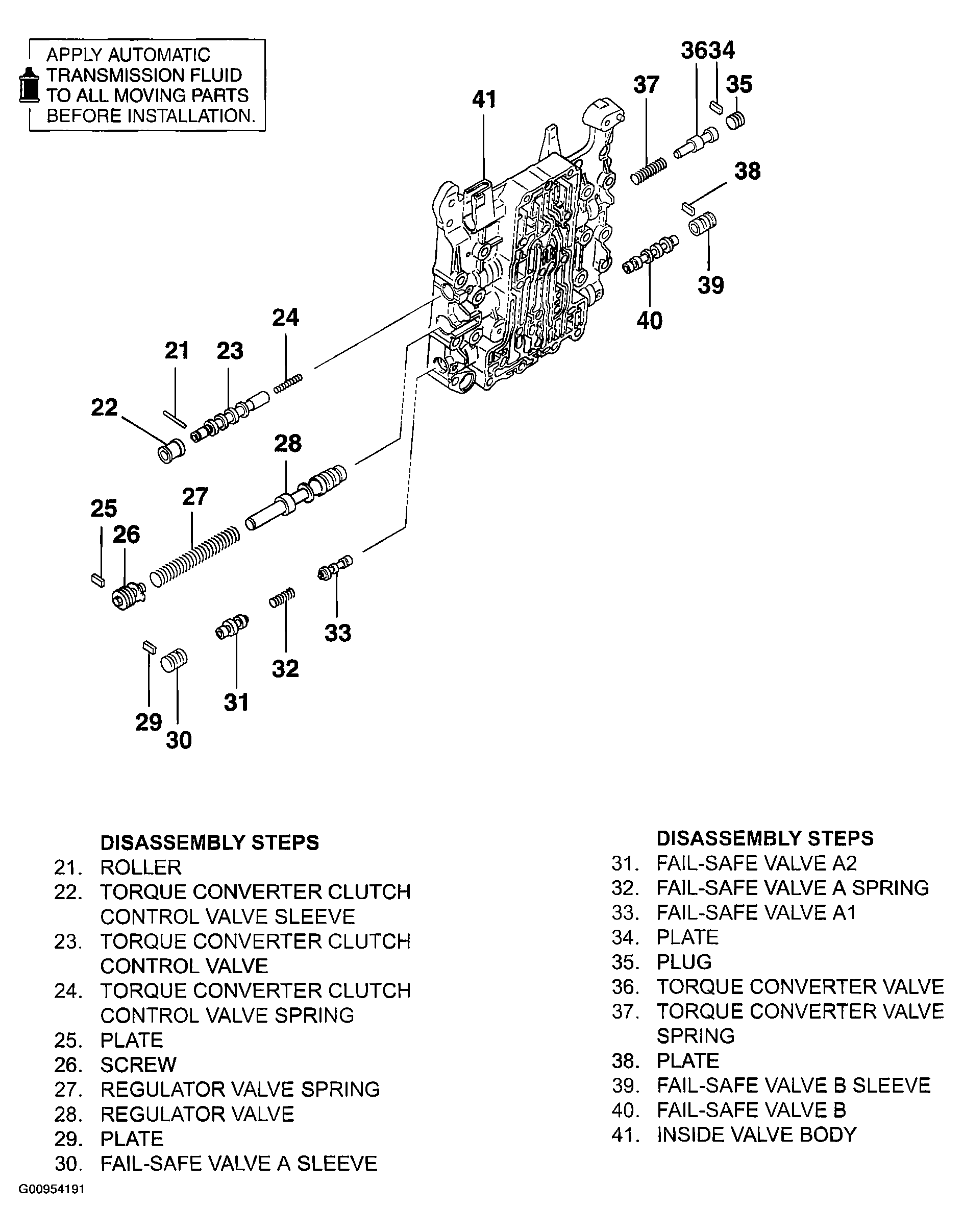

Fig 2: Exploded View Of Valve Body Components (2 Of 3)
G00954191Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

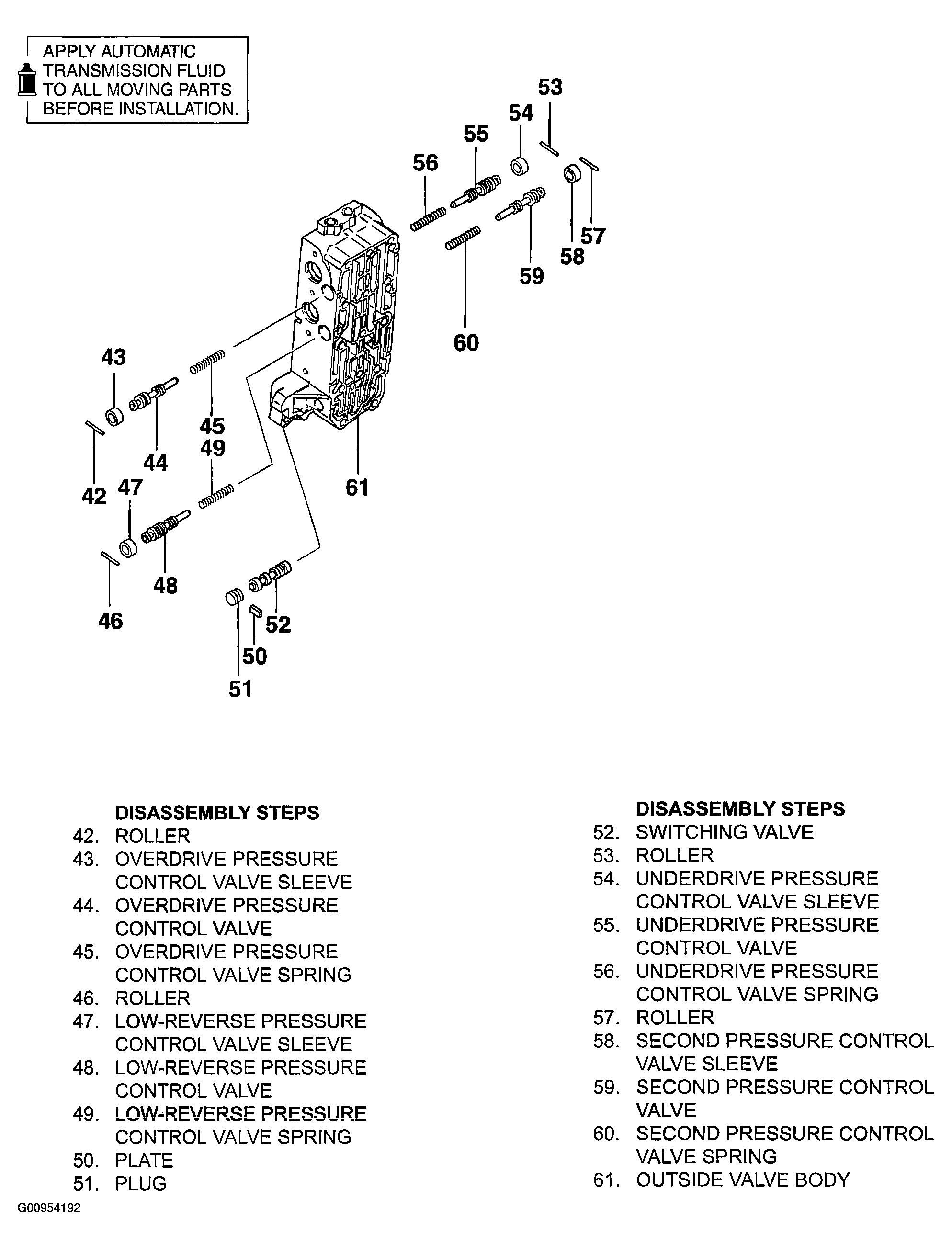

Fig 3: Exploded View Of Valve Body Components (3 Of 3)
G00954192Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
