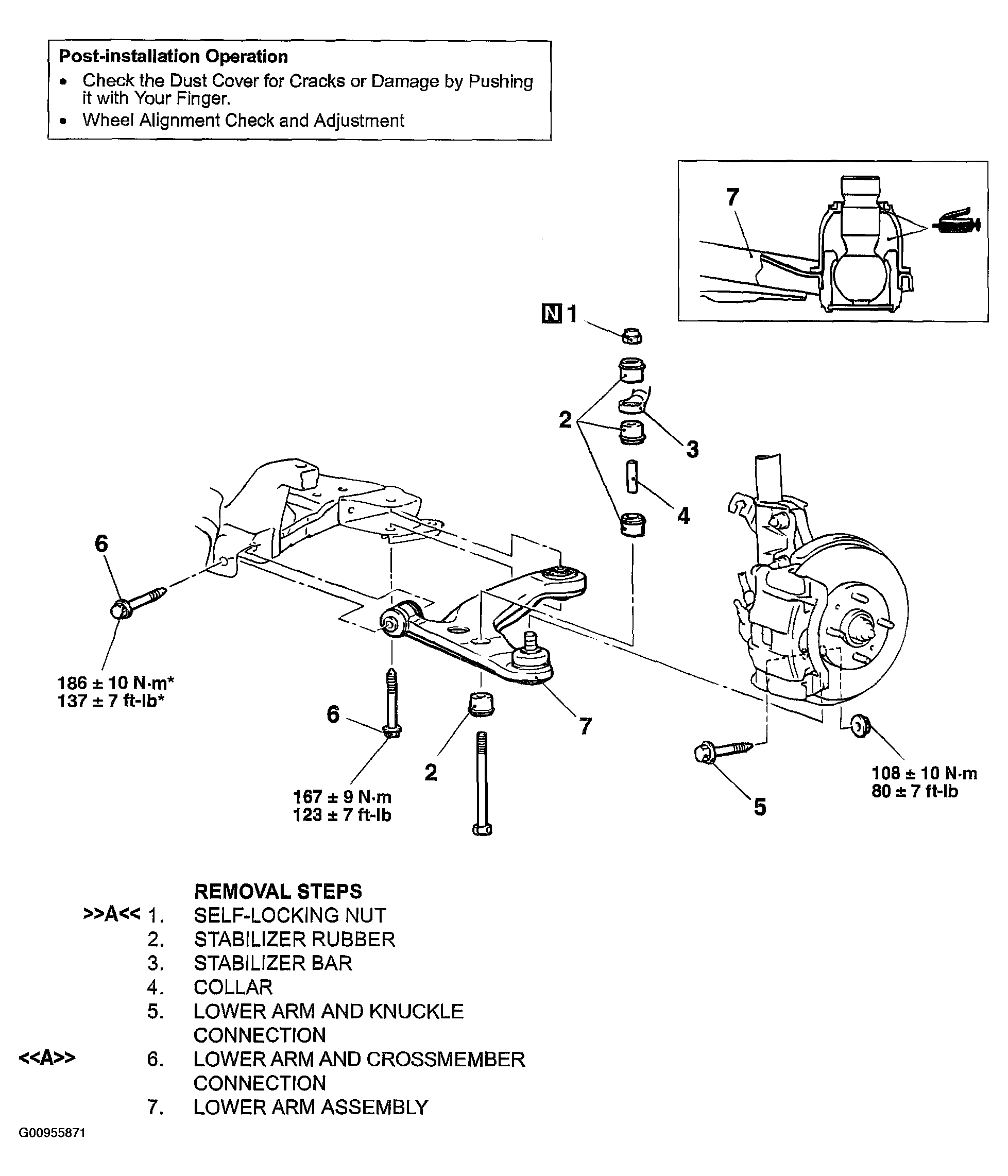

Removal And Installation: Notes
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.
Required Special Tools:
- MB991006: Preload Socket
- MB990800: Ball Joint Remover and Installer
- MB990883: Rear suspension bushing arbor
- MB990974: Rear wheel bearing and Installer joint
- MB990887: Ring
- MB990890: Rear suspension bushing base
