Fuel Supply - Except Evolution & SPORTBACK: General Description

• The fuel tank is located under the floor of the rear seats to provide increased protection and a more luggage space.
• A fuel tank rollover valve assembly has been adopted to prevent fuel from leaking out in case of a collision.
• A fuel pump module, including fuel pump, fuel filter and reservoir cup, has been adopted to lighten weight and improve serviceability.

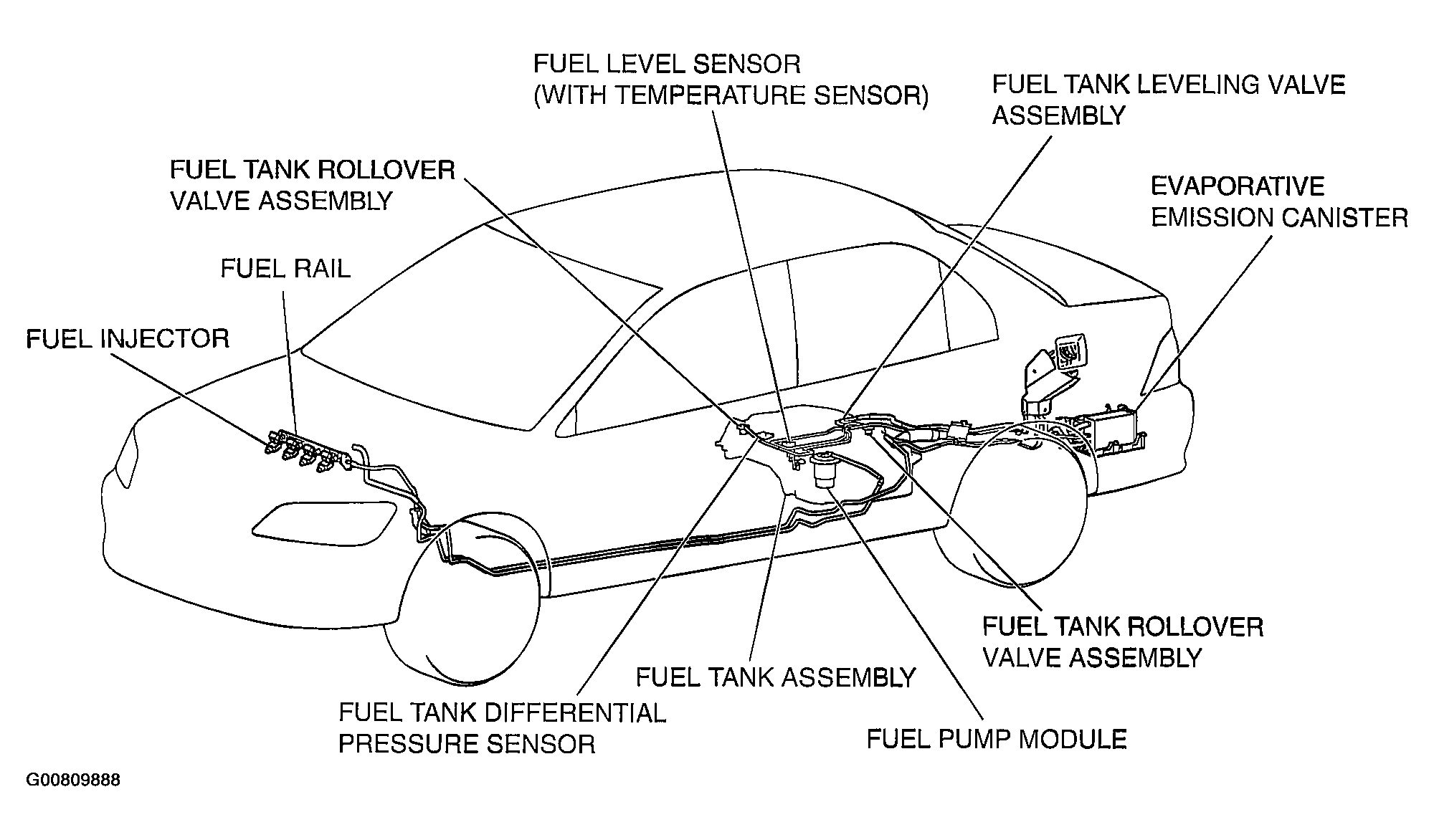

Fig 1: Identifying Fuel Supply

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
