Radiator Fan Motor

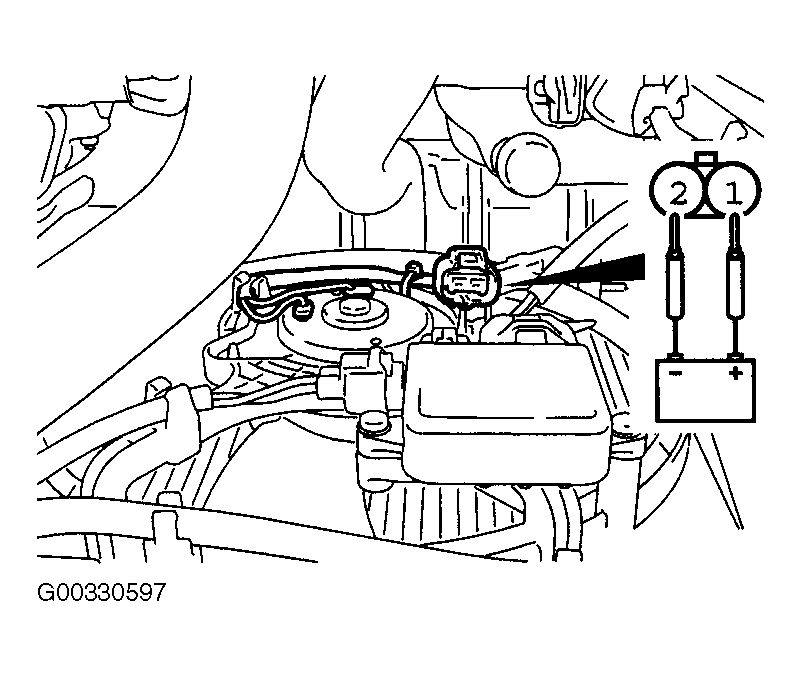

Remove the radiator fan motor connector. Connect battery voltage to terminal No. 1 and ground terminal No. 2 and see if radiator fan operates. See Fig 1 . Also check that there are not abnormal sounds coming from the radiator fan motor. If radiator fan motor is defective, replace it.
