Repair and Diagnosis
>>
Steering
>>
Power Steering - Evolution
>>
Special Tools
Special Tools

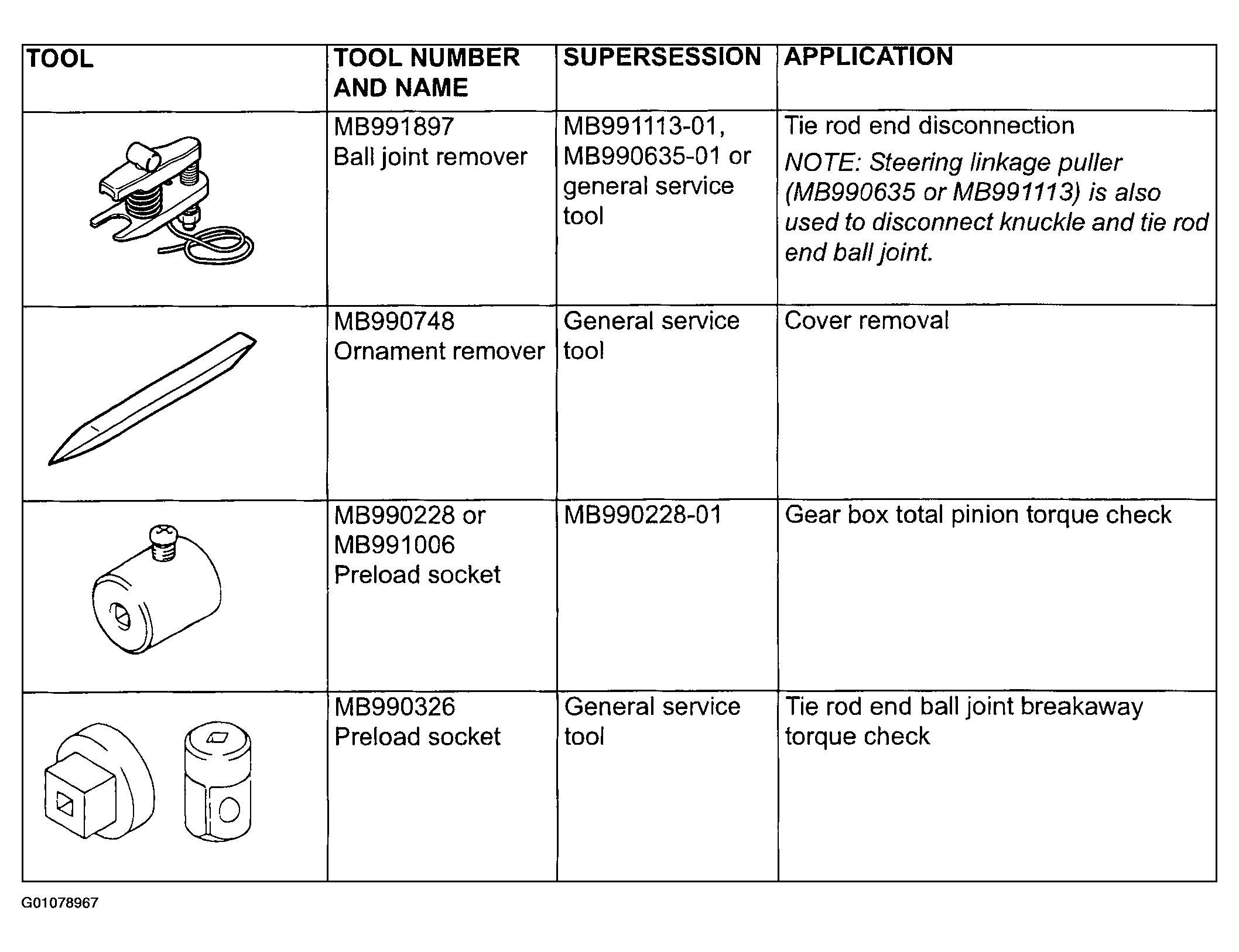

Fig 1: Special Tools Description Chart (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

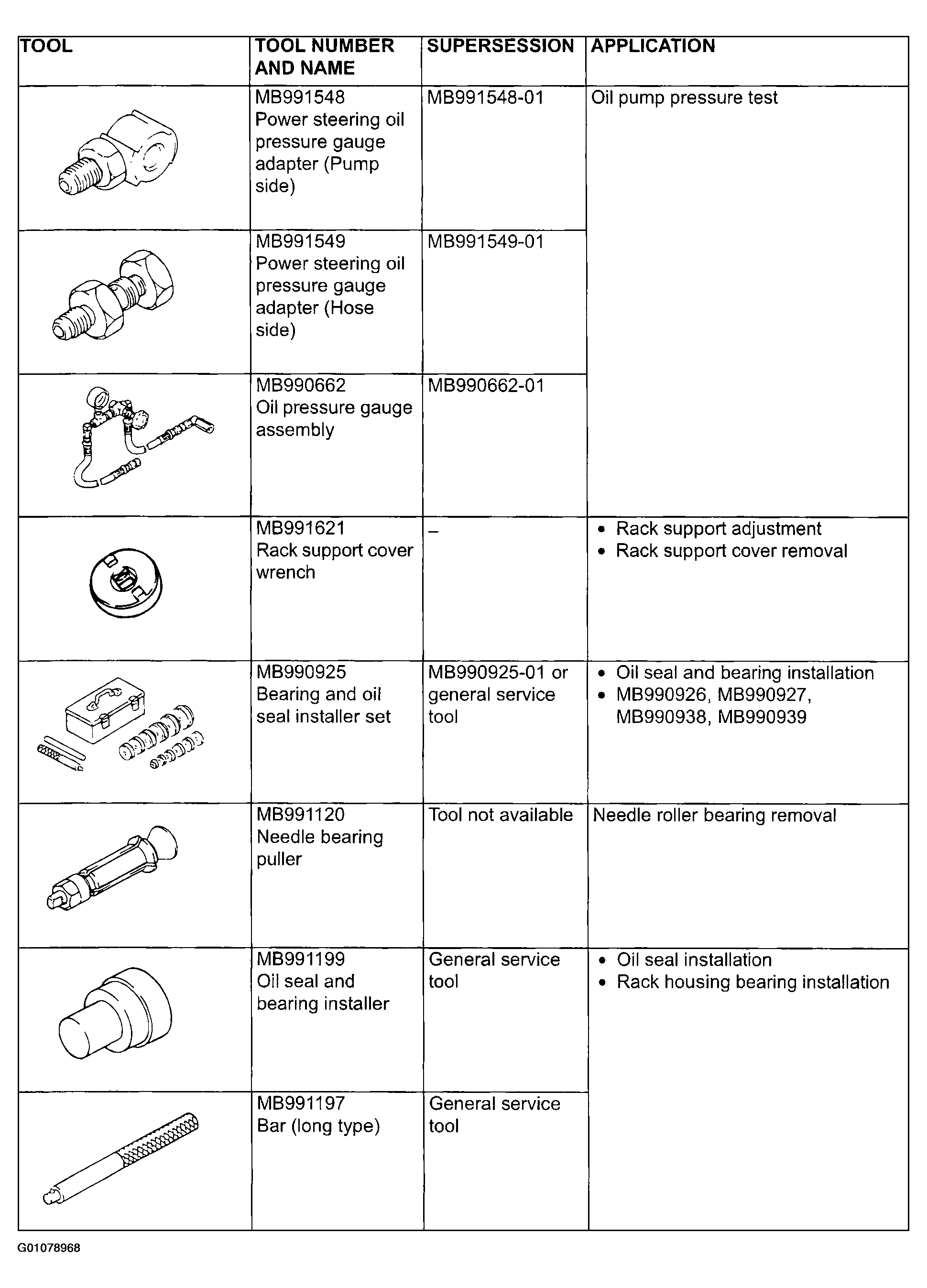

Fig 2: Special Tools Description Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

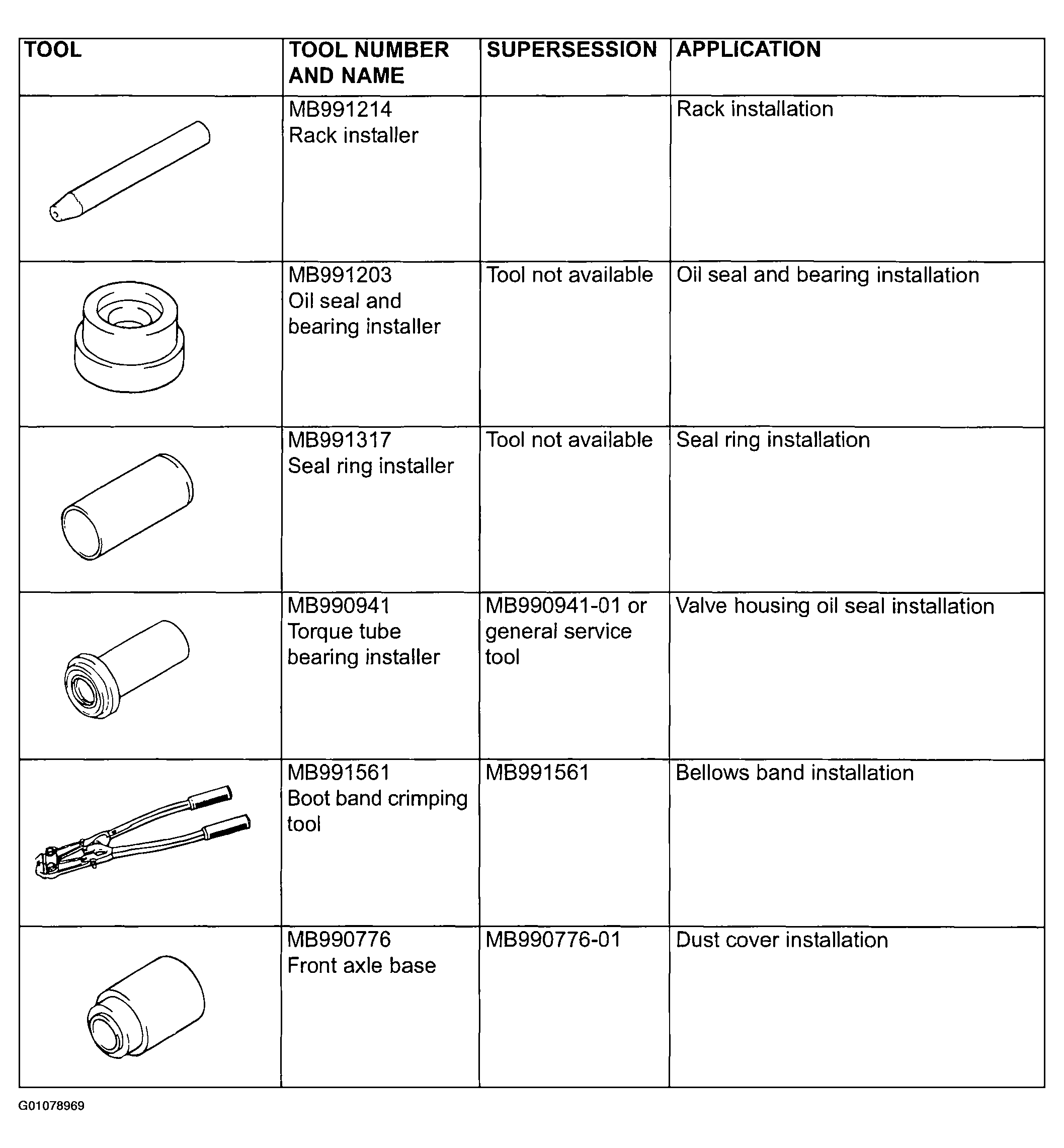

Fig 3: Special Tools Description Chart (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
