Home >> Mitsubishi >> 2004 >> Lancer Evolution >> Repair and Diagnosis >> Steering >> Power Steering - Evolution >> Power Steering Oil Pump Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

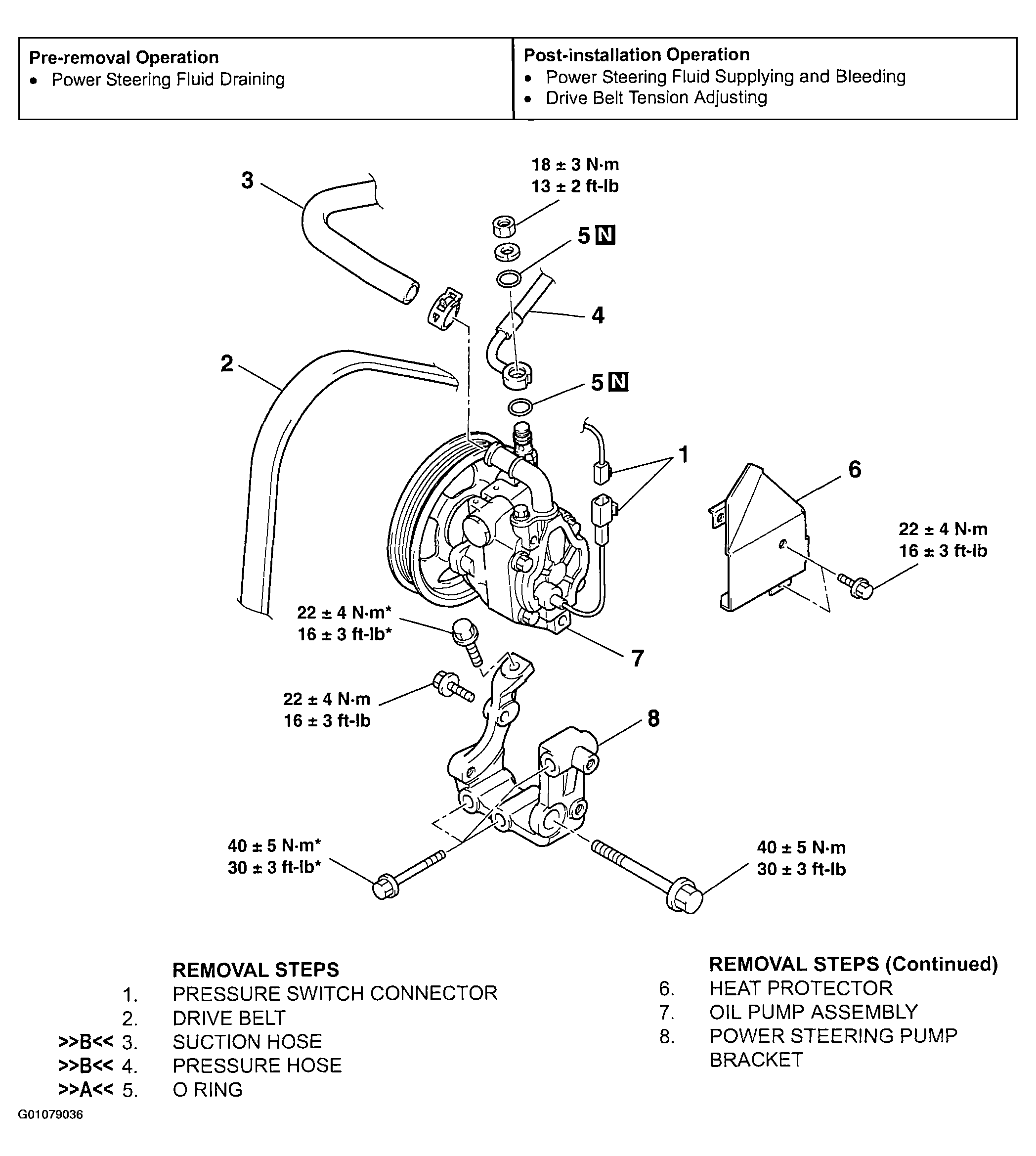

Fig 1: Removing Power Steering Oil Pump Assembly

G01079036

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
