Home >> Mitsubishi >> 2004 >> Lancer Evolution >> Repair and Diagnosis >> Steering >> Power Steering - Evolution >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

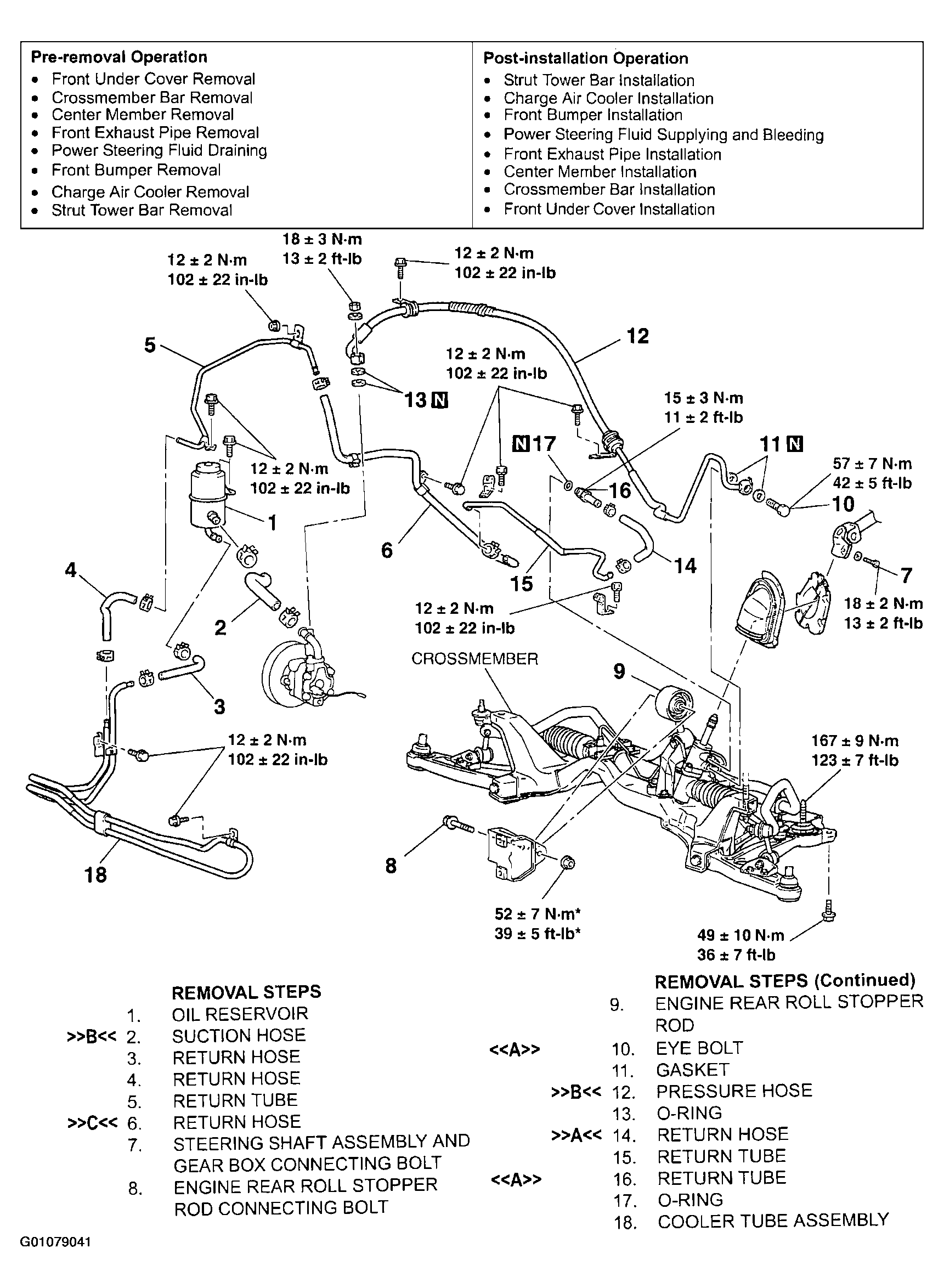

Fig 1: Removing Power Steering Hoses

G01079041

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
